Mounting support ‒ MT3 3ACO
Item no. 7407712 | EAN 4012195112839
- Product description
-

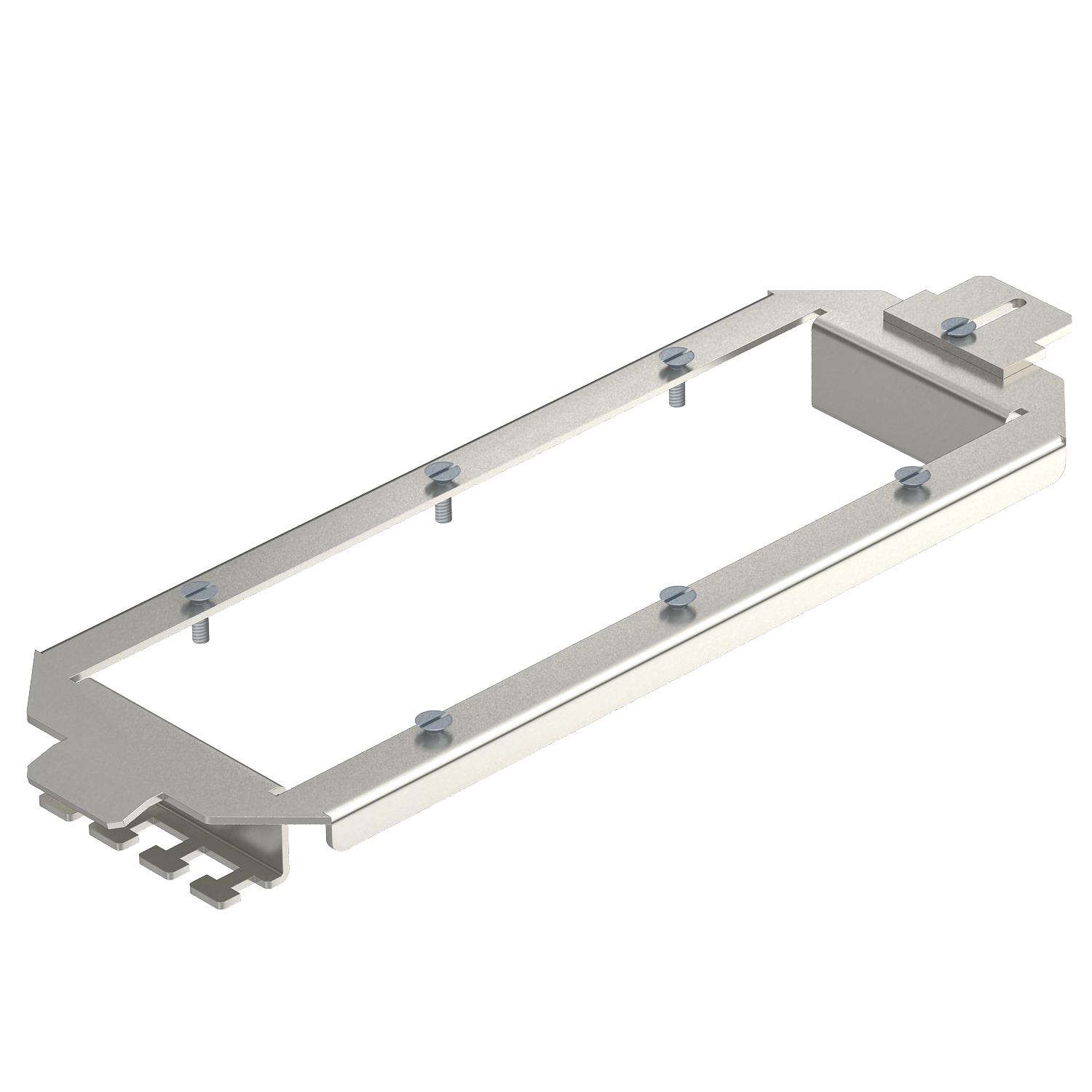

Product descriptionMounting support for installation of two data modules of type ACO (only with Insta Kit UF 60 from AMP Tyco). Use instead of a GB2 mounting box.
-
- Technical data
-
Technical data

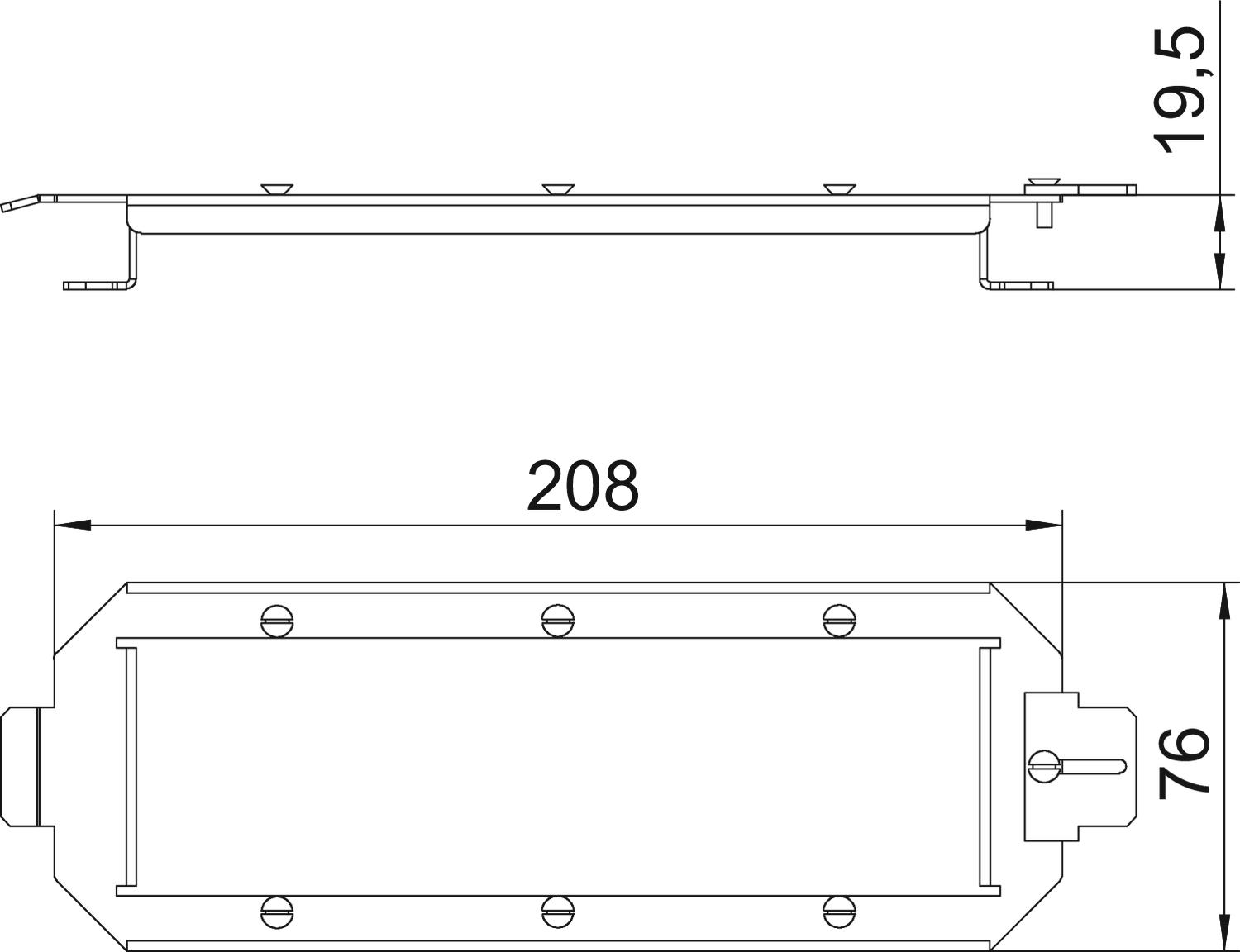

CO2 Footprint (GWP) Cradle-to-Gate 1,4891 kg CO2e / 1 Piece Connection options 3 data modules, type ACO Decouplable no Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Length 208 mm Lowerable to be flush-floor no Material Stainless steel 1.4301 Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes With floor covering recess no - All types
- Downloads
-
Data sheet MT3 3ACO / 7407712 , 0.16MB , pdfREACH Declaration of conformity MT3 3ACO / 7407712 , 0.12MB , pdfRoHS Declaration of conformity MT3 3ACO / 7407712 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
