Mounting support ‒ MT4 DBAP2

Item no. 7428233 | EAN 4012195427728

Product description
Product description

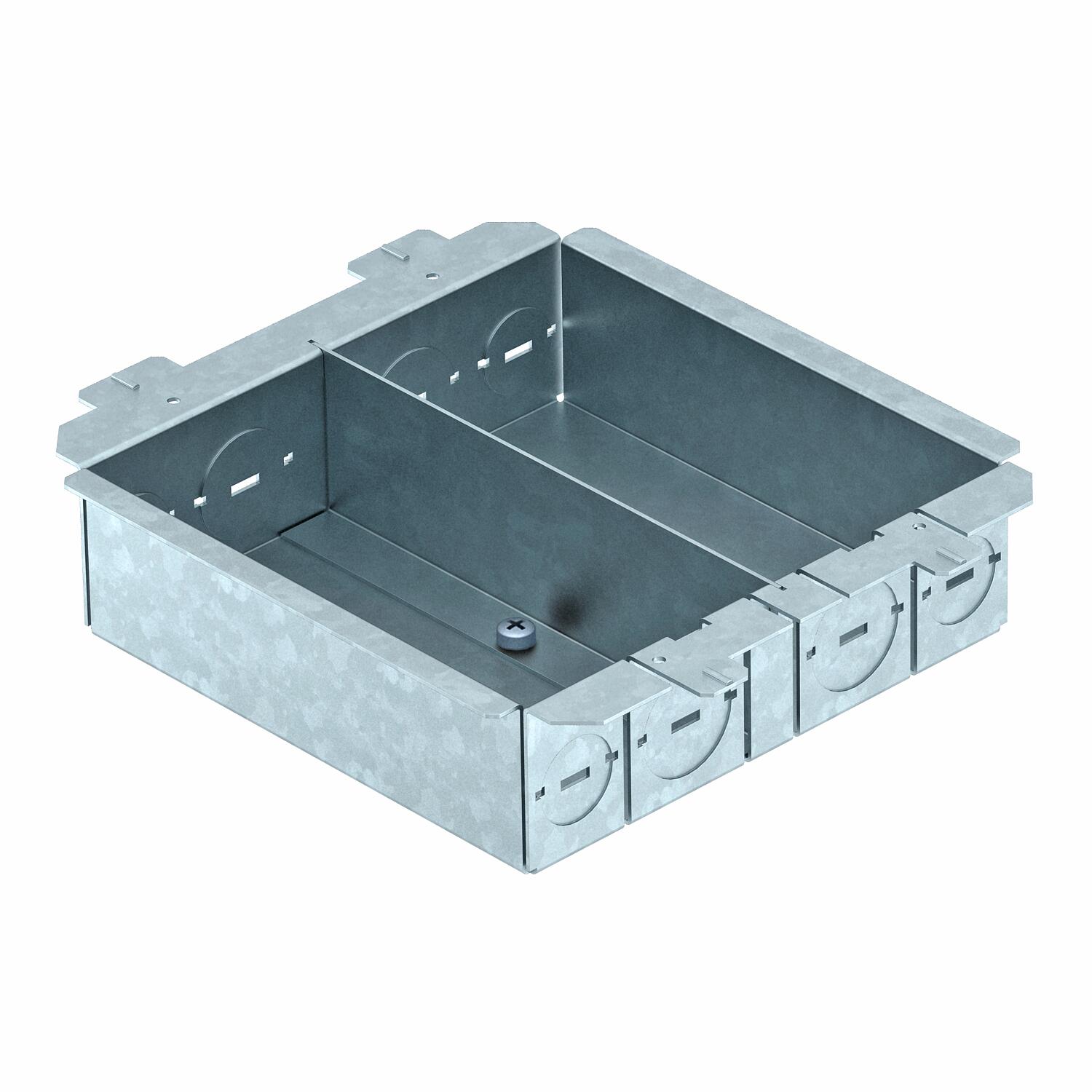

Closed mounting support to accept 2 APMT2 cover plates. The mounting support is fastened below the GES4DB service outlet. Each with 4 knock-out openings M20 and M25 for the mounting of flexible installation hoses.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 1,6162 kg CO2e / 1 Piece
Device type Miscellaneous

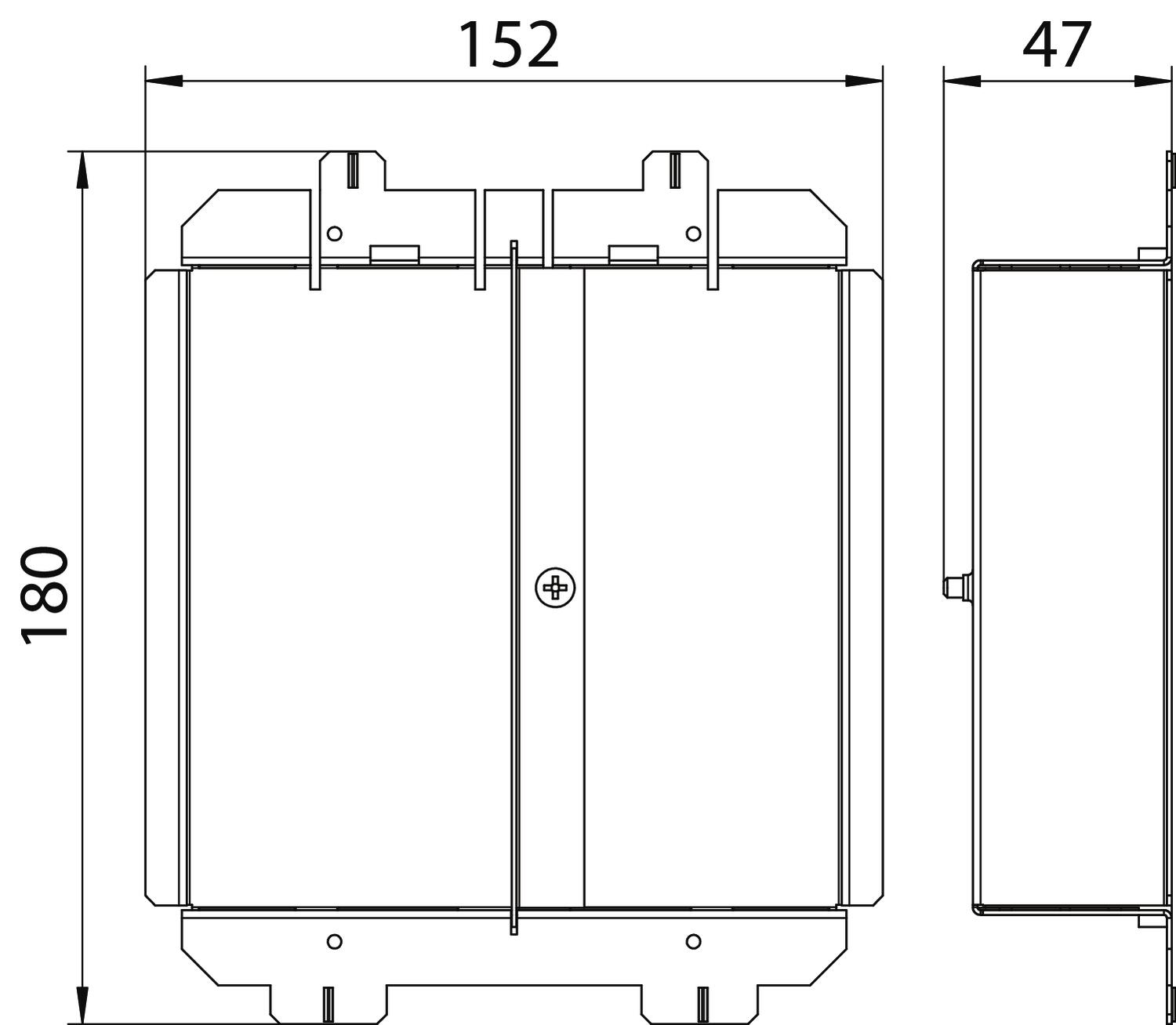

Dimension 180x137x41
Heavy-duty version no
Installation technology Miscellaneous
Labelling panel no
Material Steel
No. of entries 8
Number of installable devices 4
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Surface Strip galvanized
All types

All types

Types Item no. Quantity SSU
MT4 DBAP2 7428233
1 piece
