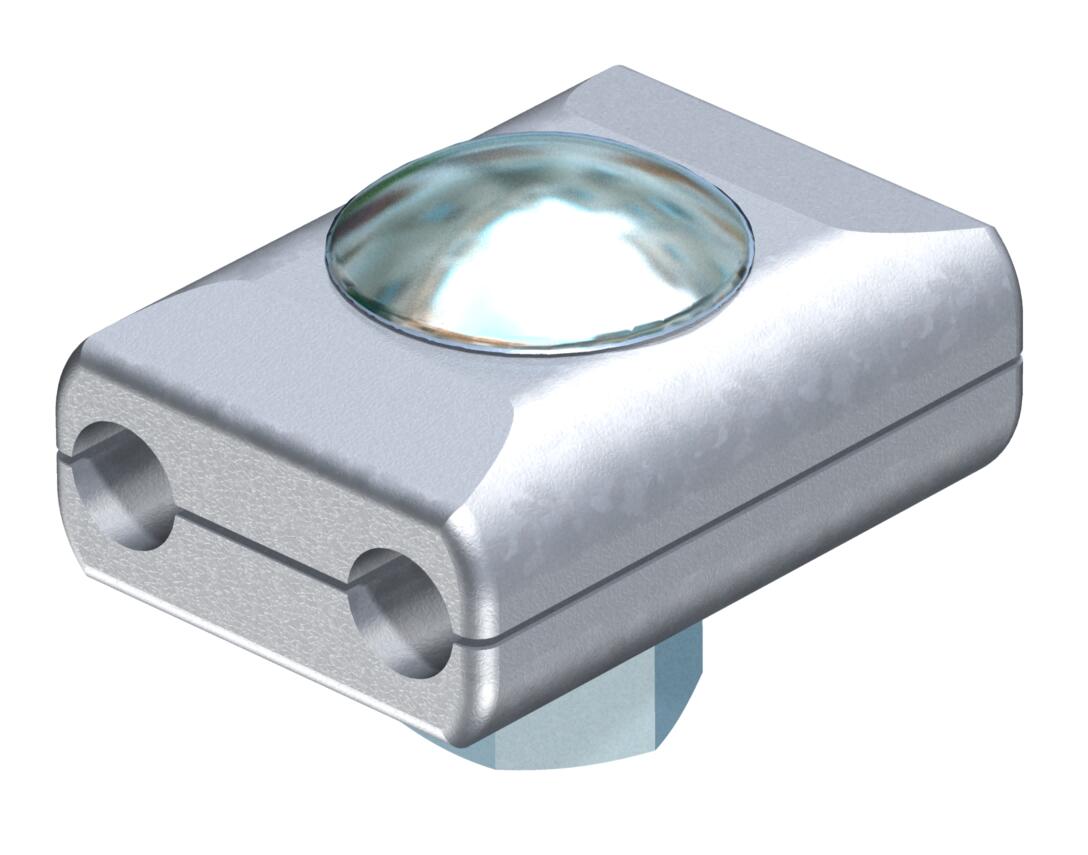

Parallel connector Rd 8 mm, M10 x 30
Item no. 5315700 | EAN 4012195419839
- Product description
-
Product description• With flat, round bolt M10 x 30 and hexagonal nut, hot-dip galvanised steel
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,5314 kg CO2e / 1 Piece Dimension 8x8mm Fit Rd 8 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Die-cast zinc Round conductor diameter, conductor 1, max. 8 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 8 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8 / Rd 8 Surface Electrogalvanized Type of connector Parallel connector Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 260 8 / 5315700 , 0.16MB , pdfEU declaration of conformity 260 8 / 5315700 , 0.06MB , pdfREACH Declaration of conformity 260 8 / 5315700 , 0.12MB , pdfRoHS Declaration of conformity 260 8 / 5315700 , 0.13MB , pdfMounting instructions Mounting instructions, 260 8 parallel connector , 1.00MB , pdf
