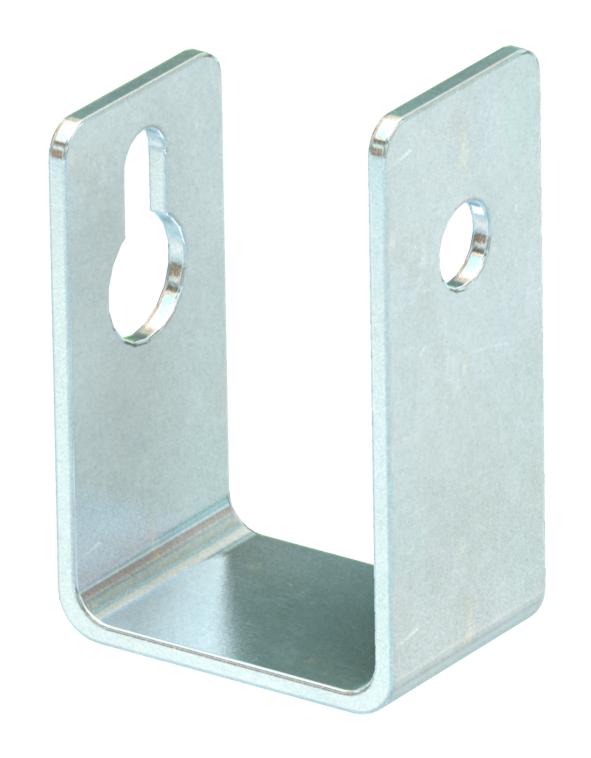

Separating bracket for wall mounting
Item no. 7215312 | EAN 4012196896110
- Product description
-
Product description
Separating bracket as installation aid when mounting the PYROLINE® Con D BSK, type BSK 090511 and type BSK 120511, fire protection duct on the wall. Mounting of the bracket directly on the fastening anchors of the fire protection duct.
-
- Technical data
-
Technical data
Duct height, internal 50 mm Duct width, internal 110 mm Fastening type Screw-on Material Steel Surface Strip galvanized Dimensions

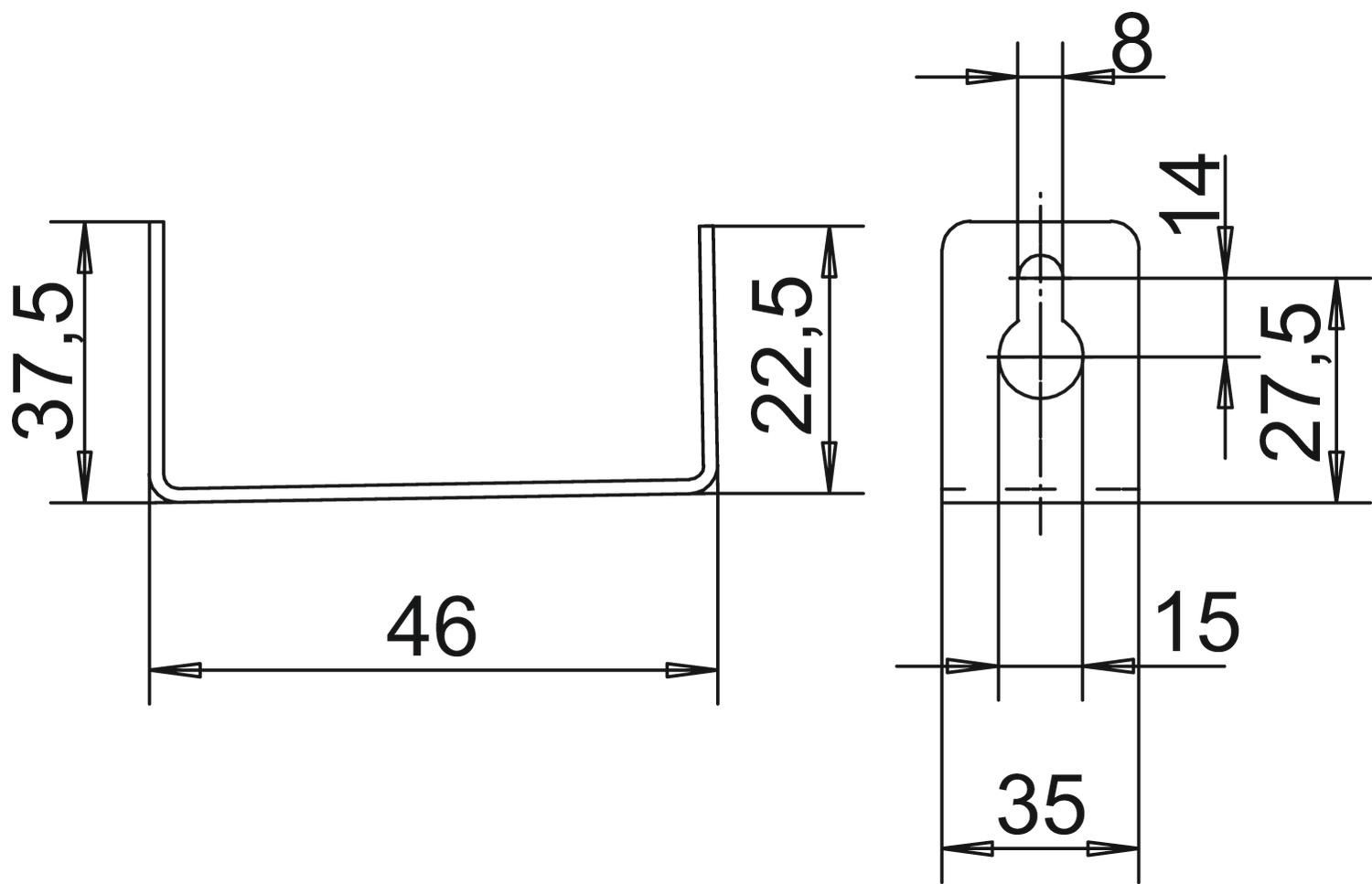

Dimension A 27,5 mm Dimension B 46 mm Dimension h 22,5 mm Dimension H 37,5 mm - All types
- Downloads
-
Data sheet BSKD-W0511 / 7215312 , 0.38MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfREACH Declaration of conformity BSKD-W0511 / 7215312 , 0.27MB , pdfRoHS Declaration of conformity BSKD-W0511 / 7215312 , 0.28MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
