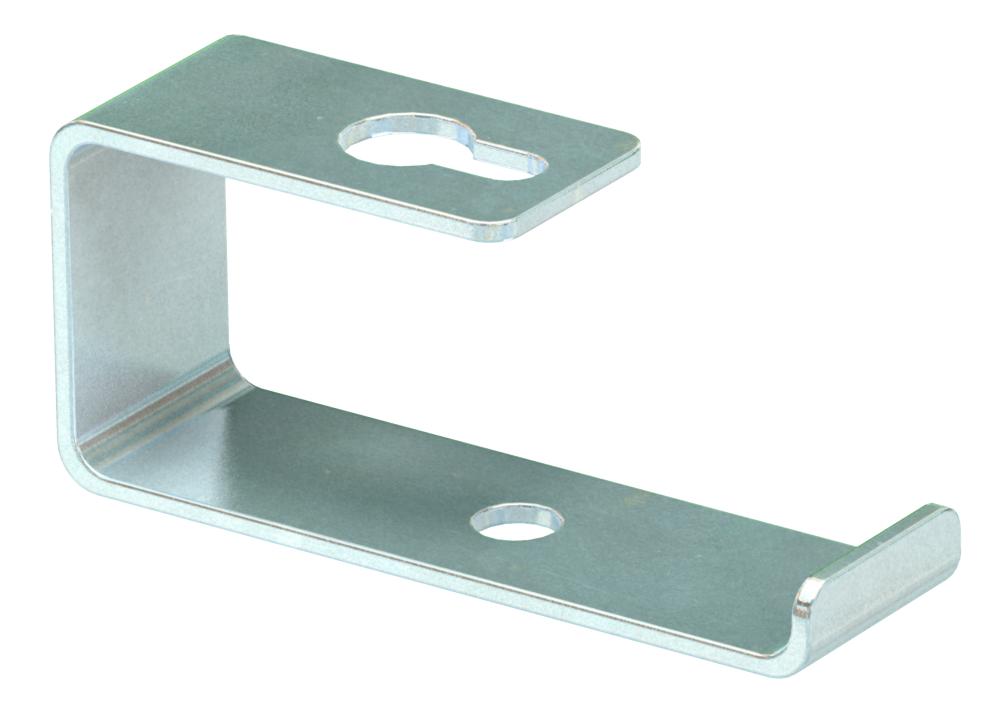

Separating clamp for ceiling mounting

Item no. 7215356 | EAN 4012196896356

46 mm
18 mm
Product description

Product description

Separating clamp as installation aid when mounting the PYROLINE® Con D BSK, type BSK 090511 and type BSK 120511, fire protection duct on the ceiling. Mounting of the clamp directly on the fastening anchors of the fire protection duct.


  • Fire protection duct for ceiling mounting
  • Fire resistance class I90
  • Function maintenance class E30
  • Fire resistance class I120
  • Function maintenance class E90
Technical data

Technical data

Duct height, internal 50 mm
Duct width, internal 110 mm
Fastening type Screw-on
Material Steel
Surface Strip galvanized

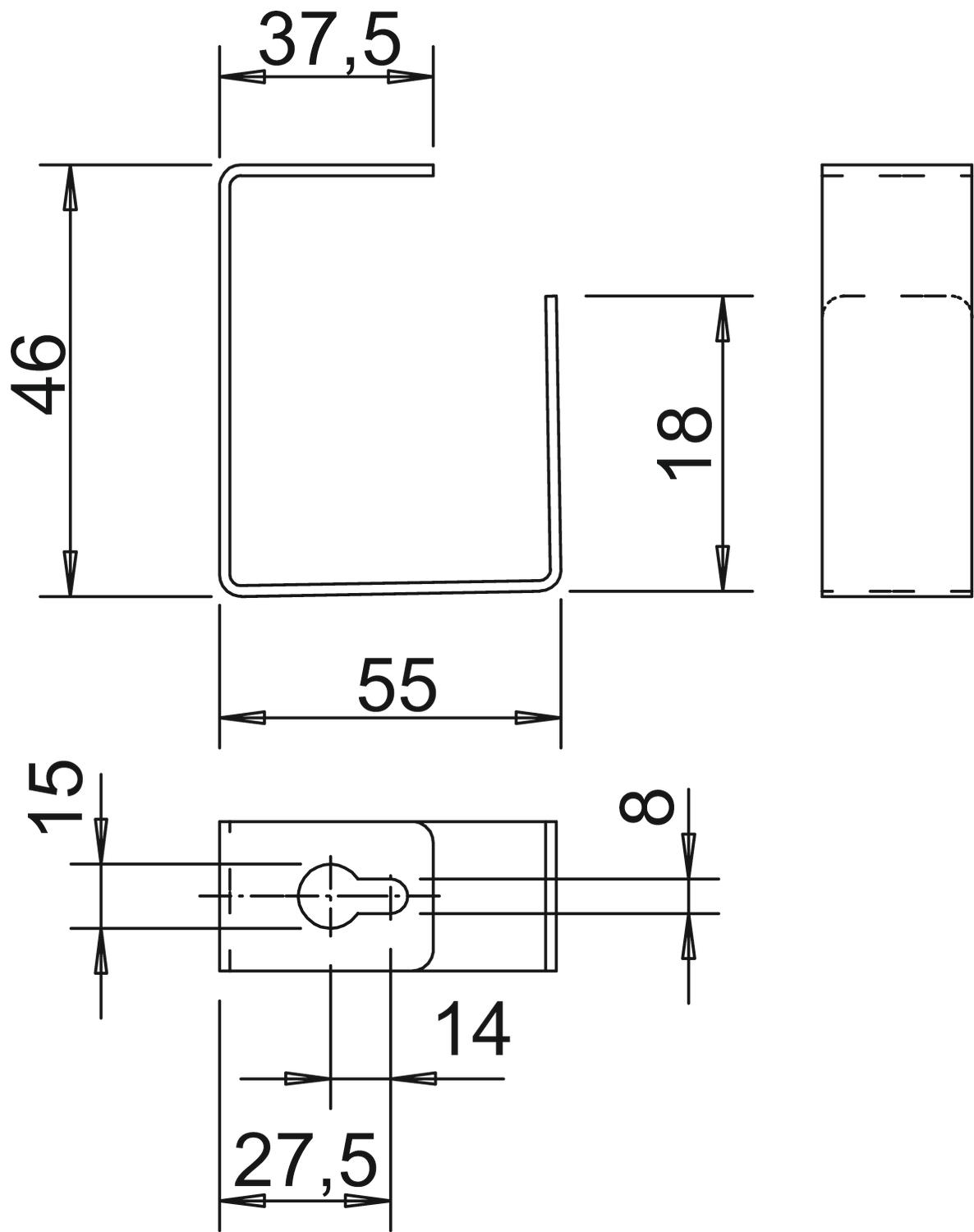

Dimensions

Dimension A 27,5 mm
Dimension b 37,5 mm
Dimension B 55 mm
Dimension h 18 mm
Dimension H 46 mm
All types

All types

Types Dimension A Dimension B Dimension b Dimension H Dimension h Item no. Quantity SSU
BSKD-B0511 27.5 mm 55 mm 37.5 mm 46 mm 18 mm 7215356
25 piece
BSKD-B0521 52.5 mm 105 mm 62.5 mm 46 mm 18 mm 7215362
25 piece
Downloads

Download
Download
Download
Download

REACH Declaration of conformity BSKD-B0511 / 7215356 , 0.27MB , pdf
Download
RoHS Declaration of conformity BSKD-B0511 / 7215356 , 0.28MB , pdf
Download

Download

No invitation to tender text is available for this product.
