Separating clamp for ceiling mounting
Item no. 7215374 | EAN 4012196896530
- Product description
-
Product description
Separating clamp as installation aid when mounting the PYROLINE® Con D BSK, type BSK 091026 and type BSK 121026, fire protection duct on the ceiling. Mounting of the clamp directly on the fastening anchors of the fire protection duct.
-
- Technical data
-
Technical data
Duct height, internal 105 mm Duct width, internal 260 mm Fastening type Screw-on Material Steel Surface Strip galvanized Dimensions

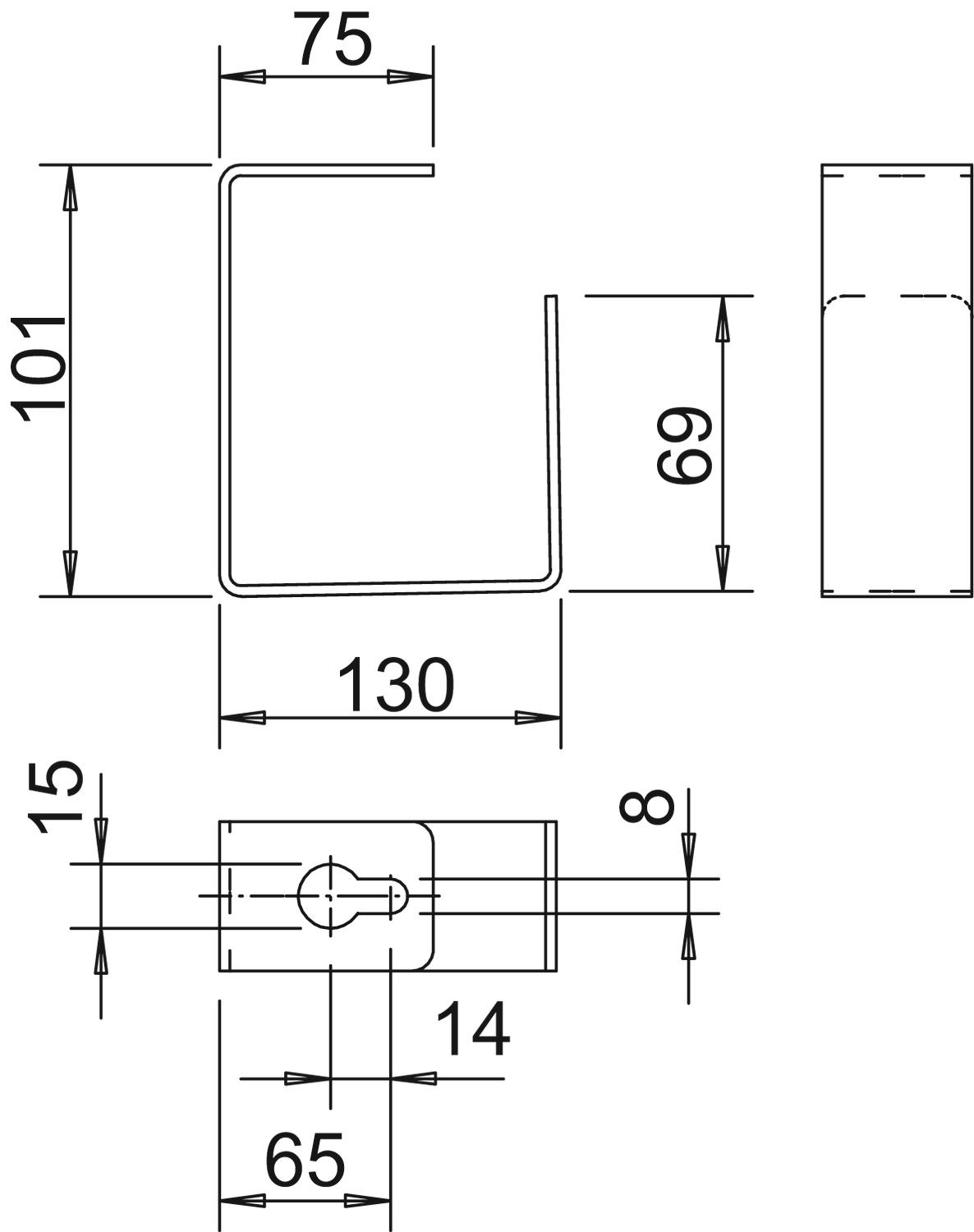

Dimension A 65 mm Dimension b 75 mm Dimension B 130 mm Dimension H 101 mm Dimension h 69 mm - All types
- Downloads
-
Brochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
