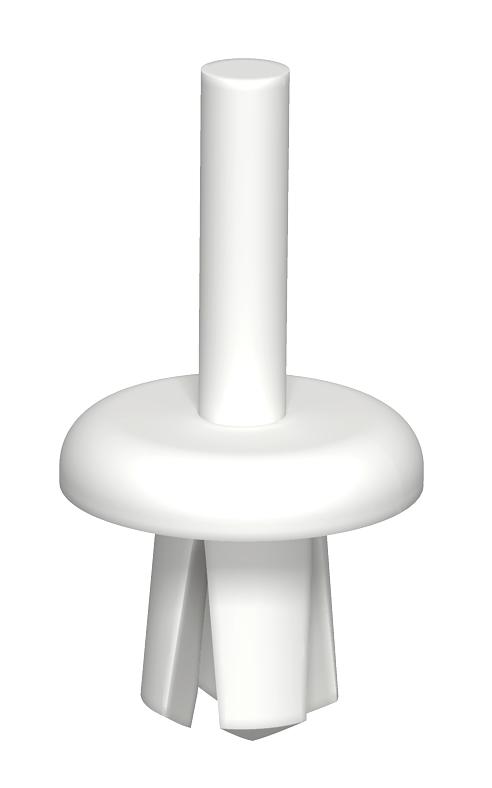

Spreading rivet, KSN 1
Item no. 6178520 | EAN 4012196014279
- Product description
-
Product description
The KNW1 riveting tool should be used for rapid mounting and for the optimum function. Dimension of the drill hole: 4.5 mm.
Total clamping strength: 2.2–4 mm
-
- Technical data
-
Technical data

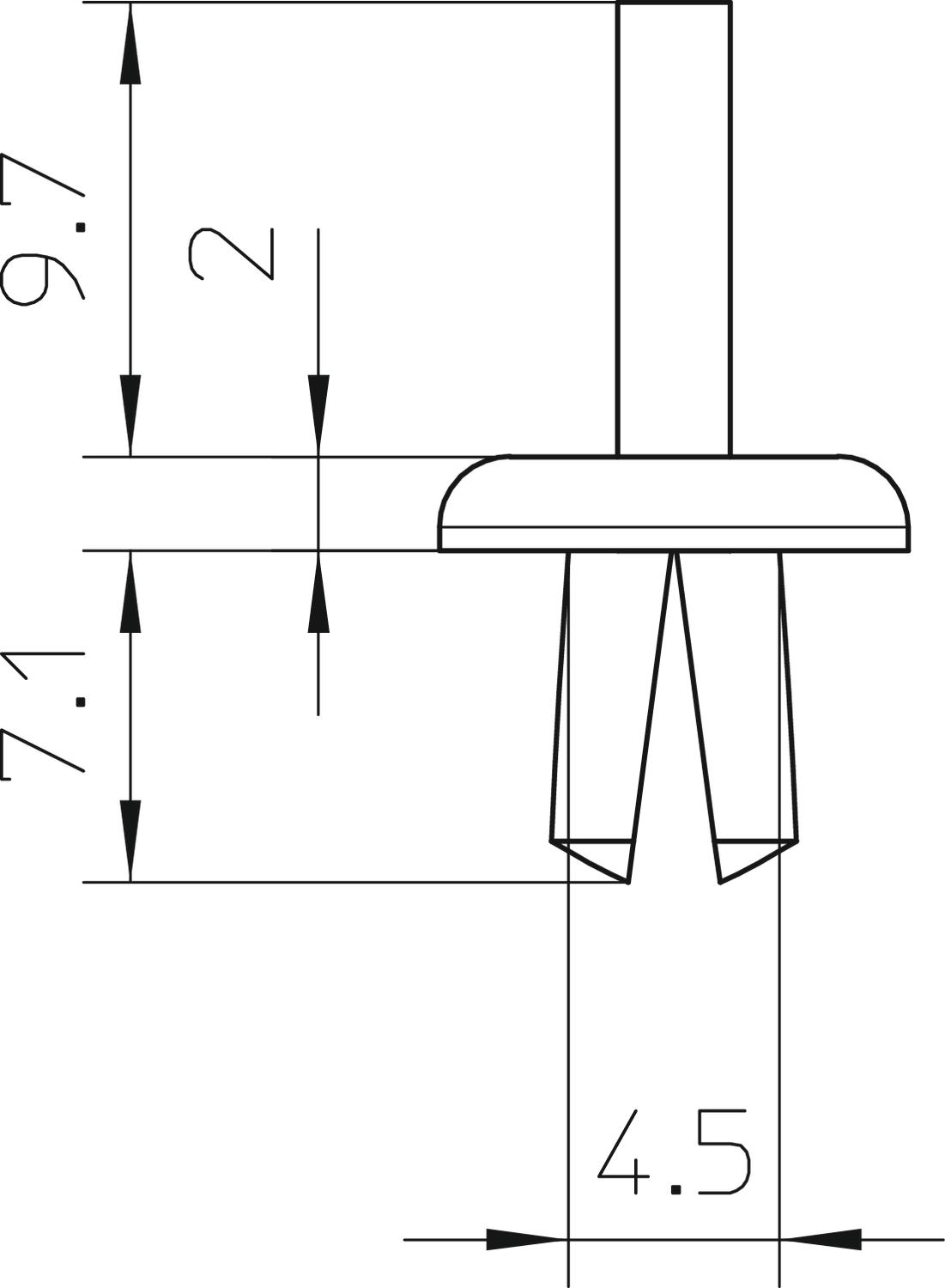

Bore hole diameter 4,5 mm Colour Light grey; RAL 7035 Dimension Ø4,5mm Halogen-free yes Material Polypropylene Dimensions
Dimension a 4,5 mm - All types
- Downloads
-
Brochure Wiring trunking , 2.79MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity KSN1 / 6178520 , 0.16MB , pdfREACH Declaration of conformity KSN1 / 6178520 , 0.12MB , pdfRoHS Declaration of conformity KSN1 / 6178520 , 0.12MB , pdfMounting instructions Mounting instructions, LK4/LK4H/LKV/LKVH wiring duct , 5.49MB , pdf
