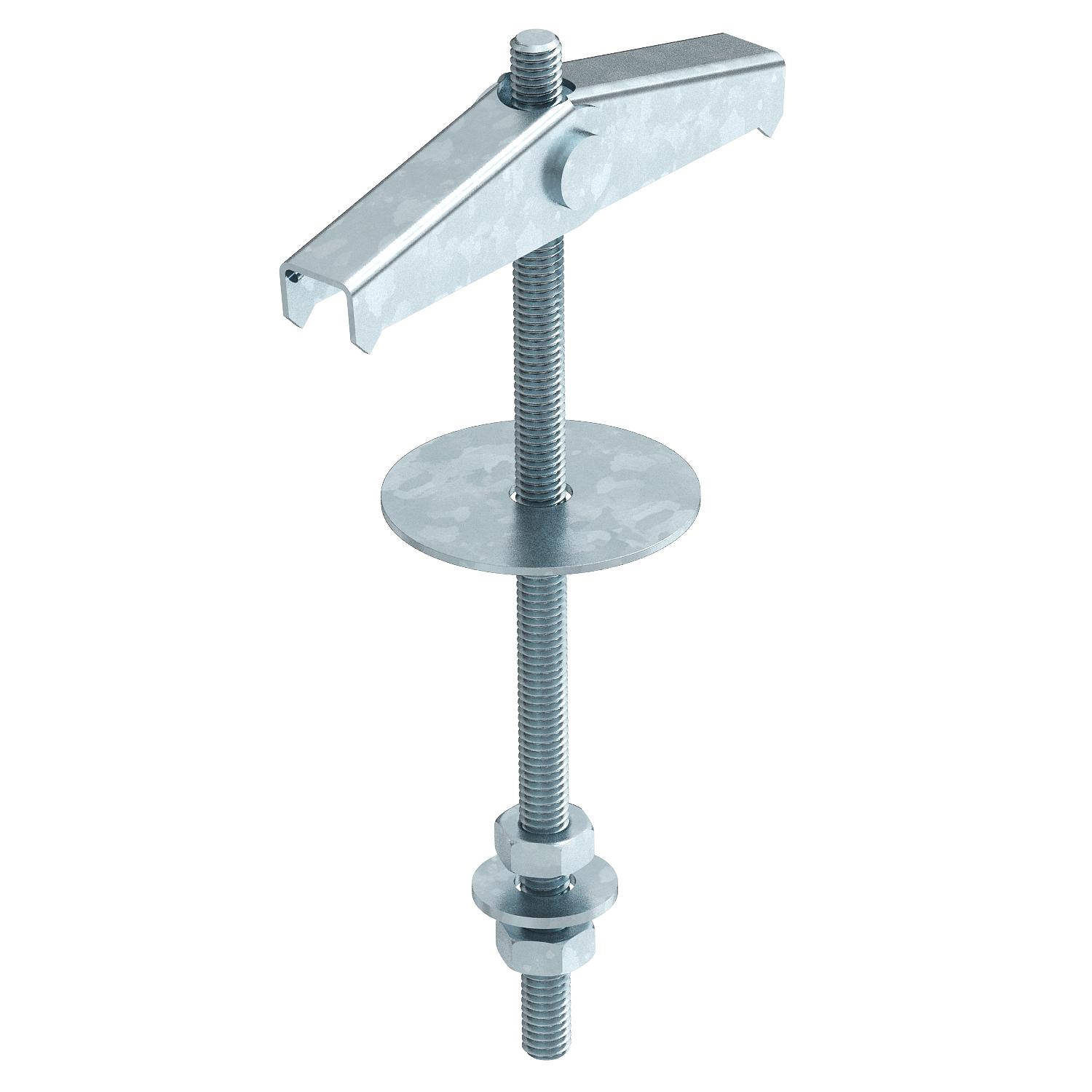

Sprung hinged anchor
Item no. 3481611 | EAN 4012195442936
- Product description
-
Product description
With threaded rod, washer and hexagonal nut; brass axle.
-
- Technical data
-
Technical data

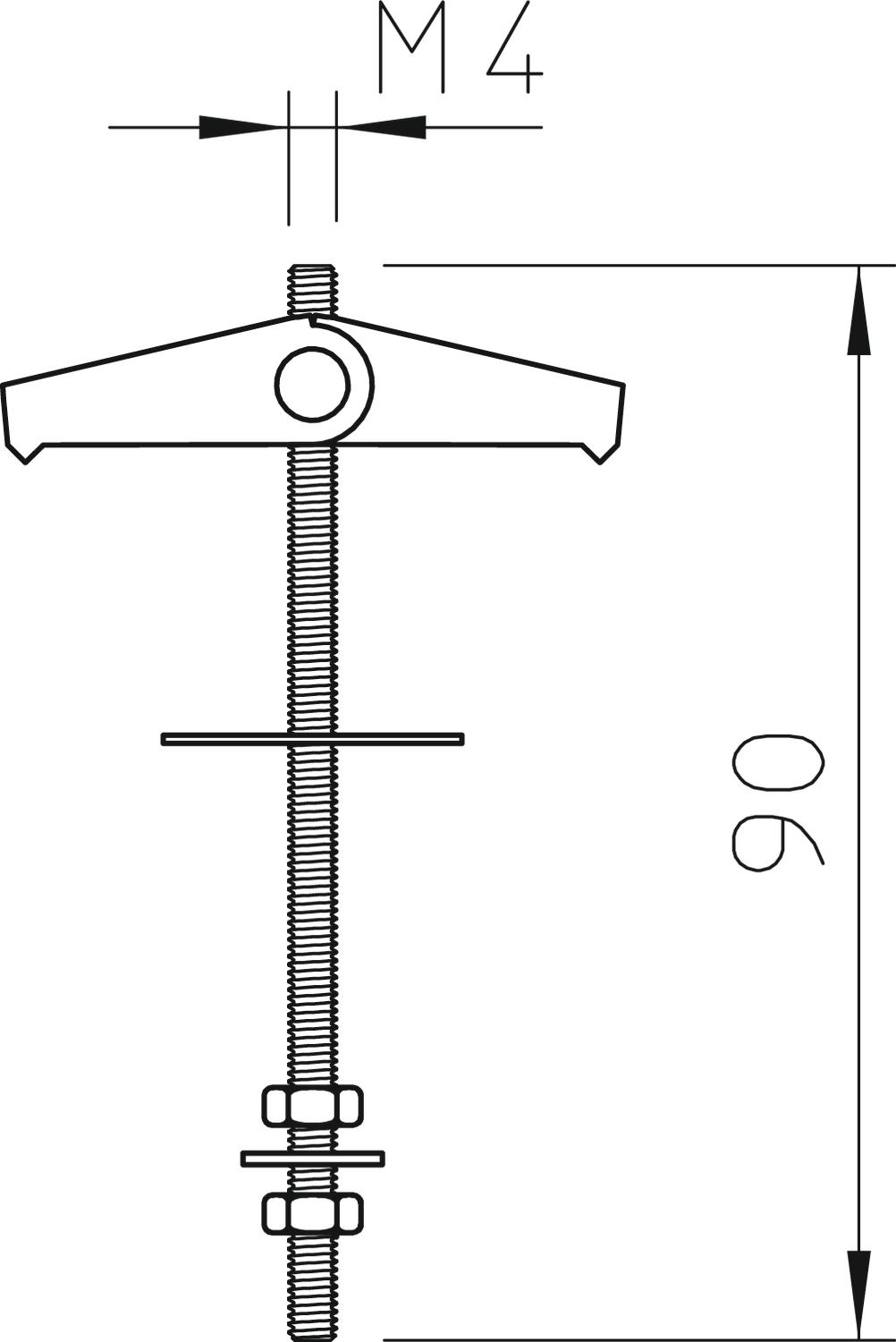

Breaking load 0,2 kN Dimension M4x95mm Drill hole 14 mm Drill hole diameter, min. 14 mm Material Steel Minimum cavity depth 35 mm Surface Electrogalvanized Thread M4 Thread type Metric Version for With threaded shaft With washer yes Dimensions
Length 90 mm - All types
- Downloads
-
Data sheet 450 M4x95 G / 3481611 , 0.29MB , pdfCatalogue Fastening materials , 19.78MB , pdf
