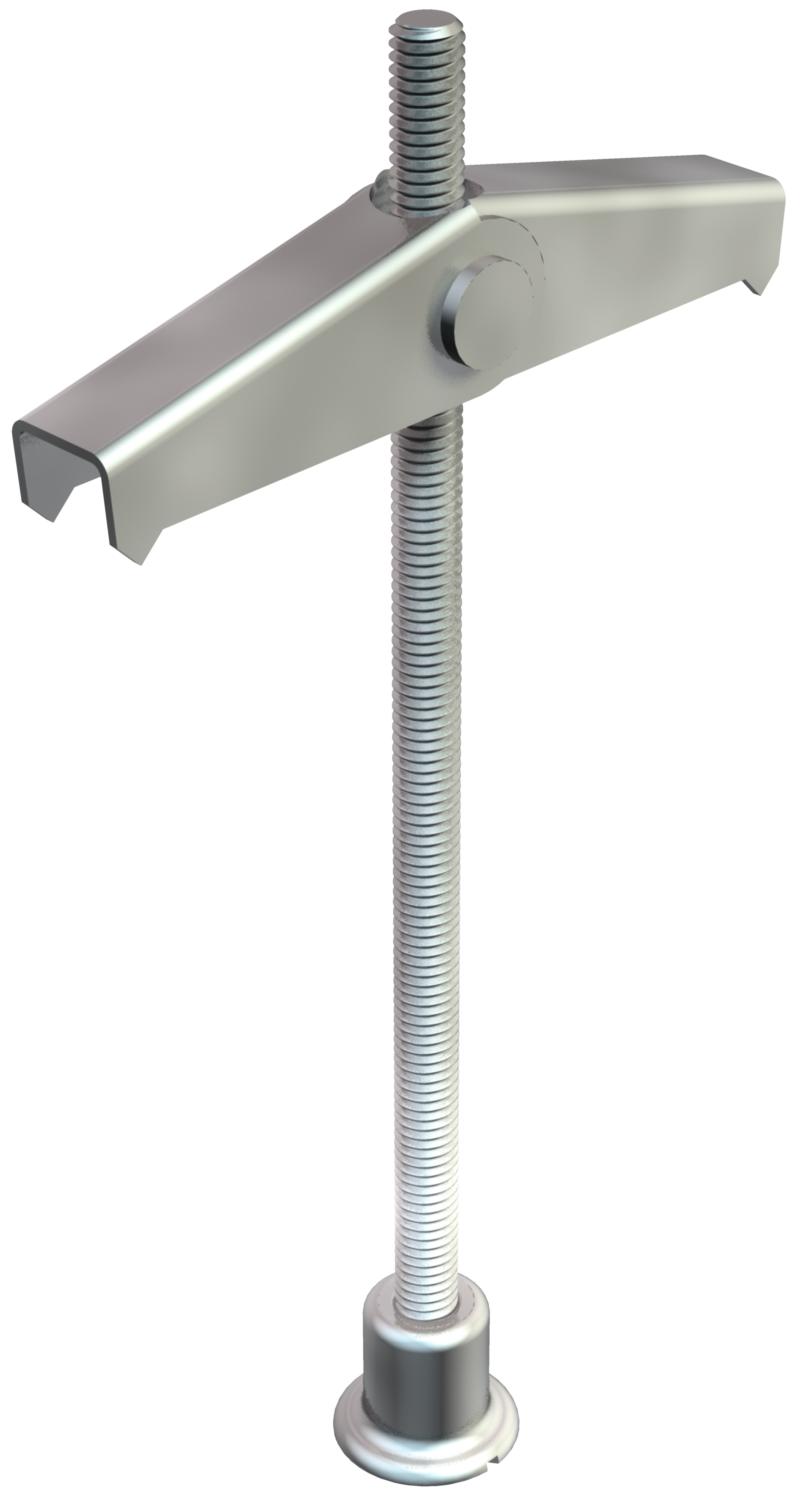

Sprung hinged anchor
Item no. 3481662 | EAN 4012195432852
- Product description
-
Product description
With threaded rod and slotted brass nut; brass axle.
-
- Technical data
-
Technical data

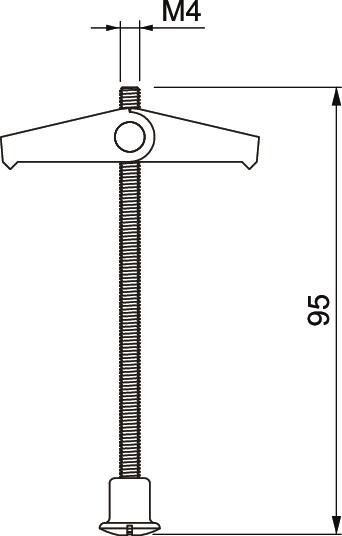

Breaking load 0,2 kN Dimension M4x95mm Drill hole 14 mm Drill hole diameter, min. 14 mm Material Steel Minimum cavity depth 35 mm Surface Electrogalvanized Thread M4 Thread type Metric Version for With threaded shaft With washer no Dimensions
Length 95 mm - All types
- Downloads
-
Data sheet 451 M4x95 G / 3481662 , 0.27MB , pdfCatalogue Fastening materials , 19.78MB , pdf
