Note: This article is discontinued.

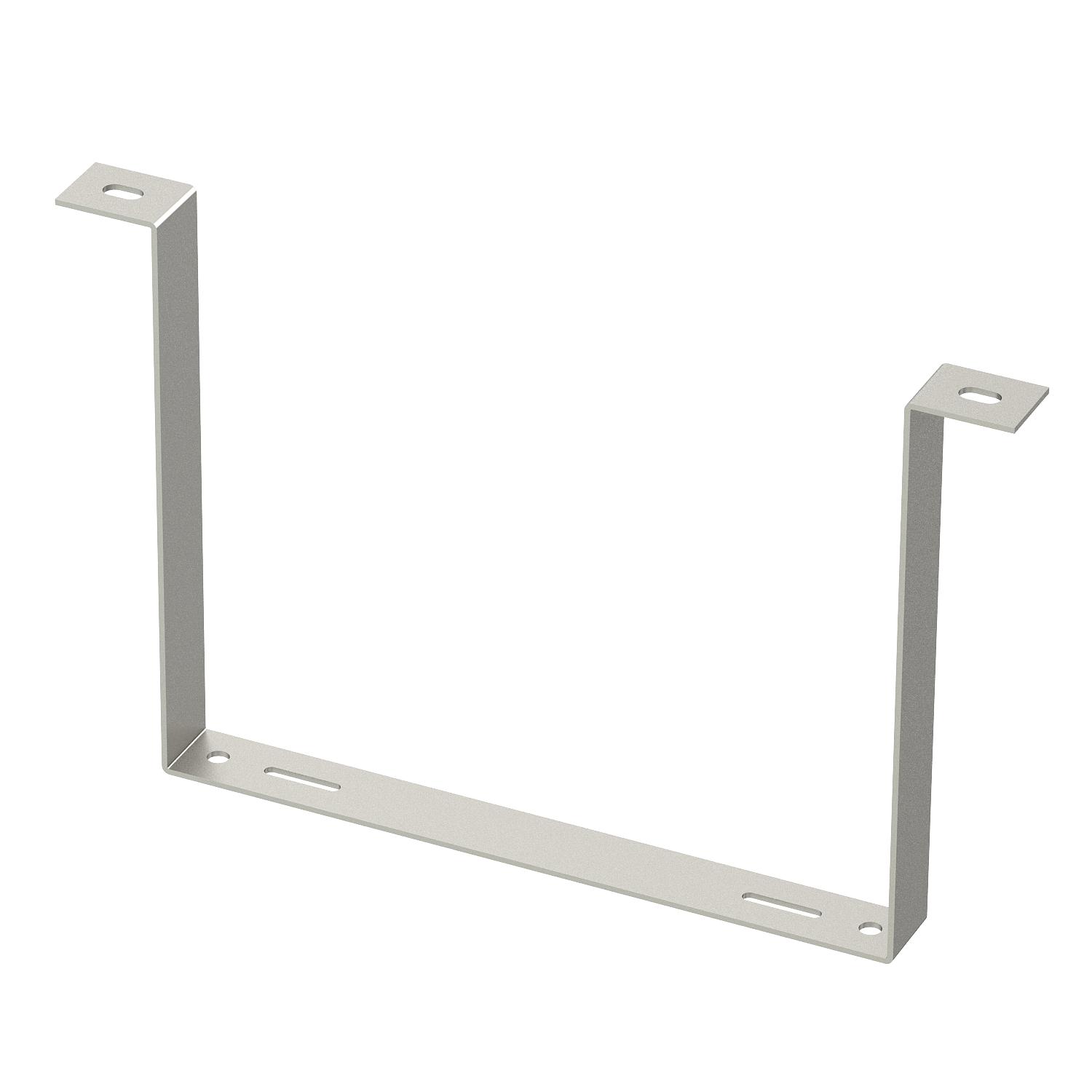

Suspension bracket for tunnels
Item no. 6363997 | EAN 4012195924456
- Product description
-
Product descriptionSpecial suspension bracket for cable support systems in tunnels. Additional variants, such as adapter or connection clamps, as well as various head shapes, on request.
-
- Technical data
-
Technical data

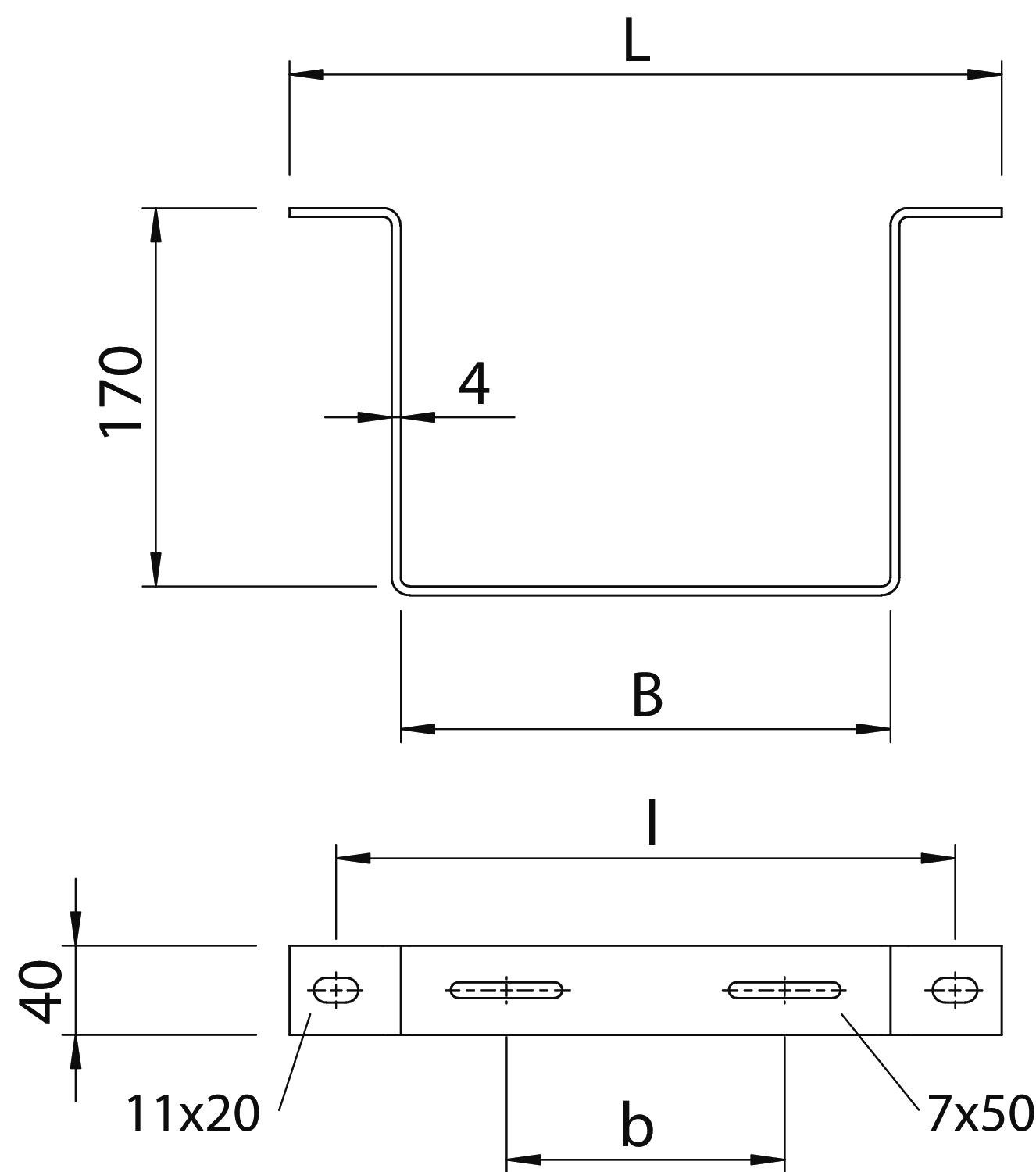

Dimension 170x220 Dimension B 120 mm Dimension b 25 mm Dimension l 180 mm Dimension L 220 mm Height 40 mm Length 170 mm Maintain electrical functions yes Material Stainless steel 1.4547 Material thickness 4 mm Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Surface Bright, treated Width 220 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x16 F 6406157 100 piece - Downloads
-
Data sheet AHB-T1712 VA4547 / 6363997 , 0.19MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity AHB-T1712 VA4547 / 6363997 , 0.10MB , pdfREACH Declaration of conformity AHB-T1712 VA4547 / 6363997 , 0.12MB , pdfRoHS Declaration of conformity AHB-T1712 VA4547 / 6363997 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
