Tilting anchor 100 | 16 | 0.7 | M6
morepic-1 morepic-2

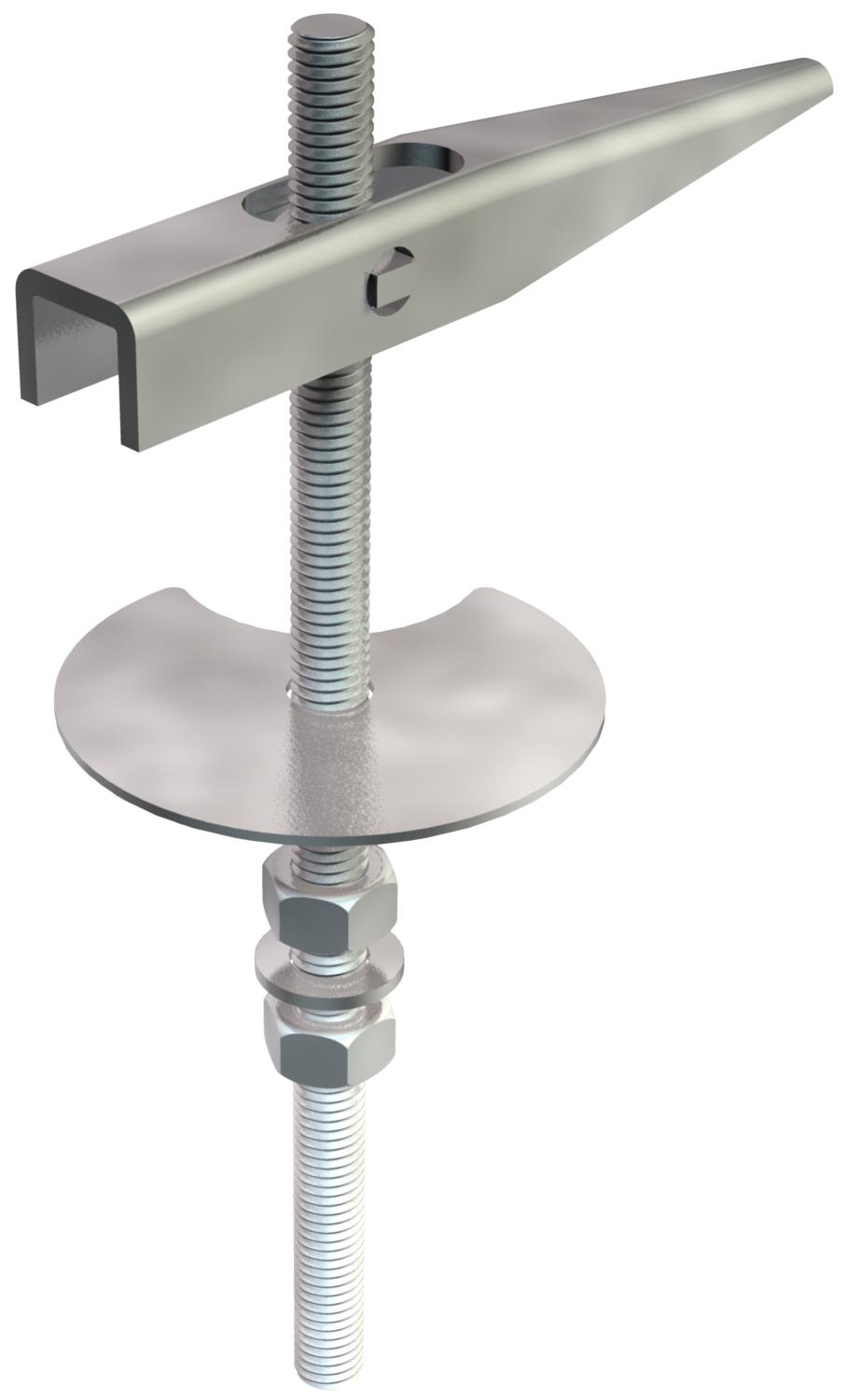

Tilting anchor

Item no. 3482014 | EAN 4012195310631

100 mm
Product description

Product description

Two washers and two hexagonal nuts, with threaded shank.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 0,7 kN
Dimension M6x100mm
Drill hole 16 mm
Drill hole diameter, min. 16 mm
Material Steel
Surface Electrogalvanized
Thread M6
Thread type Metric
Version for With threaded shaft
With washer yes

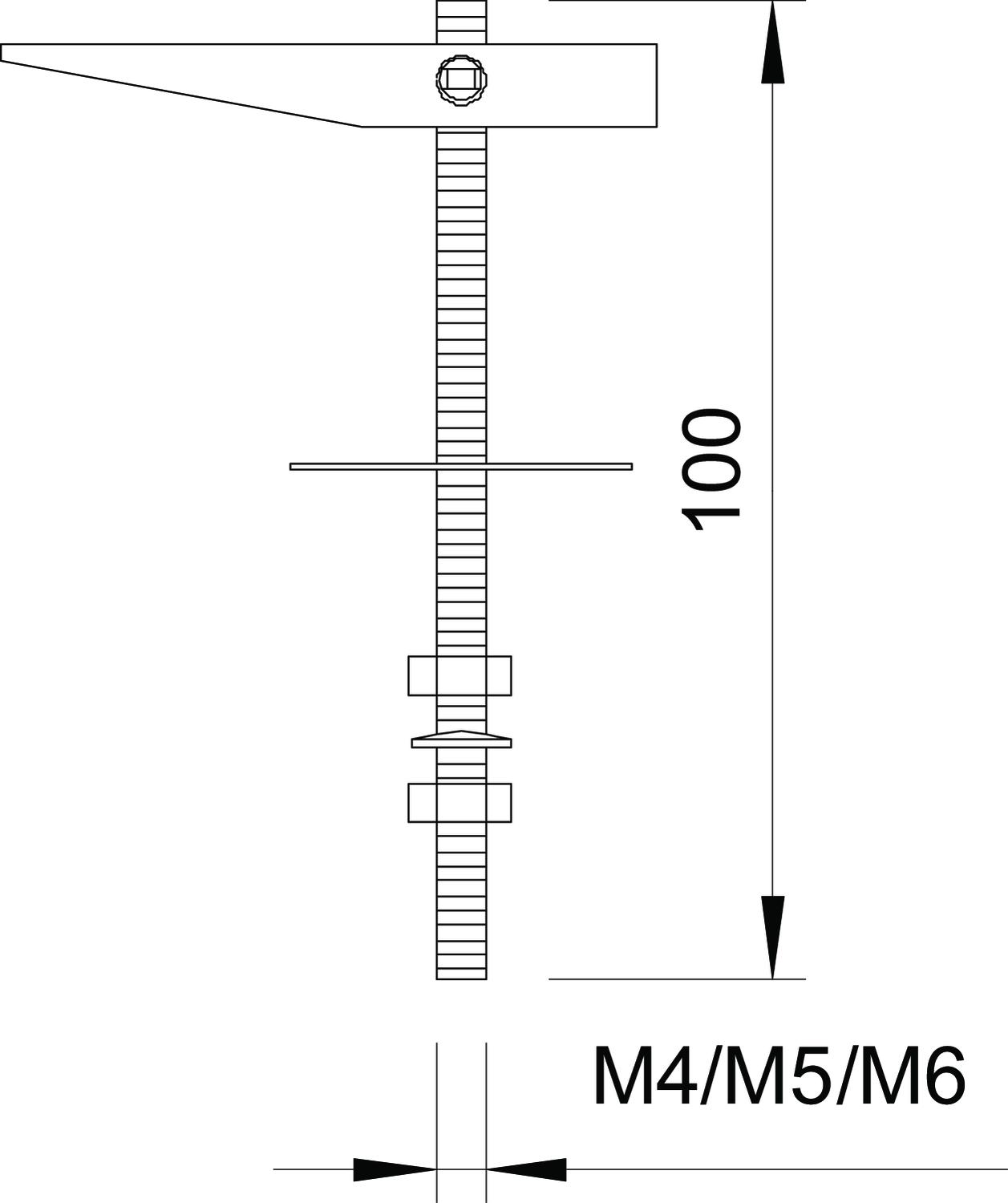

Dimensions

Length 100 mm
All types

All types

Types Length Drill hole diameter, min. Breaking load Thread Item no. Quantity SSU
453 M6x100 G 100 mm 16 mm 0.7 kN M6 3482014
50 piece
456 M5x100 G 100 mm 13 mm 0.7 kN M5 3482103
50 piece
458 M4x100 G 100 mm 13 mm 0.5 kN M4 3482154
50 piece
Downloads

Download

Download

Declaration of conformity 453 M6x100 G / 3482014 , 0.04MB , pdf
Download
REACH Declaration of conformity 453 M6x100 G / 3482014 , 0.12MB , pdf
Download
RoHS Declaration of conformity 453 M6x100 G / 3482014 , 0.13MB , pdf
Download

453 M6x100 G / 3482014
