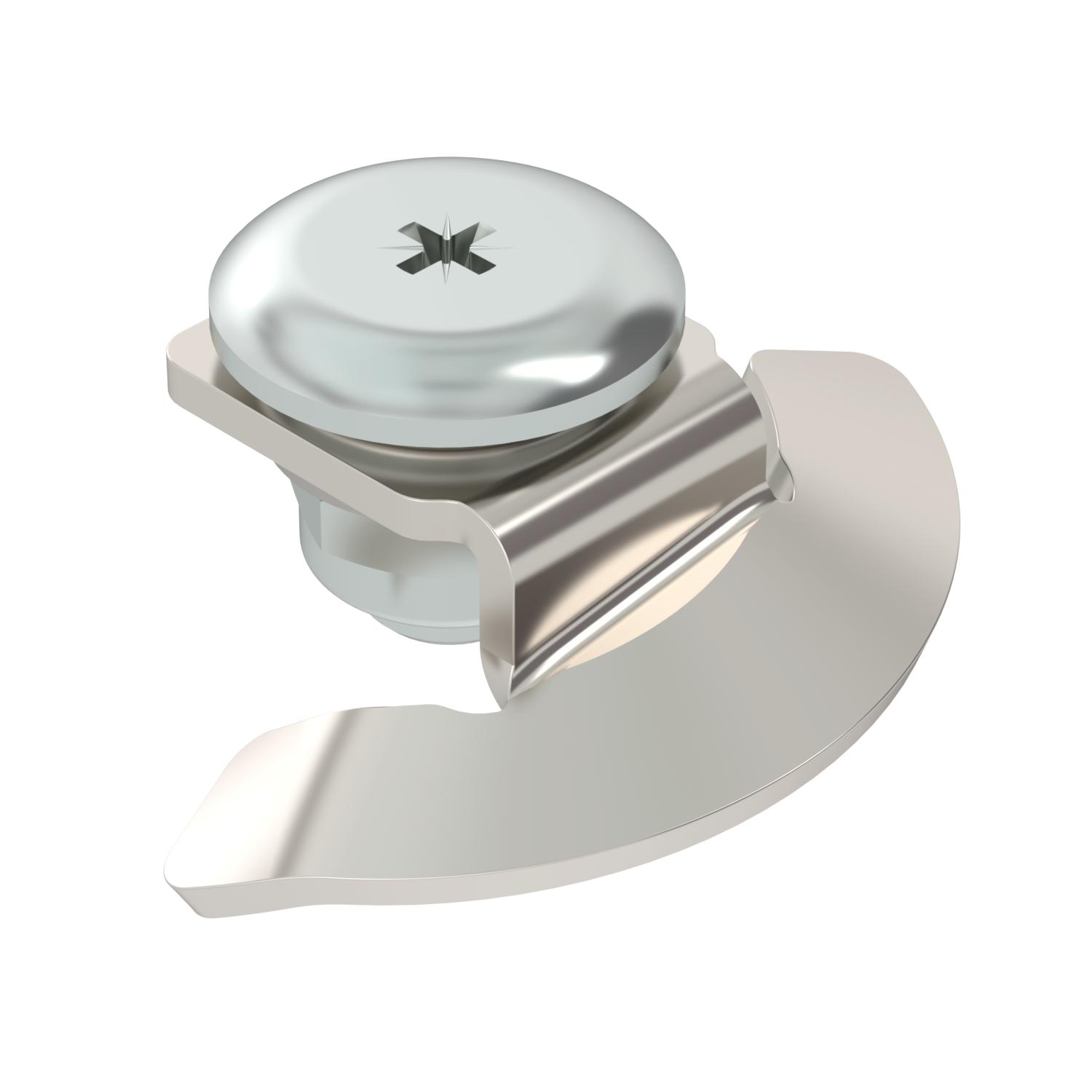

Turn buckle
Item no. 6065016 | EAN 4012196619054
- Product description
-
Product descriptionTurn buckle for additional mounting or mounting at a later date.

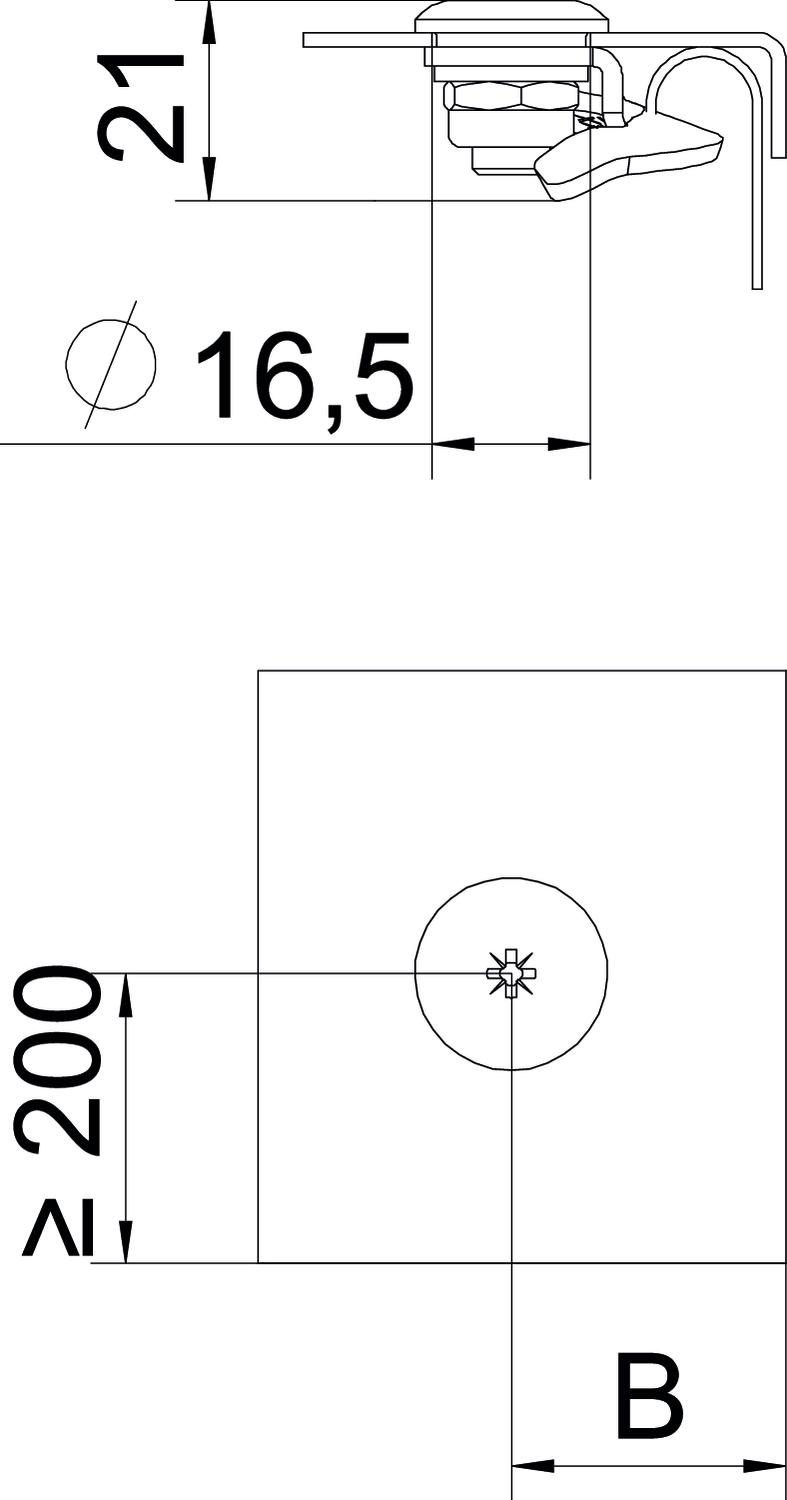

Depending on the cover version, dimension B varies as follows:
DRL / DRLU = 27 mm
DBKR = 27 mm
WDRL = 38 mm
WKLD = 58 mm
Single-sided turn buckle. Use for cover widths of 100–600 mm.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 0,246 kg CO2e / 1 Piece Colour stainless steel Material Stainless steel 1.4301 Rustproof steel, pickled yes Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Bright, treated - All types
- Downloads
-
Data sheet DRL H S A2 / 6065016 , 0.19MB , pdfEU declaration of conformity DRL H S A2 / 6065016 , 0.10MB , pdfREACH Declaration of conformity DRL H S A2 / 6065016 , 0.12MB , pdfRoHS Declaration of conformity DRL H S A2 / 6065016 , 0.12MB , pdfSelection aid Selection aid for cable trays, Magic , 0.23MB , pdfSelection aid Selection aid cable trays, screwable , 2.17MB , pdfMounting instructions Latchable Magic cable tray systems , 12.24MB , pdfMounting instructions Screwable cable trays with fittings for screwing and clamping , 5.98MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfMounting instructions Mounting instructions for Helix turn buckle , 0.11MB , pdf
