Underfloor box for GES4
Item no. 7427430 | EAN 4012195916925
- Product description
-
Product description

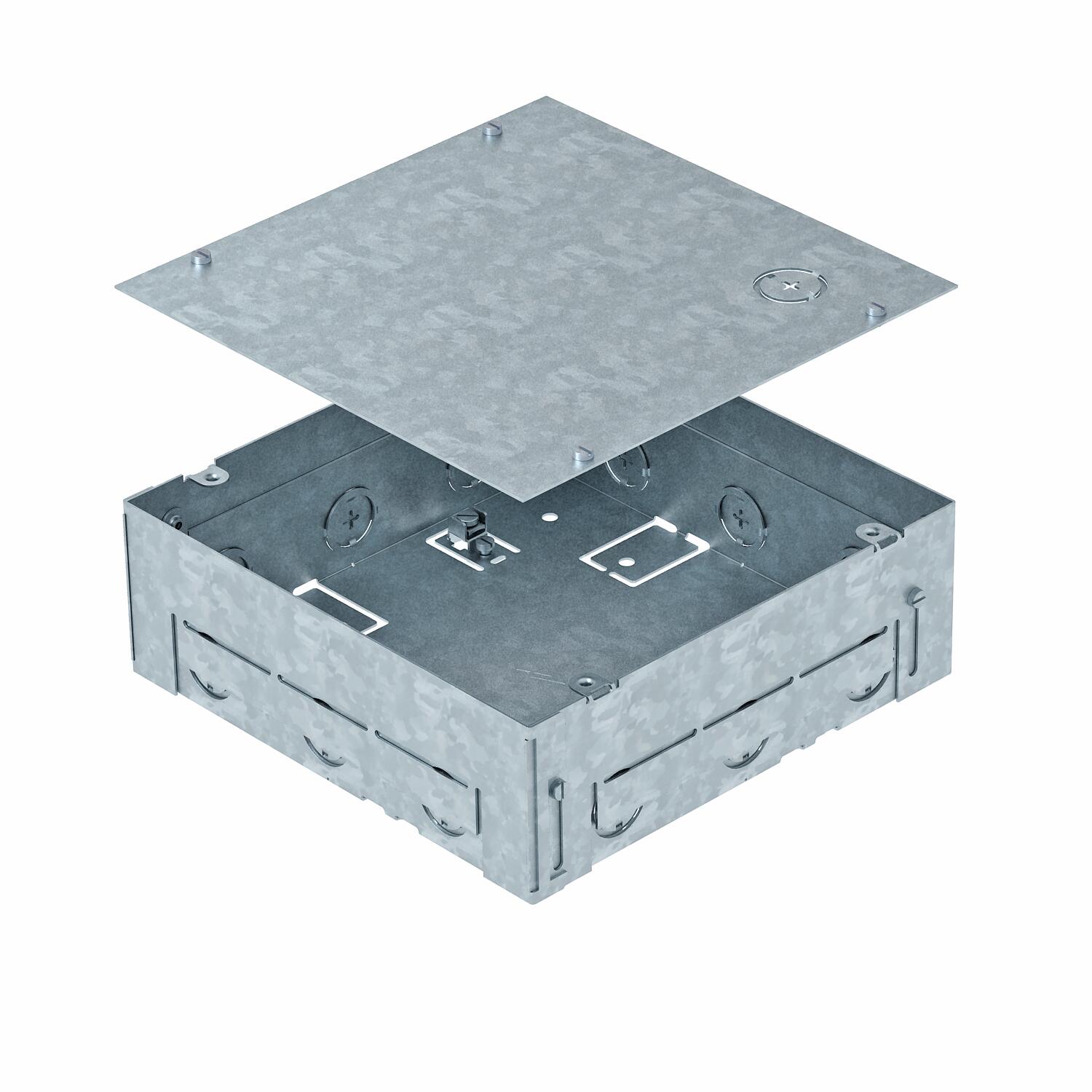

Square installation housing for one GES4-2 service unit for outlet in screed floors for indoor use. With pre-marked insertion openings for pipelines (M25) on all four sides.
In the as-delivered state, the installation housing is closed with a mounting protection lid.
The minimum installation depth is 70 mm, the height-adjustment range +30 mm.
-
- Technical data
-
Technical data

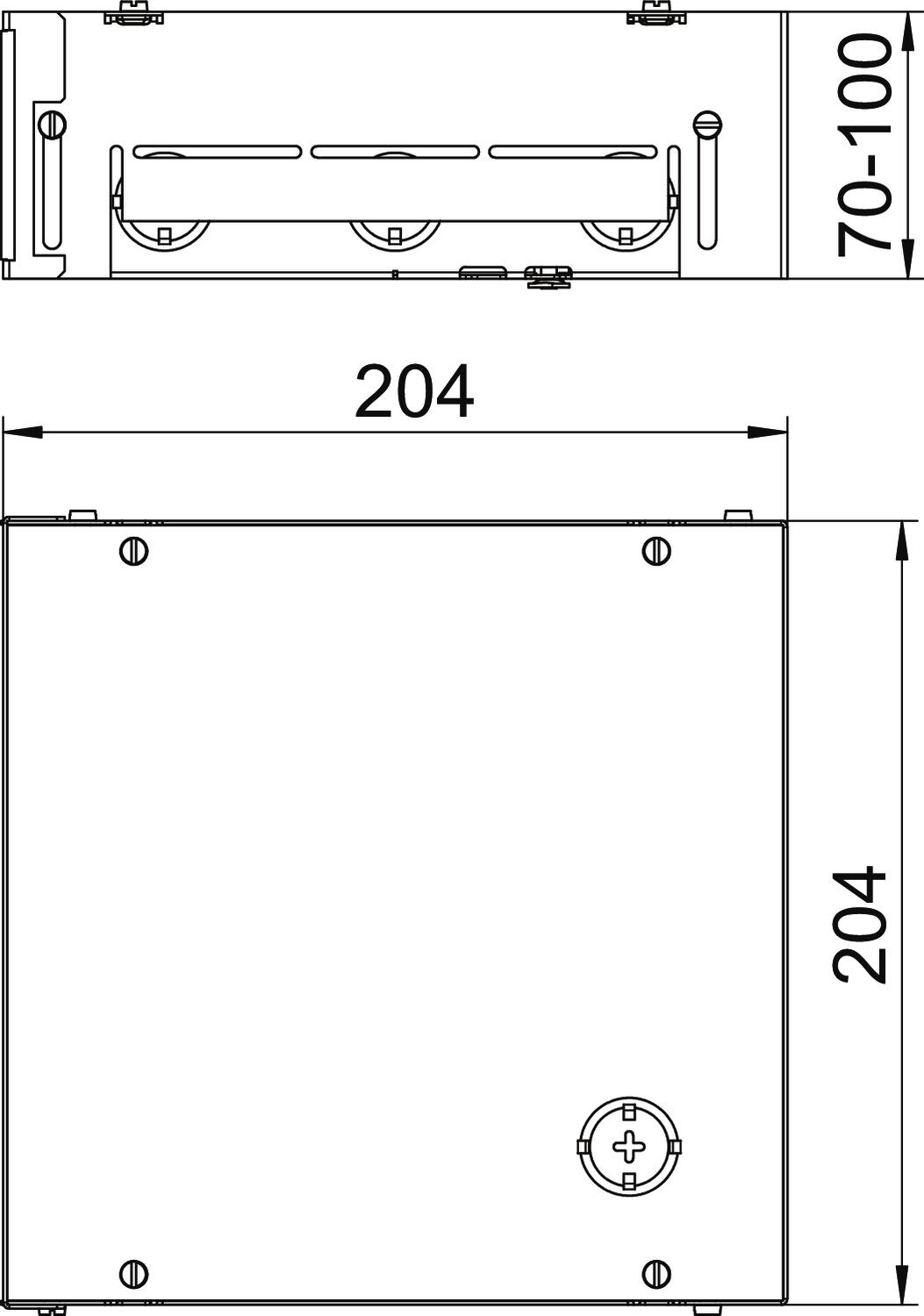

Dimension 210x205x75 Material Steel Surface Strip galvanized Dimensions
Length 205 mm Width 205 mm - All types
