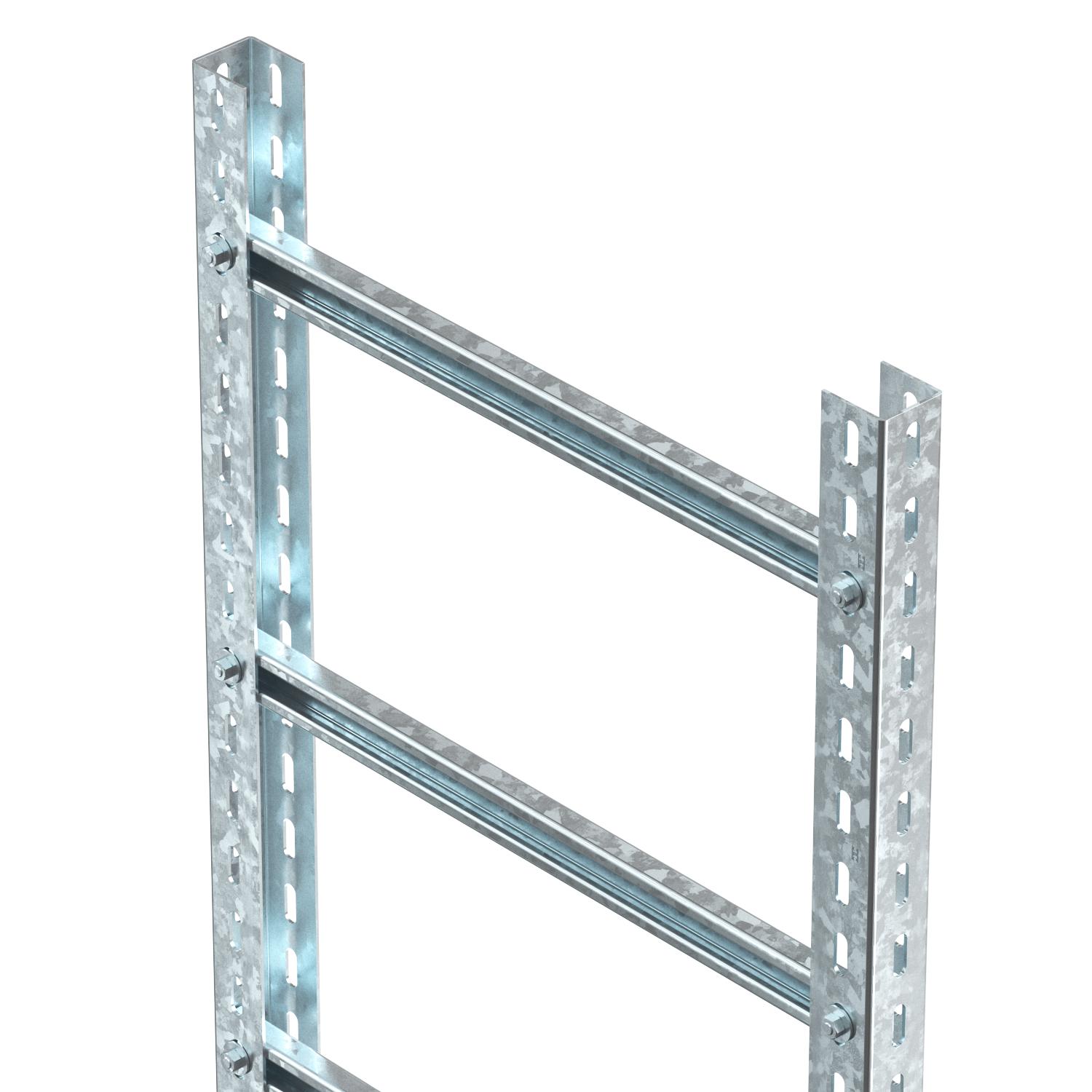

Vertical ladder, SLM50
Item no. 6010024 | EAN 4012196959846
- Product description
-
Product descriptionHeavyweight vertical ladder system for the maintenance of electrical function to DIN 4102 Part 12. Approved clips, type BS-U1-M-… FT. Supplied unmounted.
-
- Technical data
-
Technical data

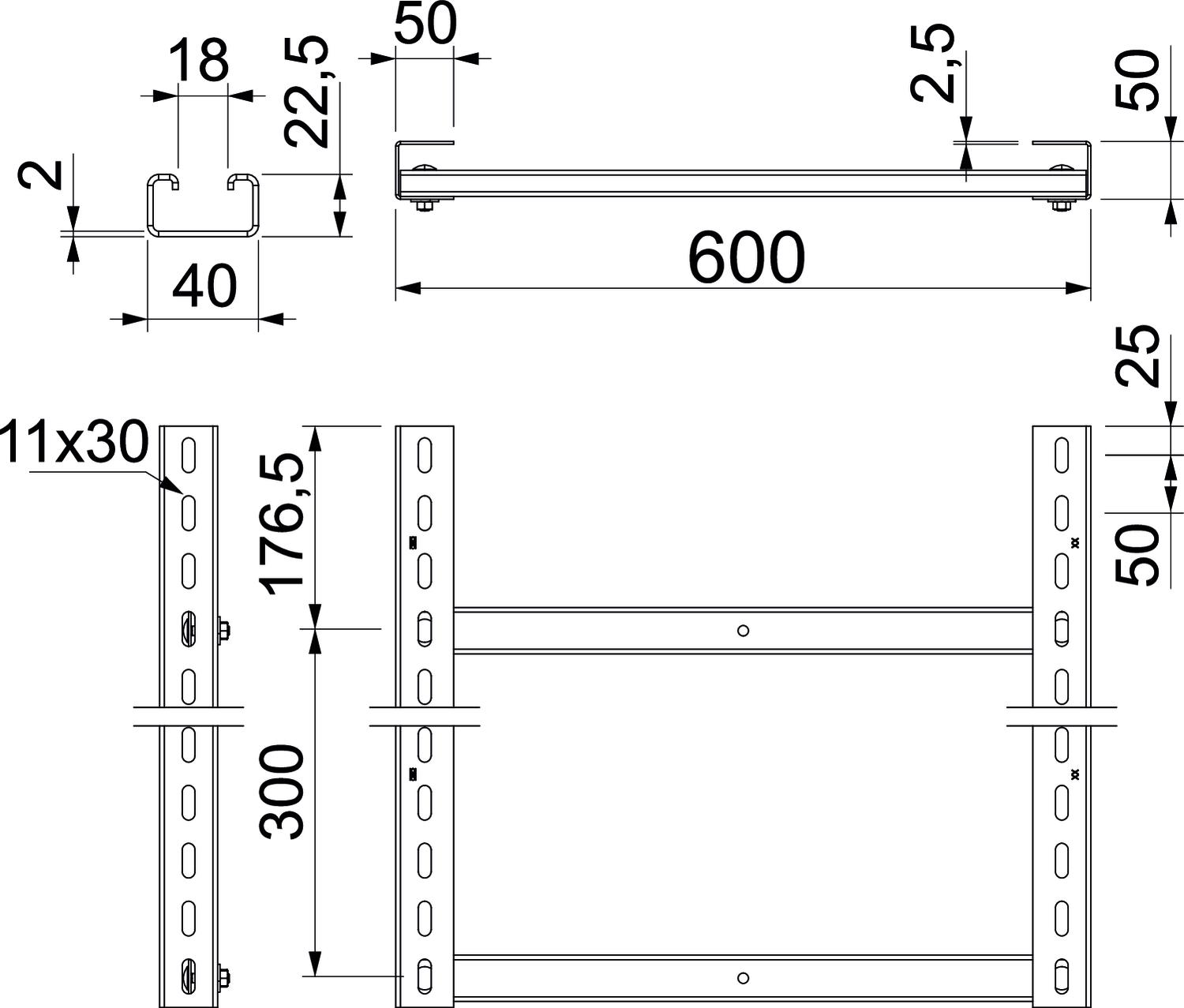

CO2 Footprint (GWP) Cradle-to-Gate 18,3737 kg CO2e / 1 Meter Colour zinc Dimension 600x3000mm Dimension B 600 mm Fire protection Maintenance of electrical function of standard support structure Height 50 mm Length 3000 mm Maintain electrical functions yes Material Steel Rung distance 300 mm Rung slot dimension 2,00 Rustproof steel, pickled no Side perforation yes Surface Hot-dip galvanised Version of the rungs Profile unperforated Width 600 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Mounting bracket, 90° with 3 holes FT
GMS 3 VW 90 FT 1124661 10 piece
Strain relief on three sides, with mineral wool, internal height 175 mm
ZSE90-65-17 7215730 1 piece

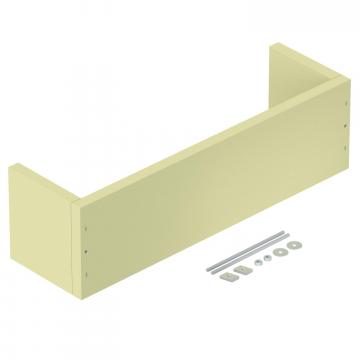

Strain relief on three sides, empty housing, internal height 175 mm
ZSE90-65-17 L 7215774 1 piece

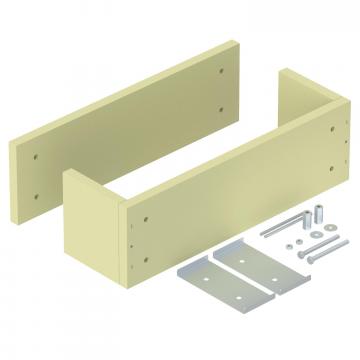

Strain relief on four sides, empty housing, internal height 175 mm
ZSE90-61-17 LH 7215788 1 piece
Identification plate for maintenance of electrical function
KS-E DE 7205423 10 piece Mounting accessories
Products Types Item no. Quantity SSU
U support connector FT
VUS 5 FT 6018505 10 piece
Head plate US 5 NOK FT
KUS 5 NOK FT 6348939 1 piece
Head plate US 5
KUS 5 FT 6348904 1 piece - Downloads
-
Data sheet SLM50C40F 60 FT / 6010024 , 0.20MB , pdfEU declaration of conformity SLM50C40F 60 FT / 6010024 , 0.10MB , pdfREACH Declaration of conformity SLM50C40F 60 FT / 6010024 , 0.12MB , pdfRoHS Declaration of conformity SLM50C40F 60 FT / 6010024 , 0.12MB , pdfNo invitation to tender text is available for this product.
