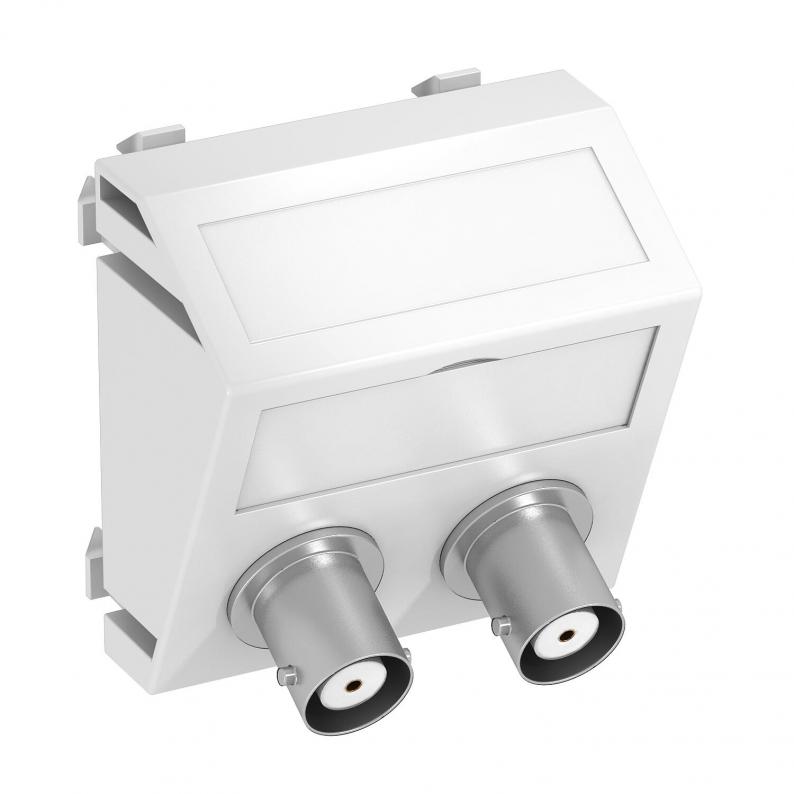

2x BNC connection, 1 module, slanting outlet, as 1:1 coupling, pure white

2x BNC connection, 1 module, slanting outlet, as 1:1 coupling, pure white

Type MTS-2BC F RW1
|
Item no. 6105102
|
EAN 4012195898948
Show all variants
Item no. / Type
Colour

Smallest selling unit: 1 piece

piece

Description

Multimedia support with two BNC connection sockets, slanting cable outlet, with labelling panel, two BNC couplings, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

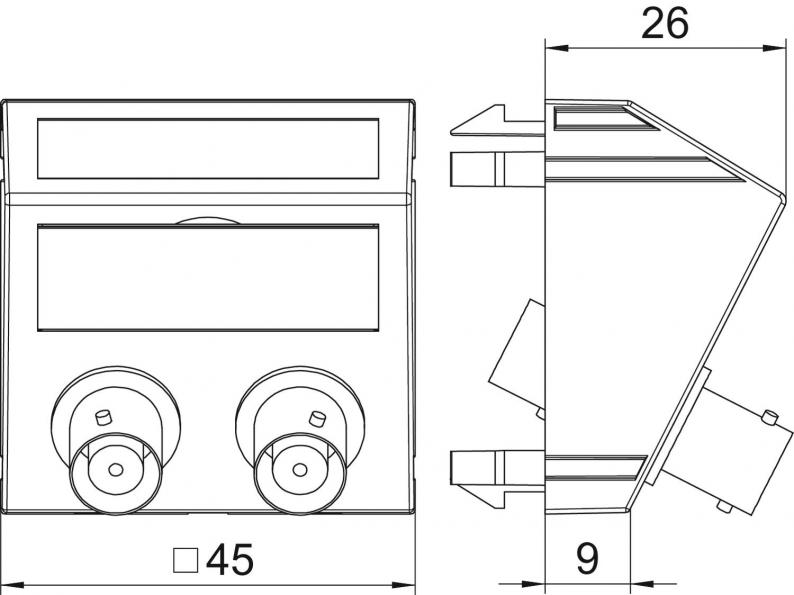

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeyes
Number of units1
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Depth26 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseBNC/TNC
Fastening typeLock
Dimension45x45mm
MaterialPolycarbonate
ColourPure white; RAL 9010

Environmental Data

0,17 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,17 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
MTS-2BC F RW1
Item no.
6105102
Use
BNC/TNC
Colour
Pure white; RAL 9010
MTS-2BC F SWGR1
Item no.
6105105
Use
BNC/TNC
Colour
Black-grey; RAL 7021
Outlet direction
Sloping
MTS-2BC F AL1
Item no.
6105108
Use
BNC/TNC
Colour
Aluminium painted
