45° bend 60 FS
Type RB 45 615 FS
|Item no. 6043755
|EAN 4012196052219
Item no. / Type
6043755 / RB 45 615 FS
Width
150 mm
Surface
Strip galvanized
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

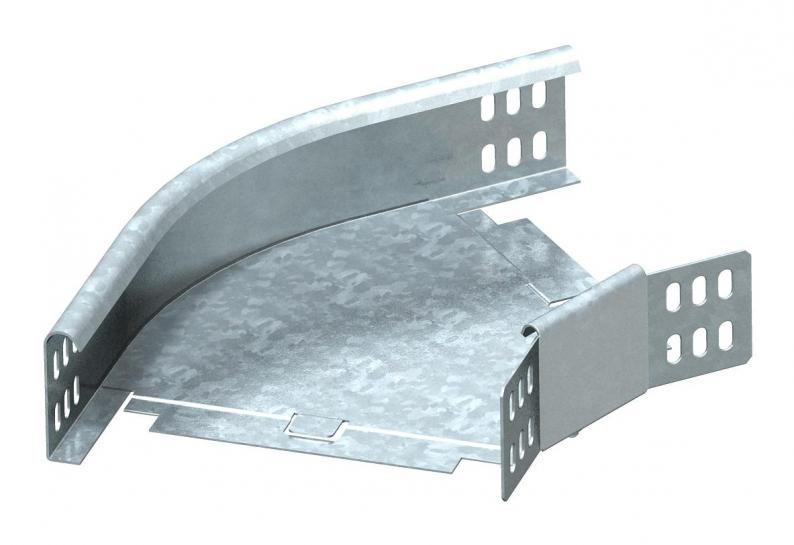

45° bend, horizontal, for all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state. The WKV 60 angle connector is designed for 90° bends and can be adjusted to 45° on site.
Including appropriate fastening material.
Technical data

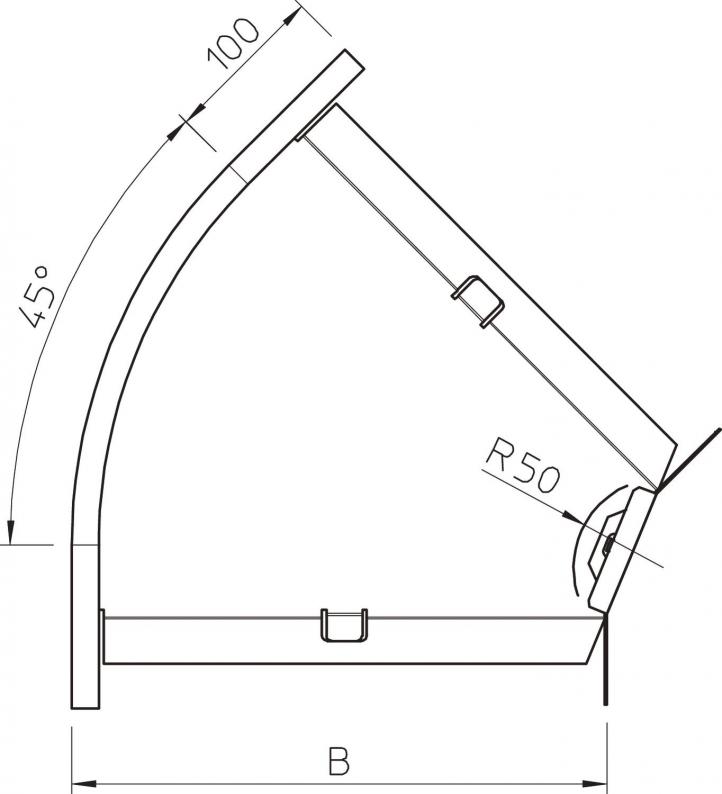

Dimensions
| Width | 150 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 150 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Yan delik | no |
| Connector version | Supplied connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 45° |
| Change of direction | Horizontal |
| Boyut | 60x150 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
