45° bend 85 FS
Type RB 45 810 FS
|Item no. 6036200
|EAN 4012197345372
Item no. / Type
Width
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

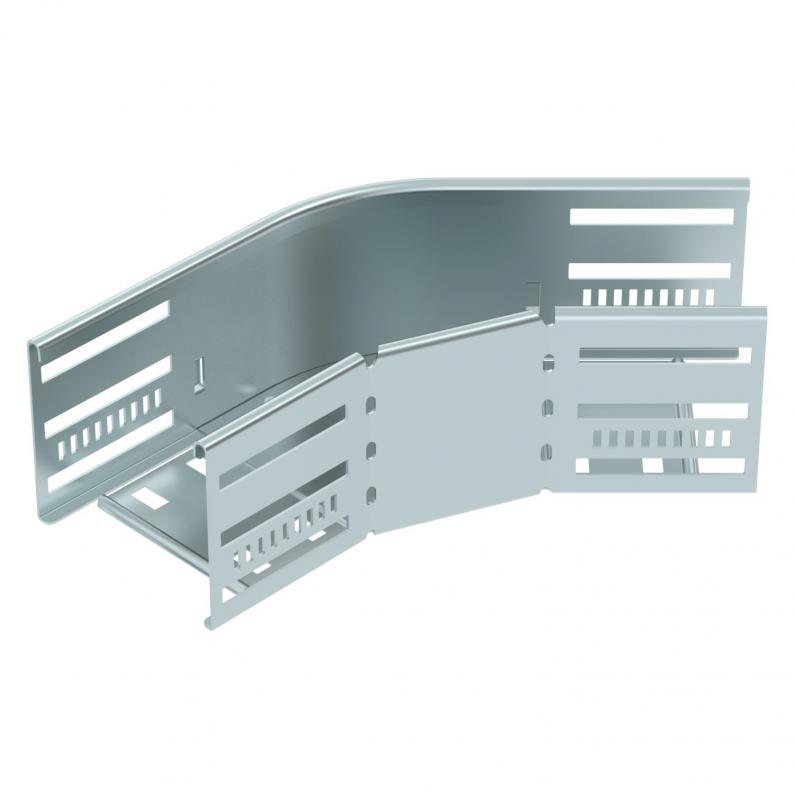

45° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 85 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data

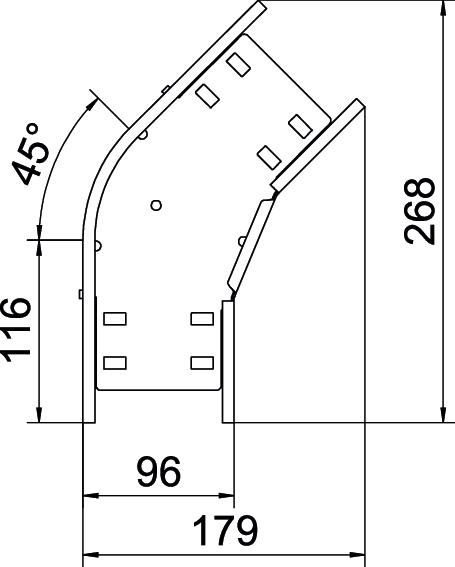

Dimensions
| Width | 100 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 0,8 mm |
| Tabanda montaj deliği | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 0,8 mm |
| Dönüş elemanı (L tipi bağlantı) | 45° |
| Change of direction | Horizontal |
| Üst parçalı | no |
| Type | Bend, rigid |
| Yan parça kalınlığı | 1,25 mm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 120 °C |
| Boyut | 85x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 14 St. |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 2,0769 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 45 810 FS
100
Strip galvanized
Steel
Çinko grisi
6036200
RB 45 820 FS
200
Strip galvanized
Steel
zinc
6036202
RB 45 830 FS
300
Strip galvanized
Steel
Çinko grisi
6036204
RB 45 840 FS
400
Strip galvanized
Steel
zinc
6036206
RB 45 850 FS
500
Strip galvanized
Steel
Çinko grisi
6036208
RB 45 860 FS
600
Strip galvanized
Steel
zinc
6036210
