90° bend 35 FS

90° bend 35 FS

Type RB 90 310 FS
|
Item no. 6036500
|
EAN 4012197343040
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

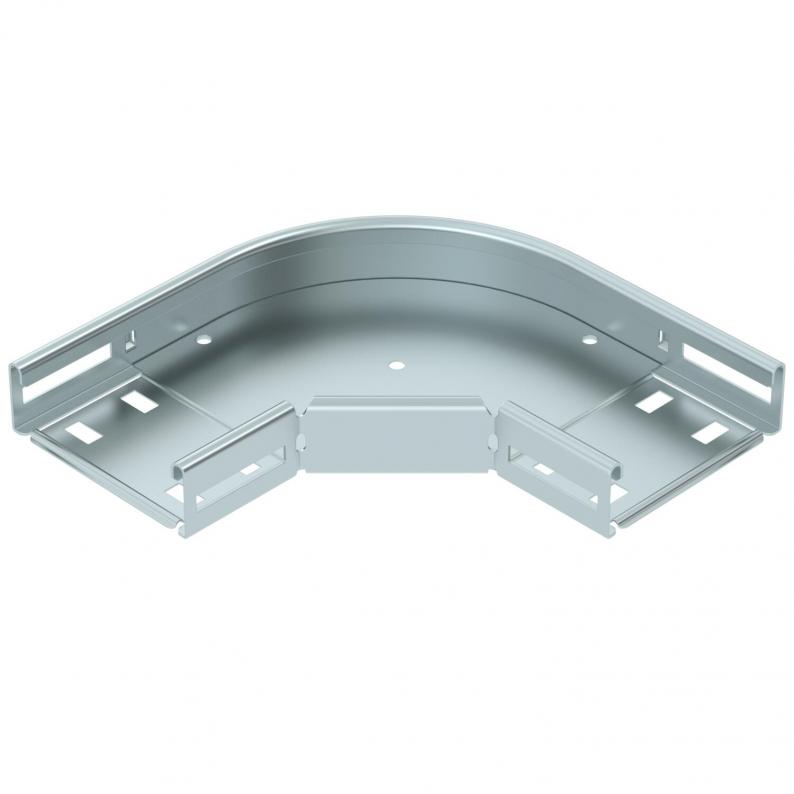

90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

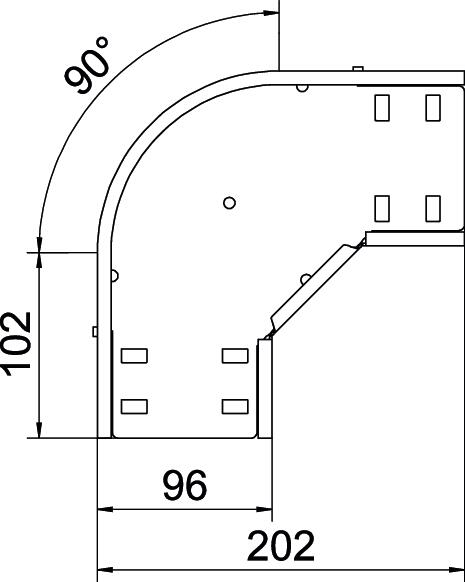

Dimensions

Width100 mm
Height35 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikyes
Connector versionIntegrated connector
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness0,8 mm
Tabanda montaj deliğiyes
NATO hole patternno
Material thickness, floor plate0,8 mm
Dönüş elemanı (L tipi bağlantı)90°
Change of directionHorizontal
Üst parçalıno
TypeBend, rigid
Yan parça kalınlığı1,25 mm
Kullanılabilir sıcaklık aralığı min.-20 °C
Kullanılabilir sıcaklık aralığı maks.120 °C
Boyut35x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
Recommended quantity of bolts6 St.

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya1,4332 kg CO2e / 1 Piece

Accessories

System accessories

Item no. 6036900

Cover, 90° bend FS
Type
RBD 90 100 FS

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Colour
RB 90 310 FS
Item no.
6036500
Width
100
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RB 90 320 FS
Item no.
6036502
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
RB 90 330 FS
Item no.
6036504
Width
300
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
