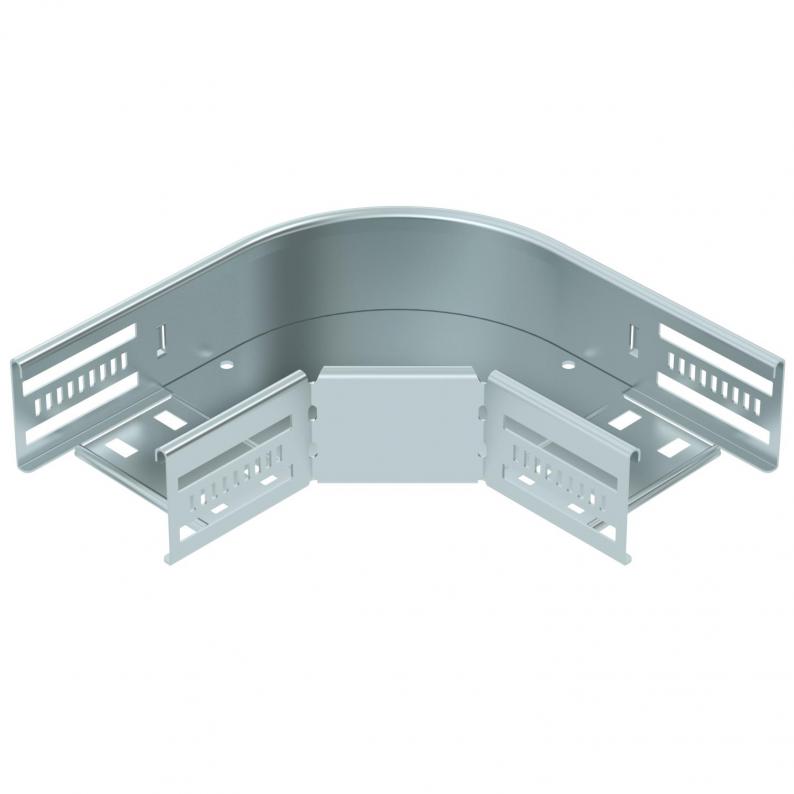

90° bend 60 FS
Type RB 90 610 FS
|Item no. 6036560
|EAN 4012197343101
Item no. / Type
Width
Colour
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Yan delik | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 0,8 mm |
| Tabanda montaj deliği | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 0,8 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Üst parçalı | no |
| Type | Bend, rigid |
| Yan parça kalınlığı | 1,25 mm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 120 °C |
| Boyut | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 10 St. |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,7749 kg CO2e / 1 Piece |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (5)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 610 FS
100
Strip galvanized
Steel
Çinko grisi
6036560
RB 90 615 FS
150
Strip galvanized
Steel
zinc
6036562
RB 90 620 FS
200
Strip galvanized
Steel
Çinko grisi
6036564
RB 90 630 FS
300
Strip galvanized
Steel
zinc
6036566
RB 90 640 FS
400
Strip galvanized
Steel
Çinko grisi
6036568
RB 90 650 FS
500
Strip galvanized
Steel
zinc
6036570
RB 90 660 FS
600
Strip galvanized
Steel
Çinko grisi
6036572
