90° Magic bend 60 FS
Type RBM 90 660 FS
|Item no. 6041142
|EAN 4012195881872
Item no. / Type
6041142 / RBM 90 660 FS
Width
600 mm
Surface
Strip galvanized
Material
Steel
Colour
zinc
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 1 piece
1piece
piece
Description

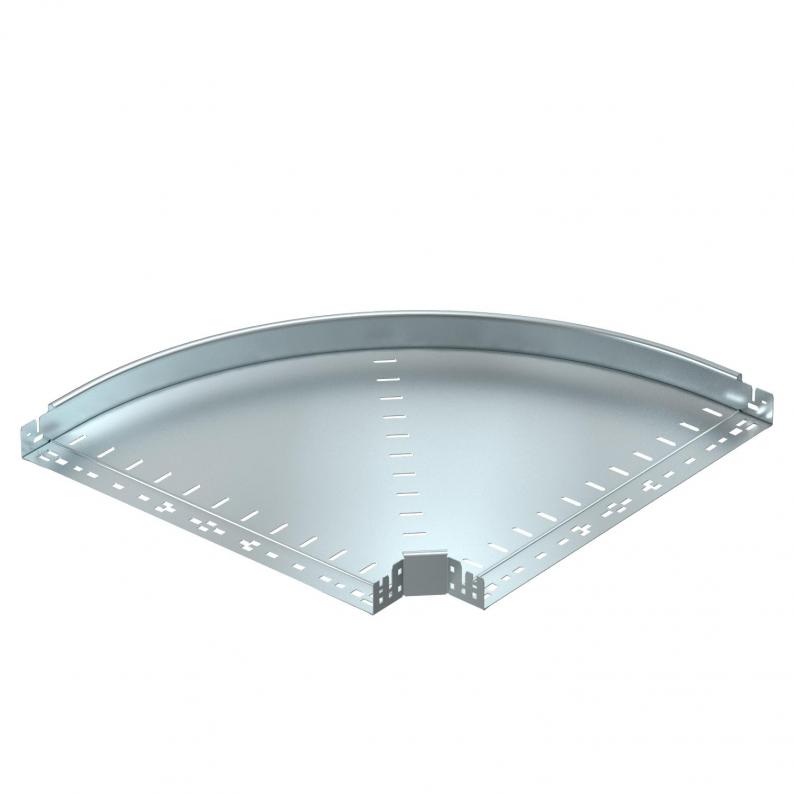

90° bend with quick connector system. For all cable tray types of 60 mm side height.
Technical data
Dimensions
| Width | 600 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 600 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Integrated connector |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1,25 mm |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Horizontal |
| Boyut | 60x600 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Fire protection | Use of fire protection ceilings |
| Type of connector, cable support system | Click fastening |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 15,206 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBM 90 660 FS
600
Strip galvanized
Steel
Çinko grisi
6041142
RBM 90 660 FS
Item no.
6041142
Width
600
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
