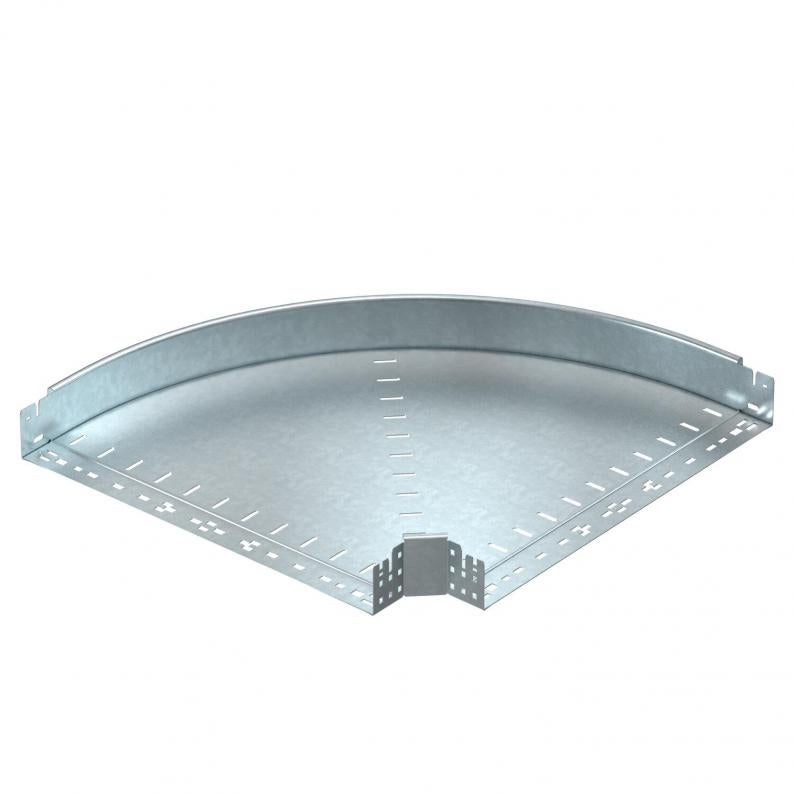

90° Magic bend 85 FT

90° Magic bend 85 FT

Type RBM 90 860 FT
|
Item no. 6041520
|
EAN 4012195880028
Show all variants
Item no. / Type
Width

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 1 piece

piece

Description

90° bend with quick connector system. For all cable tray types of 85 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 85 mm
  • BET-tested to DIN EN 61537

Technical data

Dimensions

Width600 mm
Height85 mm
Dimension B600 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionHorizontal
Dimension85x600
SurfaceHot-dip galvanised
MaterialSteel
Type of connector, cable support systemClick fastening

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RBM 90 830 FT
Item no.
6041514
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBM 90 850 FT
Item no.
6041518
Width
500
Surface
Hot-dip galvanised
Material
Steel
RBM 90 860 FT
Item no.
6041520
Width
600
Surface
Hot-dip galvanised
Material
Steel
