90° vertical bend, falling 35 FT
Type RBV 310 F FT
|Item no. 7007206
|EAN 4012195863199
Item no. / Type
Width
Colour
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, falling, for all cable tray types of 35 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
Technical data

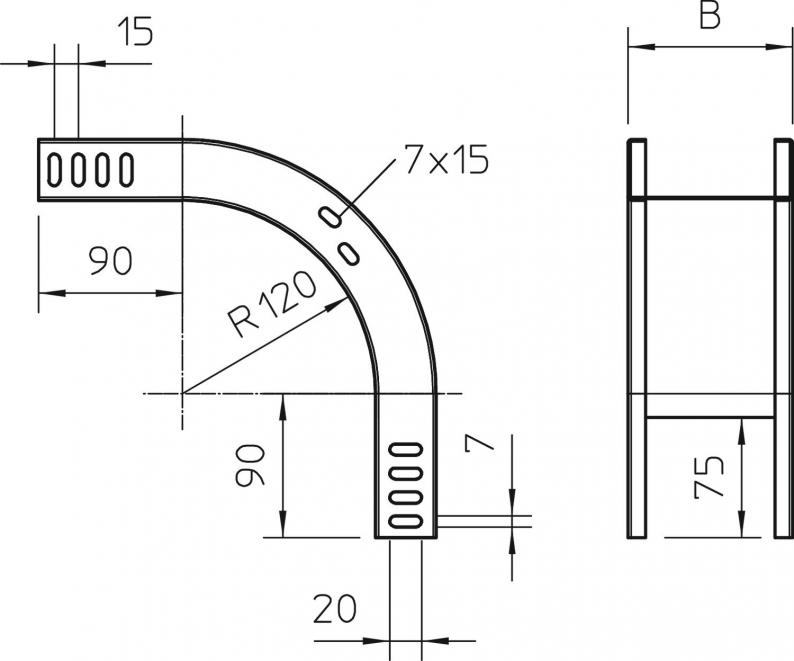

Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 100 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Plate thickness | 1 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Vertical, falling |
| Boyut | 35x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,6795 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBV 310 F FT
100
Hot-dip galvanised
Steel
Çinko grisi
7007206
RBV 320 F FT
200
Hot-dip galvanised
Steel
zinc
7007214
RBV 330 F FT
300
Hot-dip galvanised
Steel
zinc
7007218
