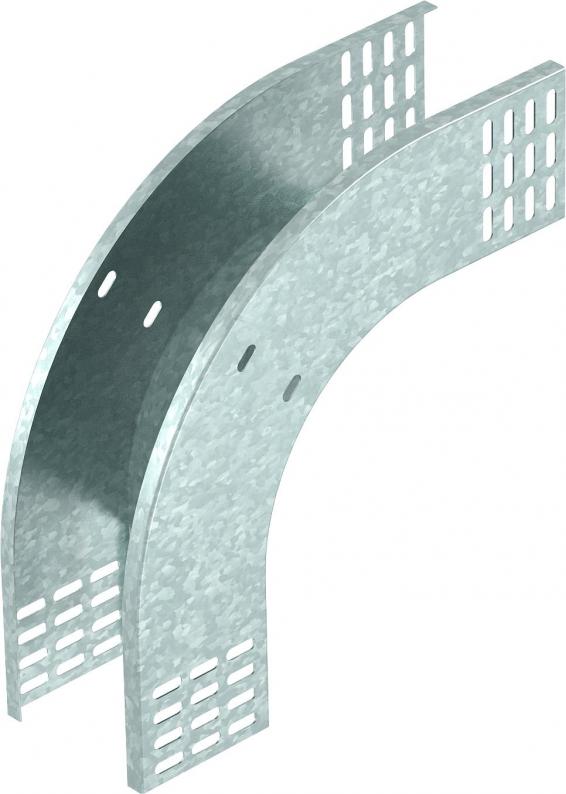

90° vertical bend, falling 85 FS

90° vertical bend, falling 85 FS

Type RBV 810 F FS
|
Item no. 7007270
|
EAN 4012195711636
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

90° vertical bend, falling, for all cable tray types of 85 mm side height.

The vertical bend is pushed over the end of the cable tray and screwed tight.

Fastening materials should be ordered separately.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

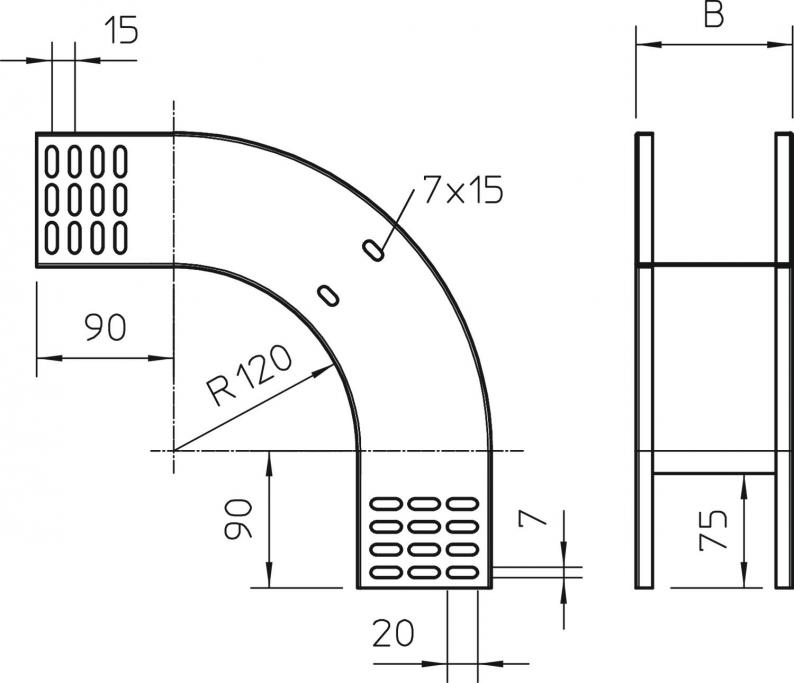

Dimensions

Width100 mm
Height85 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikno
Connector versionWithout connectors
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğino
NATO hole patternno
Dönüş elemanı (L tipi bağlantı)90°
Change of directionVertical, falling
Boyut85x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya3,186 kg CO2e / 1 Piece

Accessories

Mounting accessories
Type
FRSB 6x12 F

Smallest selling unit: 100 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RBV 810 F FS
Item no.
7007270
Width
100
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RBV 820 F FS
Item no.
7007274
Width
200
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RBV 830 F FS
Item no.
7007278
Width
300
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RBV 840 F FS
Item no.
7007282
Width
400
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RBV 850 F FS
Item no.
7007286
Width
500
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RBV 860 F FS
Item no.
7007290
Width
600
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
