90° vertical bend, rising, 35 FS
Type RBV 310 S FS
|Item no. 7007174
|EAN 4012195711421
Item no. / Type
Width
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

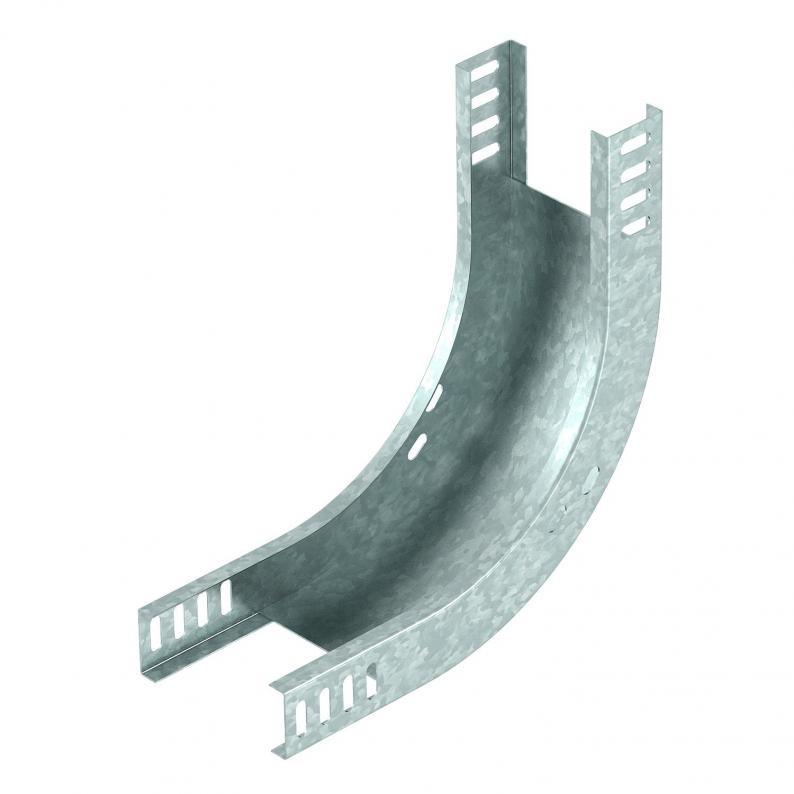

90° rising vertical bend, for all cable tray types of 35 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
Technical data

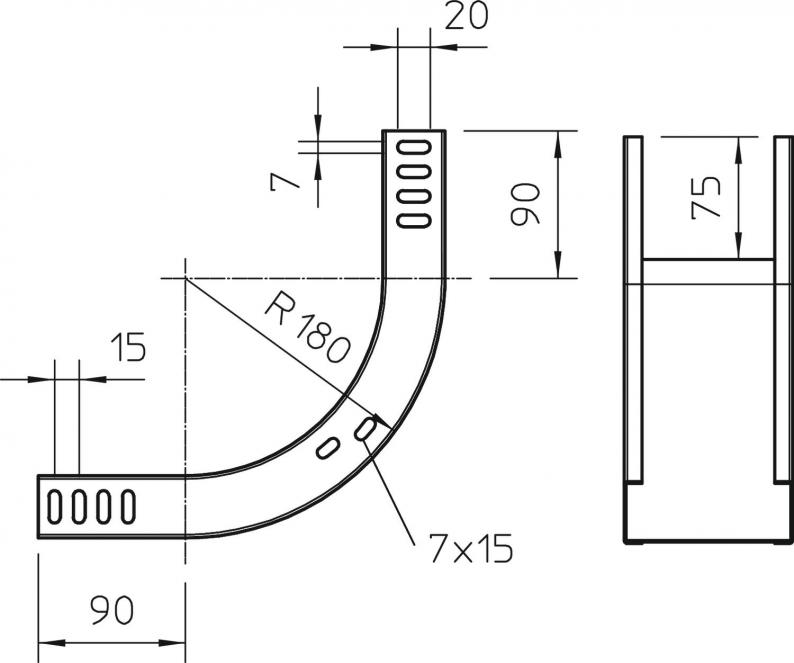

Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1 mm |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Vertical rising |
| Boyut | 35x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,9976 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBV 310 S FS
100
Strip galvanized
Steel
Çinko grisi
7007174
RBV 315 S FS
150
Strip galvanized
Steel
zinc
7007178
RBV 320 S FS
200
Strip galvanized
Steel
Çinko grisi
7007182
RBV 330 S FS
300
Strip galvanized
Steel
zinc
7007186
Width
Colour
RBV 310 S FS
Item no.
7007174
Width
100
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RBV 315 S FS
Item no.
7007178
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
RBV 320 S FS
Item no.
7007182
Width
200
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RBV 330 S FS
Item no.
7007186
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
