90° vertical bend, rising, 35 FT
Type RBV 310 S FT
|Item no. 7007176
|EAN 4012195863236
Item no. / Type
Width
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

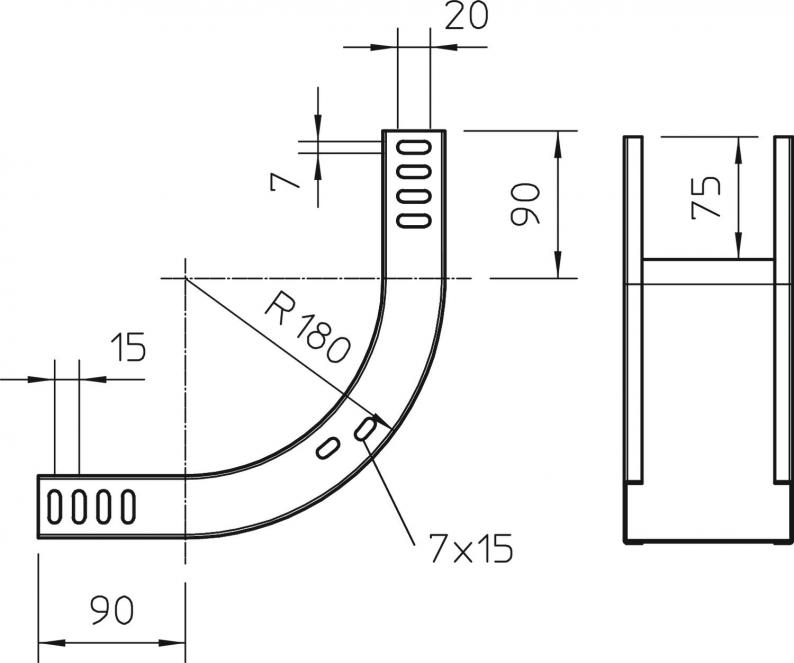

90° rising vertical bend, for all cable tray types of 35 mm side height.
The vertical bend is pushed over the end of the cable tray and screwed tight.
Fastening materials should be ordered separately.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 35 mm |
Technical data
| Connector version | Without connectors |
|---|---|
| Plate thickness | 1 mm |
| Dönüş elemanı (L tipi bağlantı) | 90° |
| Change of direction | Vertical rising |
| Boyut | 35x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,8169 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RBV 310 S FT
100
Hot-dip galvanised
Steel
Çinko grisi
7007176
RBV 320 S FT
200
Hot-dip galvanised
Steel
zinc
7007184
RBV 330 S FT
300
Hot-dip galvanised
Steel
Çinko grisi
7007188
Width
Colour
RBV 310 S FT
Item no.
7007176
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBV 320 S FT
Item no.
7007184
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBV 330 S FT
Item no.
7007188
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
