90° vertical bend, rising, 60 FT

90° vertical bend, rising, 60 FT

Type RBV 610 S FT
|
Item no. 7007006
|
EAN 4012195703730
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

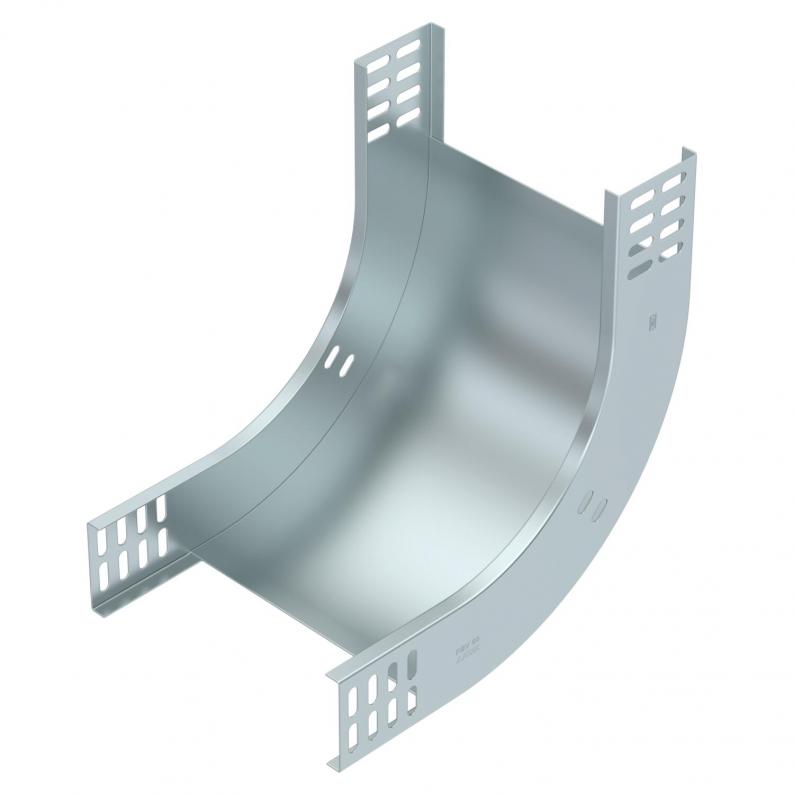

90° rising vertical bend, for all cable tray types of 60 mm side height.

The vertical bend is pushed over the end of the cable tray and screwed tight.

Fastening materials should be ordered separately.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Yan delikno
Connector versionWithout connectors
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğino
NATO hole patternno
Dönüş elemanı (L tipi bağlantı)90°
Change of directionVertical rising
Boyut60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya2,2959 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
RBV 610 S FT
Item no.
7007006
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBV 615 S FT
Item no.
7007010
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBV 620 S FT
Item no.
7007014
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBV 630 S FT
Item no.
7007018
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBV 640 S FT
Item no.
7007022
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBV 650 S FT
Item no.
7007026
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
RBV 660 S FT
Item no.
7007030
Width
600
Surface
Hot-dip galvanised
Material
Steel
Colour
Çinko grisi
