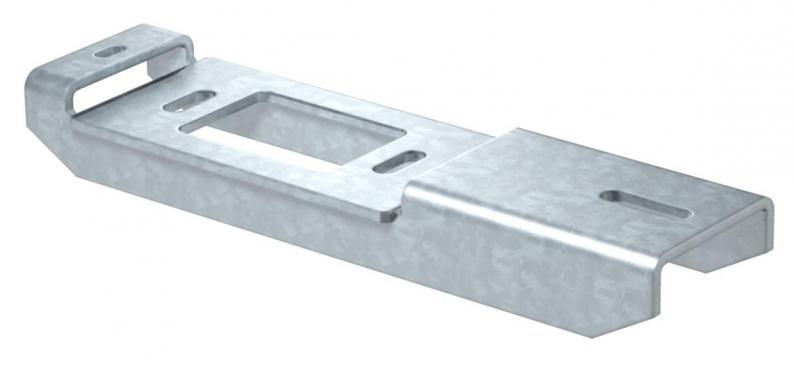

Adapter head plate, asymmetrical
Type KA-ASY FT
|Item no. 6346820
|EAN 4012196346875
Item no. / Type
6346820 / KA-ASY FT
Length
400 mm
Width
120 mm
Height
50 mm
Smallest selling unit: 1 piece
1piece
piece
Description
Adapter head plate, asymmetrical, to increase the load capacity of supports, type US 7 K and IS 8 K.
The adapter head plate increases the load capacity of the IS 8 K and US 7 K supports, taking the characteristic anchor values into account.
Technical data
Dimensions
| Length | 400 mm |
|---|---|
| Width | 120 mm |
| Height | 50 mm |
Technical data
| Dimension | 400x120 |
|---|---|
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
9,4196 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 9,4196 kg CO2e / 1 Piece |
|---|
