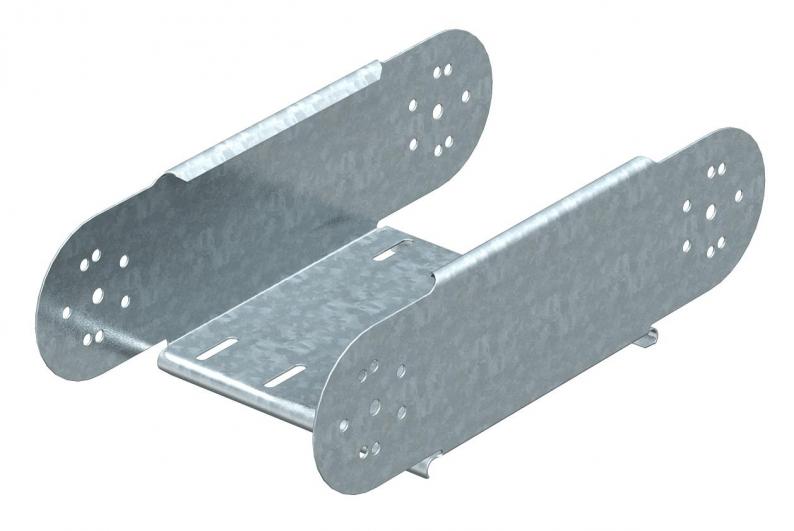

Adjustable bend element, vertical 110 FS

Adjustable bend element, vertical 110 FS

Type RGBEV 110 FS
|
Item no. 7005628
|
EAN 4012196217274
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

Adjustable bend element, vertical, for all cable tray types with a side height of 110 mm.

RGV 110 adjustable connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

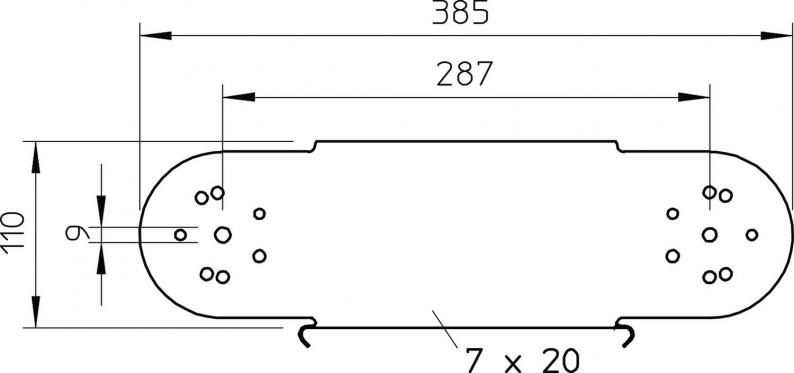

Dimensions

Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Yan delikno
Connector versionWithout connectors
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğino
NATO hole patternno
Dönüş elemanı (L tipi bağlantı)Adjustable
Change of directionVertical, rising/falling
TypeAdjustable bend element
Boyut110x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya3,6411 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Width
RGBEV 110 FS
Item no.
7005628
Width
100
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 115 FS
Item no.
7005636
Width
150
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 120 FS
Item no.
7005644
Width
200
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 130 FS
Item no.
7005660
Width
300
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 140 FS
Item no.
7005687
Width
400
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 150 FS
Item no.
7005709
Width
500
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 160 FS
Item no.
7005723
Width
600
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
