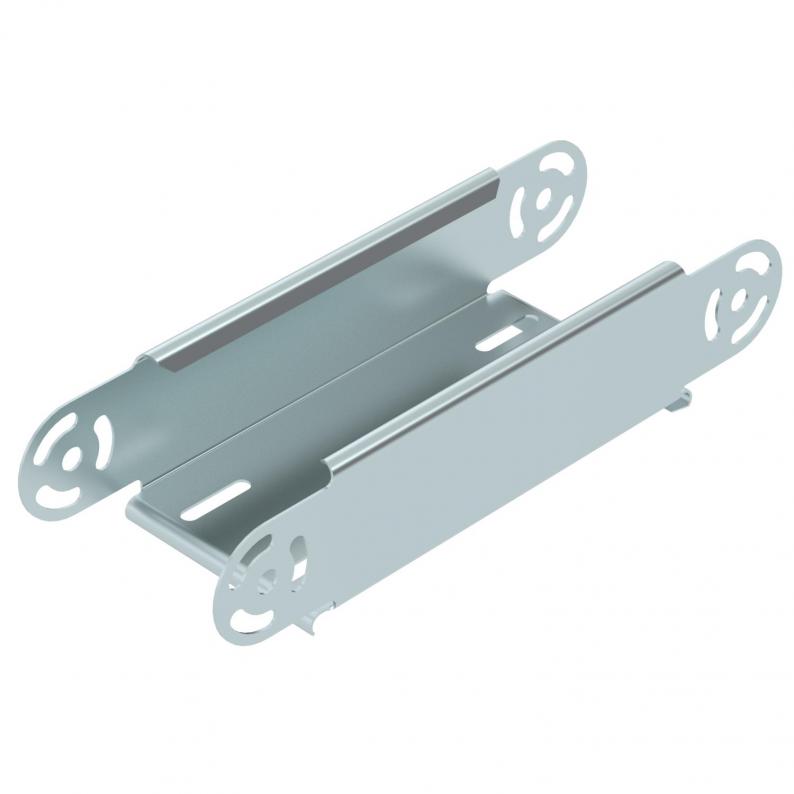

Adjustable bend element, vertical 60 FS

Adjustable bend element, vertical 60 FS

Type RGBEV 610 FS
|
Item no. 7005326
|
EAN 4012196216550
Show all variants
Item no. / Type
Width
Colour

Smallest selling unit: 1 piece

piece

Description

Adjustable vertical bend element, for all cable tray types with a side height of 60 mm.

RGV 60 adjustable connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

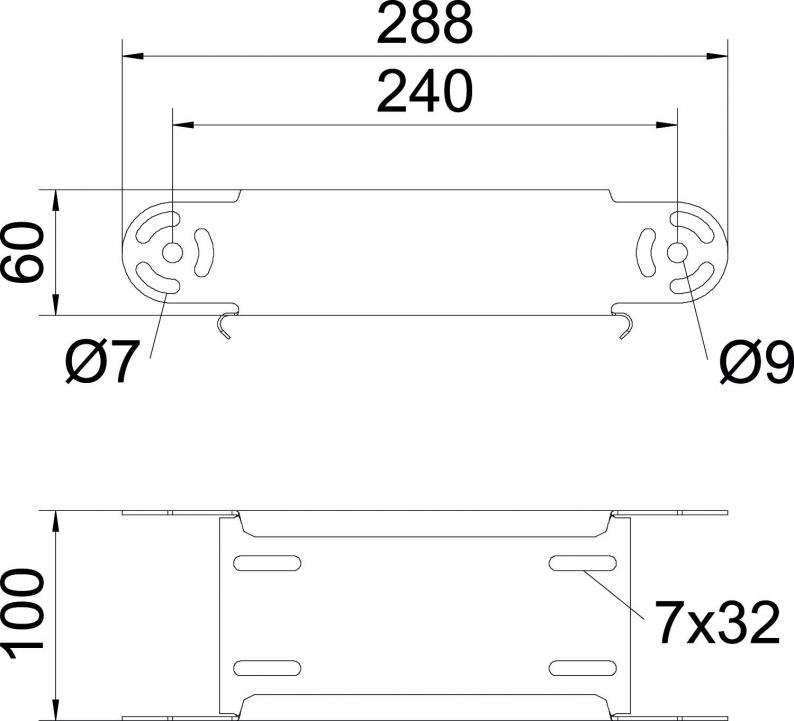

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Yan delikno
Connector versionWithout connectors
Wide-span versionno
Paslanmaz çelik, mordanlıno
Plate thickness1 mm
Tabanda montaj deliğino
NATO hole patternno
Dönüş elemanı (L tipi bağlantı)Adjustable
Change of directionVertical, rising/falling
TypeAdjustable bend element
Boyut60x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Environmental Data

CO2 ayak izi (GWP) beşikten kapıya1,8747 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
Colour
RGBEV 610 FS
Item no.
7005326
Width
100
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 615 FS
Item no.
7005334
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
RGBEV 620 FS
Item no.
7005342
Width
200
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 630 FS
Item no.
7005369
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
RGBEV 640 FS
Item no.
7005385
Width
400
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
RGBEV 650 FS
Item no.
7005407
Width
500
Surface
Strip galvanized
Material
Steel
Colour
zinc
RGBEV 660 FS
Item no.
7005423
Width
600
Surface
Strip galvanized
Material
Steel
Colour
Çinko grisi
