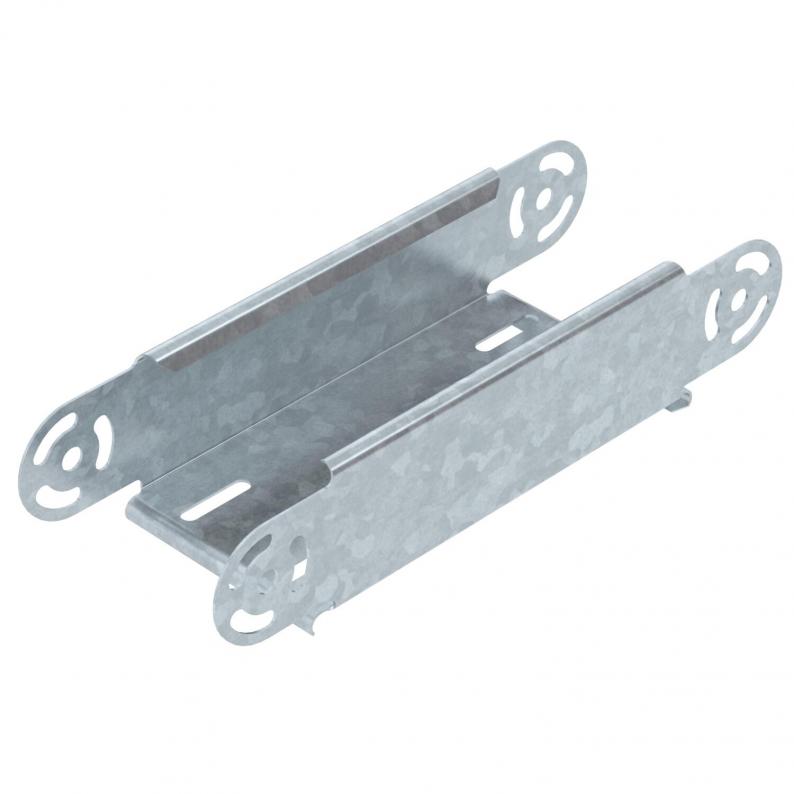

Adjustable bend element, vertical 60 FT
Type RGBEV 610 FT
|Item no. 7075103
|EAN 4012196228072
Item no. / Type
Width
Colour
Smallest selling unit: 1 piece
1piece
piece
Description
Adjustable vertical bend element, for all cable tray types with a side height of 60 mm.
RGV 60 adjustable connectors should be ordered separately and in the appropriate quantity.
Technical data

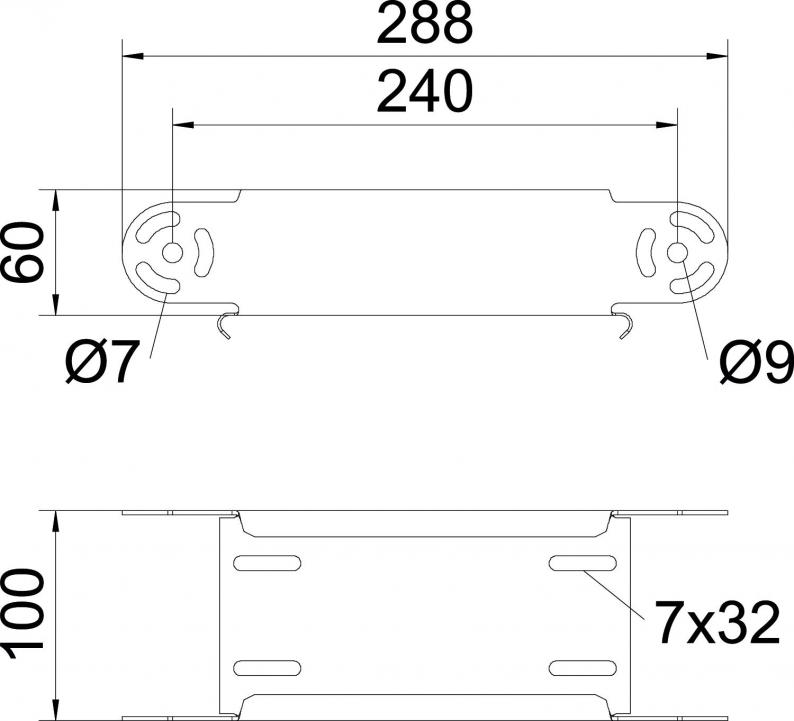

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1 mm |
| Tabanda montaj deliği | no |
| NATO hole pattern | no |
| Dönüş elemanı (L tipi bağlantı) | Adjustable |
| Change of direction | Vertical, rising/falling |
| Type | Adjustable bend element |
| Boyut | 60x100 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 1,6933 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Surface
Material
Colour
Item no.
RGBEV 610 FT
100
Hot-dip galvanised
Steel
Çinko grisi
7075103
RGBEV 615 FT
150
Hot-dip galvanised
Steel
zinc
7075154
RGBEV 620 FT
200
Hot-dip galvanised
Steel
Çinko grisi
7075200
RGBEV 630 FT
300
Hot-dip galvanised
Steel
zinc
7075308
RGBEV 640 FT
400
Hot-dip galvanised
Steel
Çinko grisi
7075405
RGBEV 650 FT
500
Hot-dip galvanised
Steel
zinc
7075502
RGBEV 660 FT
600
Hot-dip galvanised
Steel
Çinko grisi
7075596
