Beam clamp with pressure plate, horizontal BFK 153 A2

Type BFKD 153 44 A2
|
Item no. 6003887
|
EAN 4012196625352
Item no. / Type
6003887 / BFKD 153 44 A2
Dimension b
101 mm

Smallest selling unit: 10 piece

piece

Description

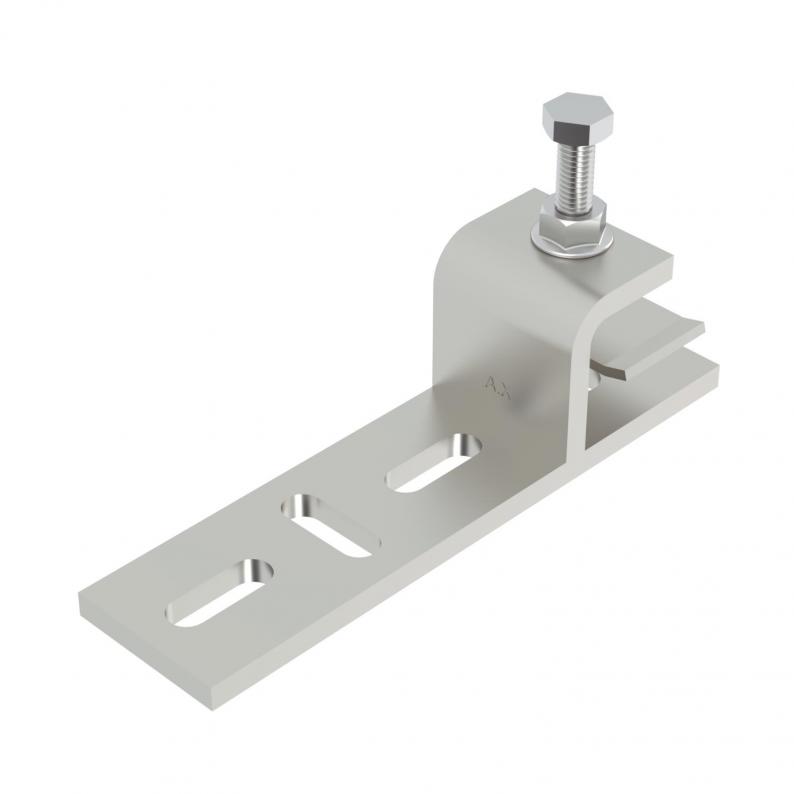

Fastening clamp with pressure plate for clamping on the steel girder.

The cable support system attached to the fastening clamp runs horizontally.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

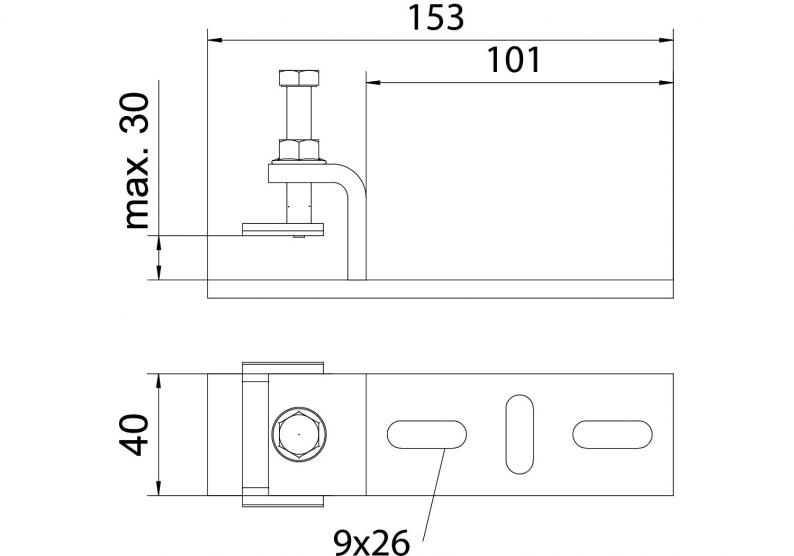

Dimensions

Width153 mm
Height28 mm
Dimension B153 mm
Dimension b101 mm
Dimension B1101 mm

Technical data

Maintain electrical functionsno
Material thickness6 mm
Ayarlanabiliryes
With screw accessoriesno
Suitable for profile shapesC profile
Version forMiscellaneous
Boyut153x40x44mm
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya2,4909 kg CO2e / 1 Piece
