Bi-metal roof gutter clamp for all bead thicknesses
Type 262 ZM
|Item no. 5316170
|EAN 4012195818359
Item no. / Type
5316170 / 262 ZM
Uyumluluk
Rd 8-10 mm
Smallest selling unit: 10 piece
10piece
piece
Description

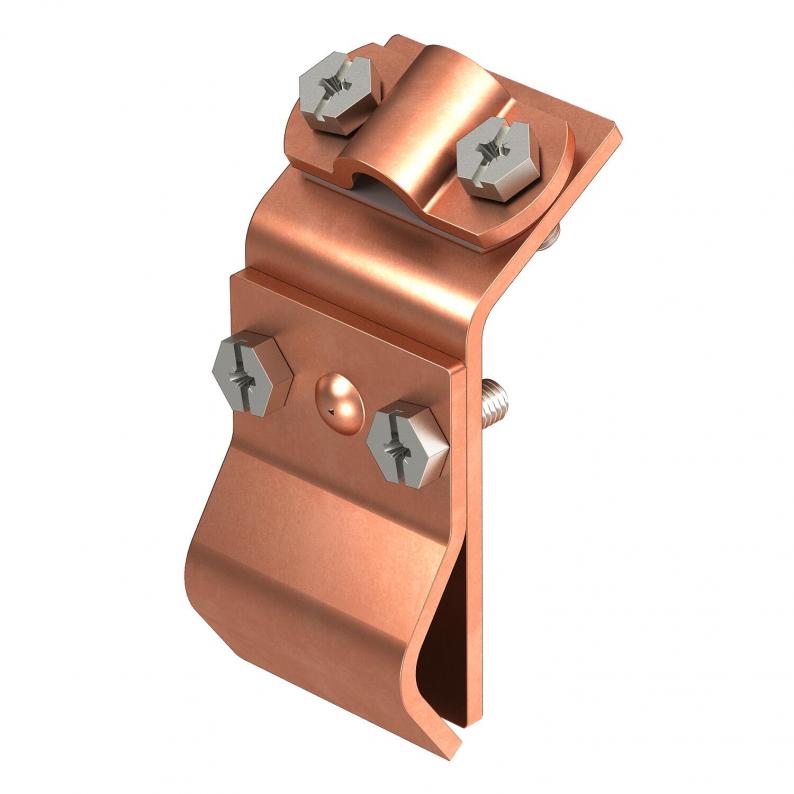

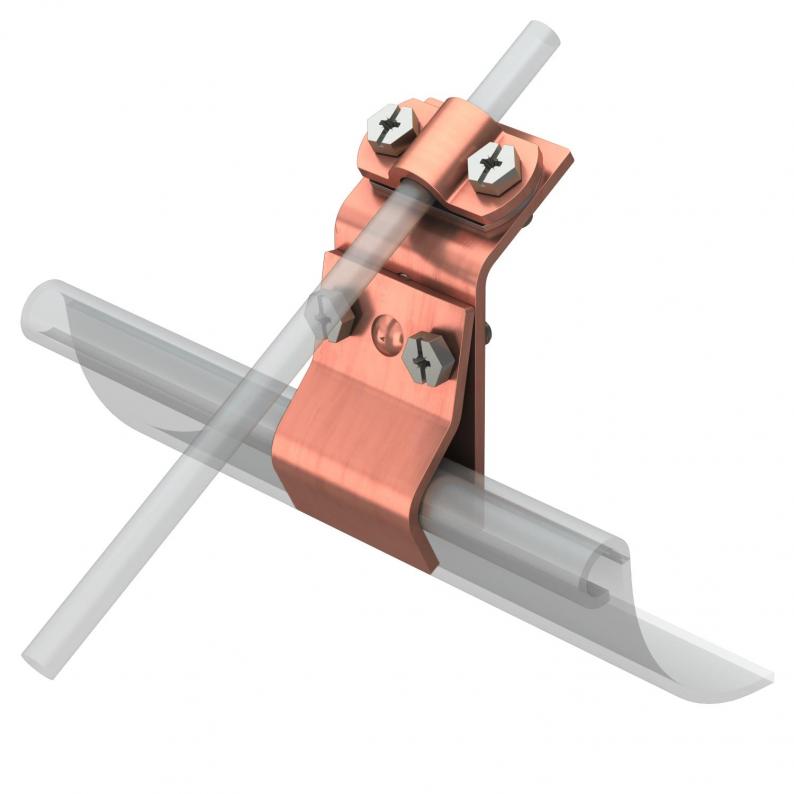

Gutter clamp to connect round conductors to roof gutters
• Suitable for all bead thicknesses
• Bi-metal for connection of aluminium or hot-dip galvanised steel round conductors to copper roof gutters, without corrosion of the different metals
• Suitable for all bead thicknesses
• Bi-metal for connection of aluminium or hot-dip galvanised steel round conductors to copper roof gutters, without corrosion of the different metals
Technical data
Technical data
| Type of fastening screw | Hexagonal bolt |
|---|---|
| Type of connector | Roof gutter clamp |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 8mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,8017 kg CO2e / 1 Piece |
|---|
