Bolt for separating retainer fastening, KRS 6x30

Bolt for separating retainer fastening, KRS 6x30

Type KRS 6x30
|
Item no. 3498100
|
EAN 4012195850069
Show all variants
Item no. / Type
3498100 / KRS 6x30

Smallest selling unit: 200 piece

piece

Description

Bolt with special milling ribs for PYROLINE® Con S fire protection ducts, to fasten separating retainers in the duct.
  • Suspended fire protection duct, ceiling mounting E30
  • Suspended fire protection duct, ceiling mounting I90
  • Suspended fire protection duct, wall mounting I90
  • Suspended fire protection duct, wall mounting E30

Technical data

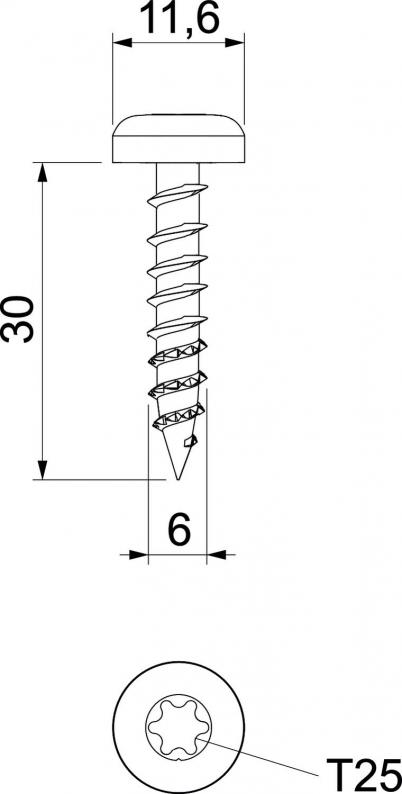

Dimensions

Dimension L30 mm
Dimension d6 mm
Dimension D11,6 mm

Technical data

Thread diameter ST6
Head shapeMiscellaneous
Screw systemTorx
Boyut6x30
SurfaceElectrogalvanized, transparently passivated
MaterialSteel
ColourÇinko grisi

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
