C mesh cable tray CGR 50 A2
Type CGR 50 50 A2
|Item no. 6016200
|EAN 4012196012671
Item no. / Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Tel çapı
Smallest selling unit: 3 m
3m
m
Description

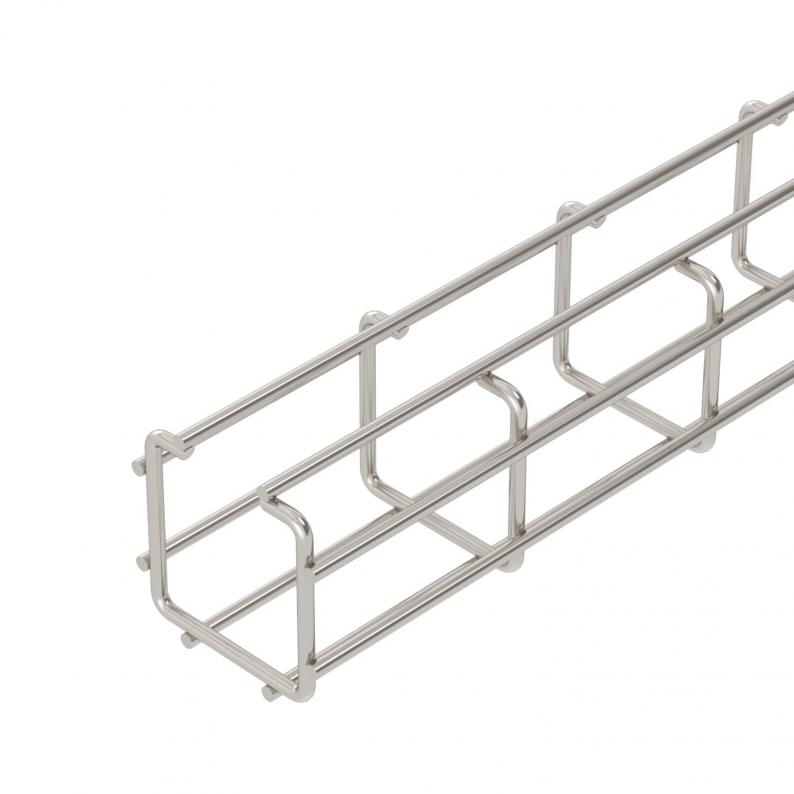

C-shaped mesh cable tray made of spot-welded steel wire of side height 50 mm.
Magnetic shield insulation 15 dB.
Magnetic shield insulation 15 dB.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 50 mm |
| Dimension A | 26 mm |
| Dimension B | 67 mm |
| Dimension H | 67 mm |
| Dimension l1 | 30 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 13 cm² |
| Paslanmaz çelik, mordanlı | yes |
| Usable cross-section | 1300 mm² |
| Integrated partition | Without |
| Profile shape | C-shaped |
| Tel çapı | 4,5 mm |
| Boyut | 50x50x3000 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Destek aralığı 1,0m | 0,95 kN/m |
|---|---|
| Destek aralığı 1,5m | 0,6 kN/m |
| Destek aralığı 2,0m | 0,35 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 6,8716 kg CO2e / 1 Meter |
|---|
