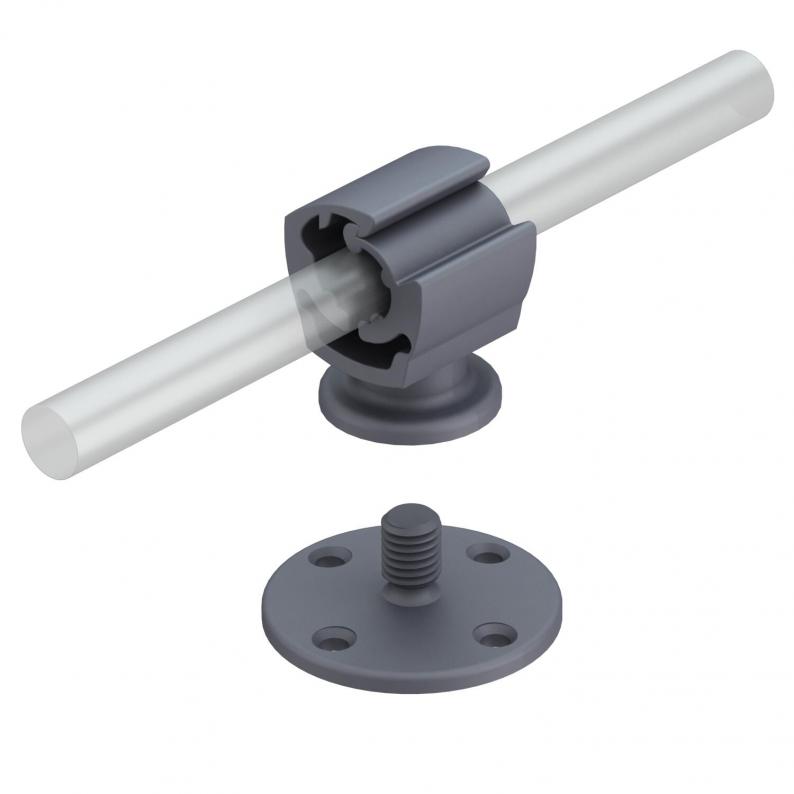

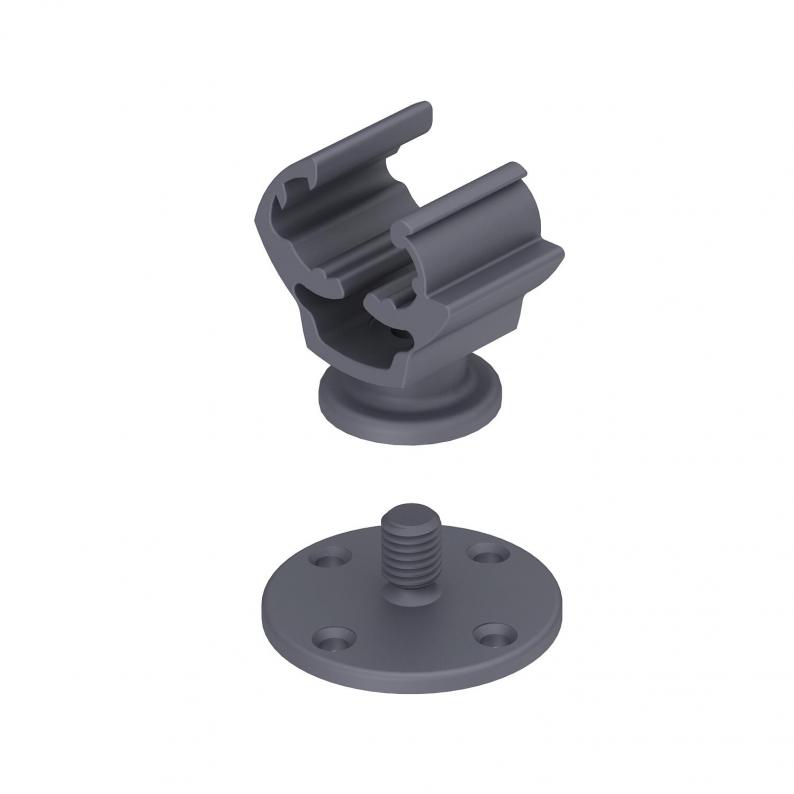

Cable bracket, Rd 8−10 mm with bonding base
Type 177 20 KL
|Item no. 5207451
|EAN 4012195009726
Item no. / Type
5207451 / 177 20 KL
Montaj yüksekliği
25 mm
Smallest selling unit: 50 piece
50piece
piece
Description
• For bonding to concrete, steel or smooth substrates
• Not suitable for rough surfaces such as plaster, wood, bitumen strips
• Processing at > +15 °C and on cleaned substrate
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
• Use on film roofs after consultation with the responsible roof construction company
• Not suitable for rough surfaces such as plaster, wood, bitumen strips
• Processing at > +15 °C and on cleaned substrate
• When installing flat conductors and round conductors, expansion elements are to be used for thermal compensation
• Use on film roofs after consultation with the responsible roof construction company
Technical data
Technical data
| Montaj yüksekliği | 25 mm |
|---|---|
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Polyamide |
| Material of the base | Polyamide |
| Conductor fastening type | With clip |
| Use in Ex area | yes |
| Material of the holder | Polyamide |
| Boyut | M8 |
| Material | Polyamide |
Dimensions
| Dimension H | 25 mm |
|---|
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0668 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
