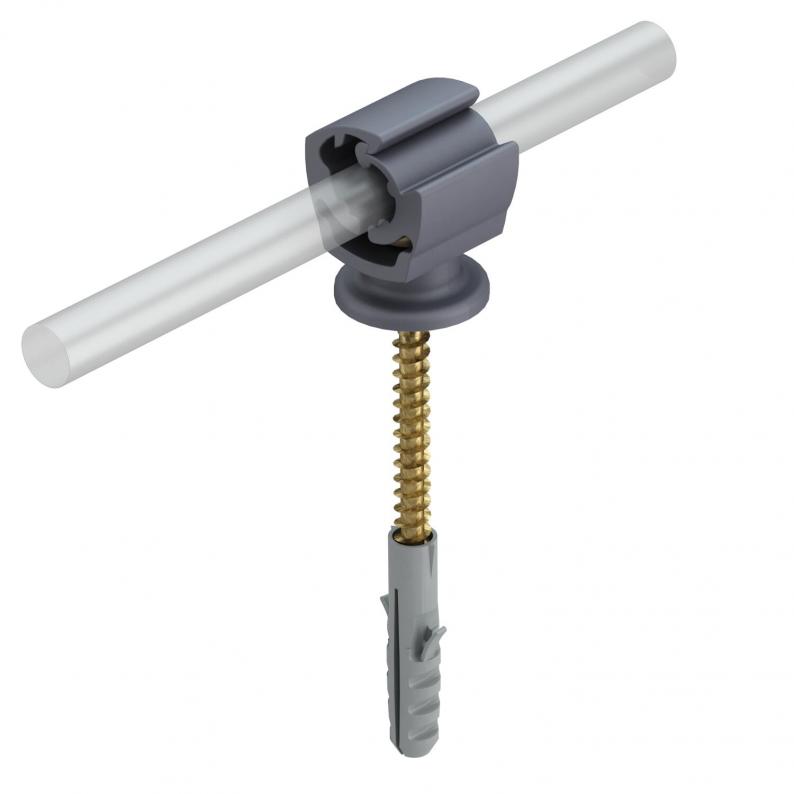

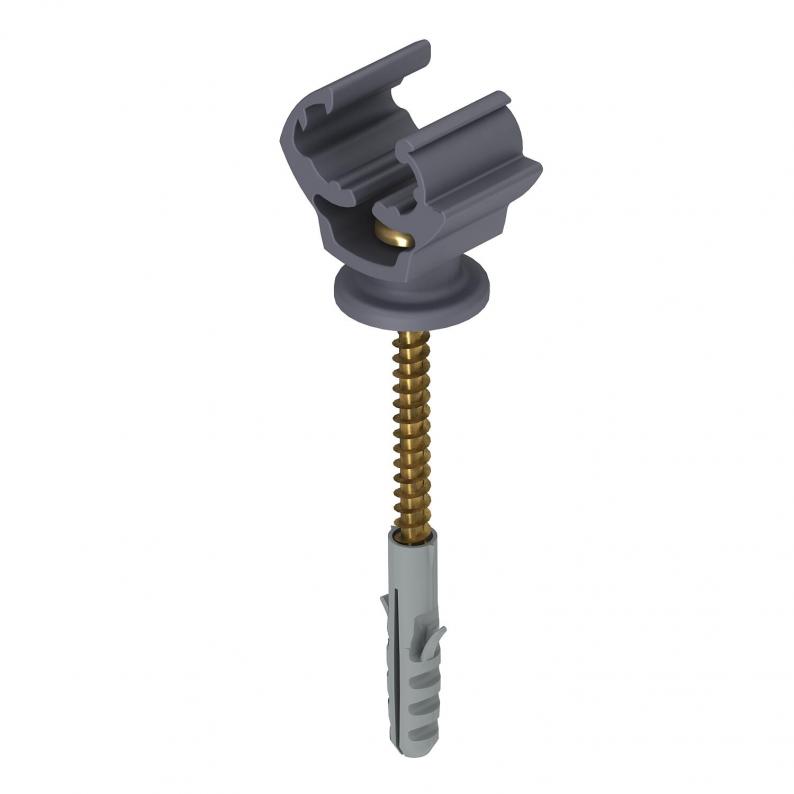

Cable bracket Rd 8−10 mm with pre-mounted wood screw
Type 177 B-HD20
|Item no. 5207851
|EAN 4012195336433
Item no. / Type
Montaj yüksekliği
Smallest selling unit: 50 piece
50piece
piece
Description
• With female thread M8 for screwing and through hole for wood screws
• For round conductor Rd 8-10
• Weather and temperature-resistant from -35 °C to +90 °C
• With pre-mounted wood screws (5 x 60) and plastic dowels (8 x 40)
• For round conductor Rd 8-10
• Weather and temperature-resistant from -35 °C to +90 °C
• With pre-mounted wood screws (5 x 60) and plastic dowels (8 x 40)

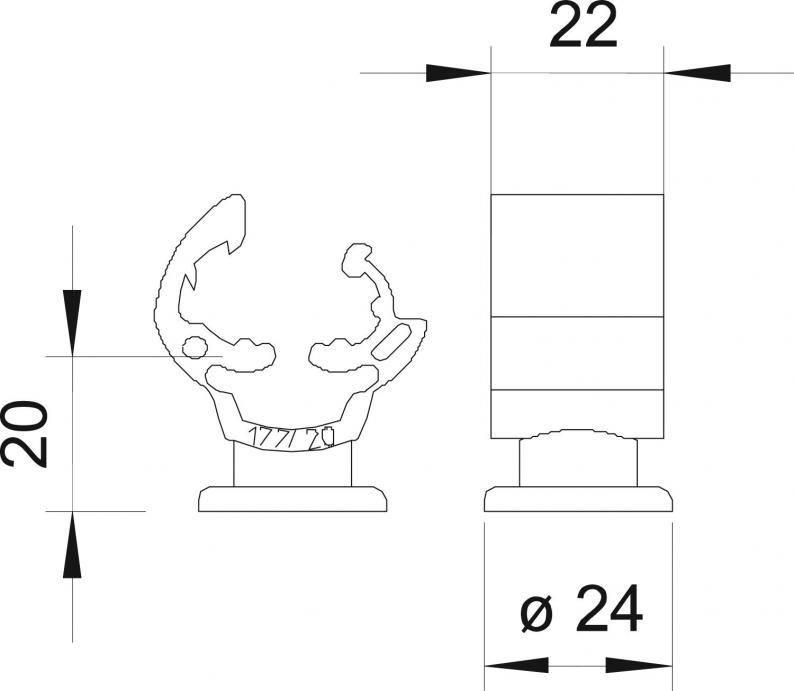

Technical data
Technical data
| Montaj yüksekliği | 20 mm |
|---|---|
| Thread metric | 8 |
| Cable dimensions | 8−10 mm round |
| Holder fastening type | Drill hole with M-thread |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Polyamide |
| Material of the base | Polyamide |
| Conductor fastening type | With clamp clip |
| Material of the holder | Polyamide |
| Uyumluluk | Rd 8-10 mm |
| Boyut | 20mm |
| Material | Polyamide |
| Colour | Grey |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,0571 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Montaj yüksekliği
Cable dimensions
Item no.
177 B-HD20
20
8−10 mm round
5207851
177 B-HD30
30
8−10 mm round
5207878
Montaj yüksekliği
177 B-HD20
Item no.
5207851
Montaj yüksekliği
20
Cable dimensions
8−10 mm round
177 B-HD30
Item no.
5207878
Montaj yüksekliği
30
Cable dimensions
8−10 mm round
