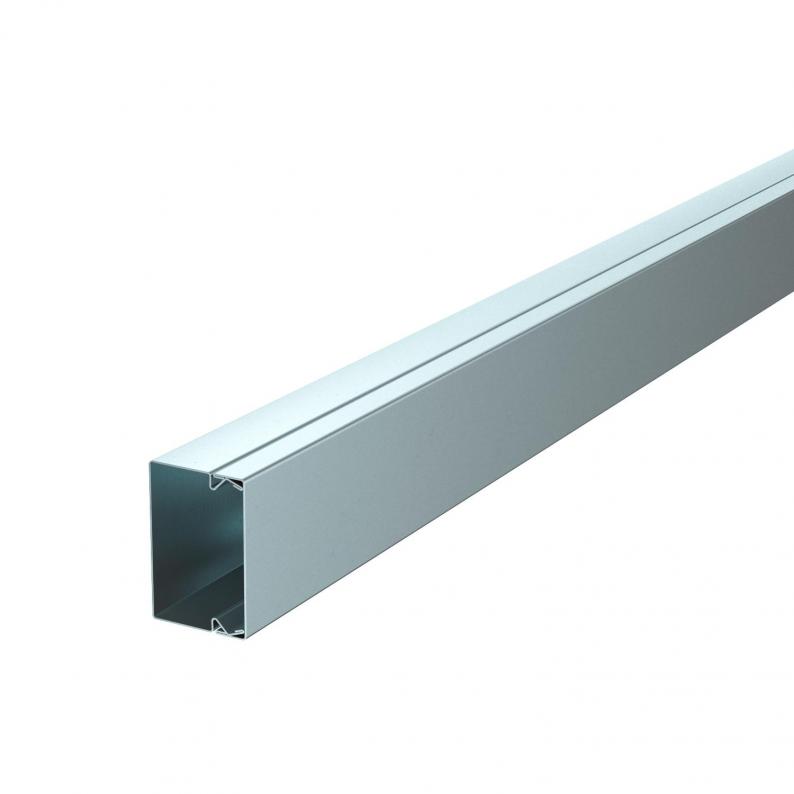

Cable duct, type LKM 40060
Type LKM40060FS
|Item no. 6247016
|EAN 4012196311897
Item no. / Type
Length
Width
Height
Surface
Smallest selling unit: 2 m
2m
m
Description
Duct cover and base with base perforation.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Technical data

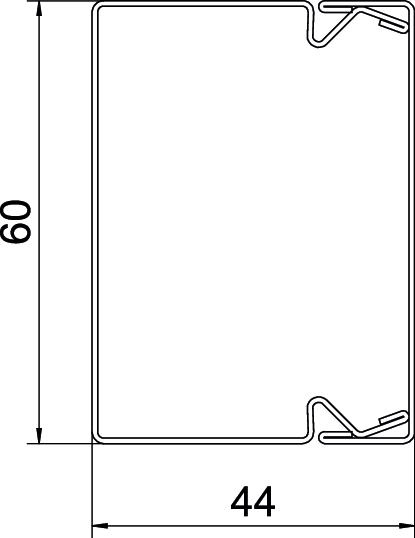

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 60 mm |
| Height | 44 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| NYM tipi kablo sayısı 3 x 1,5 mm² Ø 10,5 mm (kutusuz) | 10 |
| NYM tipi kablo sayısı 5 x 1,5 mm² Ø 12,0 mm (kutusuz) | 8 |
| NYM tipi kablo sayısı 3 x 2,5 mm² Ø 11,5 mm (kutusuz) | 10 |
| Usable cross-section | 2380 mm² |
| Halojen İçermez | yes |
| Sabit seperatör sayısı | 0 |
| Geçmeli seperatör sayısı | 0 |
| Kablo tutucu mandal | no |
| Koruyucu folyo | no |
| Kanal bağlantı elemanı | no |
| Koruma sınıfı | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK10 |
| Transparent | no |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Taban deliği | with base perforation |
| Kullanılabilir sıcaklık aralığı min. | -5 °C |
| Kullanılabilir sıcaklık aralığı maks. | 90 °C |
| Boyut | 40x60x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Antibacterial treatment | no |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 ayak izi (GWP) beşikten kapıya | 0,238 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
LKM KSR40060
6249750
Smallest selling unit: 5 piece
5piece
piece
LKM E40060FS
6247903
Smallest selling unit: 10 piece
10piece
piece
LKM EK40060
6249780
Smallest selling unit: 5 piece
5piece
piece
LKM A40060FS
6247571
Smallest selling unit: 1 piece
1piece
piece
LKM F40060FS
6247504
Smallest selling unit: 1 piece
1piece
piece
Item no. 6249750
Edge protection ring KSR 40060, for LKM cable duct type 40060Type
LKM KSR40060
Smallest selling unit: 5 piece
5piece
piece
Item no. 6247903
End piece, for cable trunking type LKM 40060Type
LKM E40060FS
Smallest selling unit: 10 piece
10piece
piece
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Surface
Material
Item no.
LKM40060FS
2000
60
44
Strip galvanized
Steel
6247016
LKM40060RW
2000
60
44
Strip galvanized / plastic coated
Steel
6248519
Surface
LKM40060FS
Item no.
6247016
Length
2000
Width
60
Height
44
Surface
Strip galvanized
Material
Steel
LKM40060RW
Item no.
6248519
Length
2000
Width
60
Height
44
Surface
Strip galvanized / plastic coated
Material
Steel
