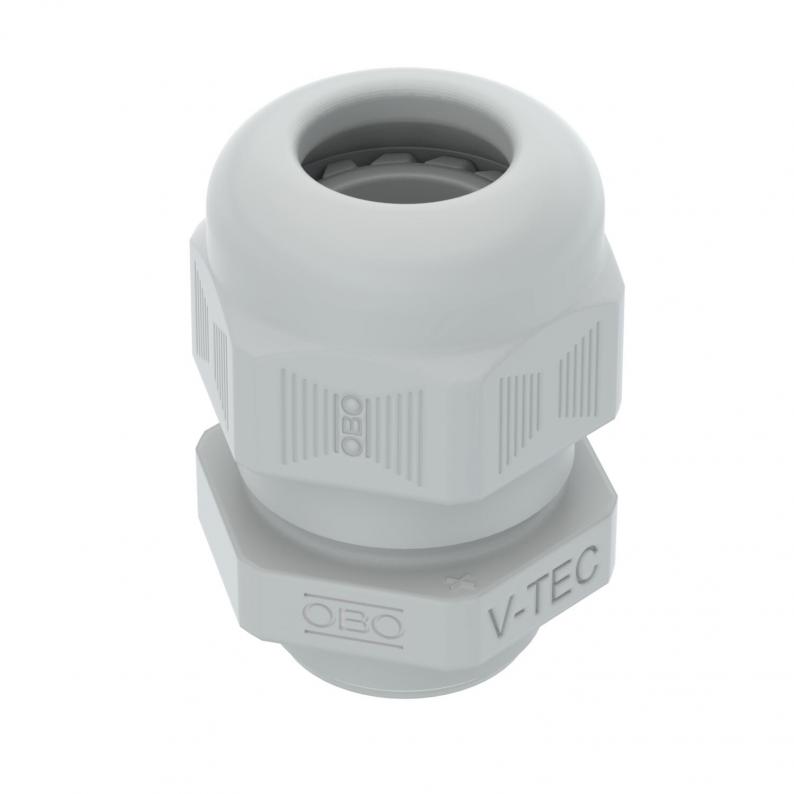

Cable gland, metric thread, short, light grey

Cable gland with short metric connection thread in cap nut design, suitable for junction boxes with metric connection thread. Strain relief, torsion protection and tightness over the whole clamping area. Sealing ring made of polychloroprene/acrylonitrile butadiene rubber. Moulded shaped sealing lip on intermediate support, thus no connection thread sealing ring required, VDE-tested to DIN EN 50262, protection rating IP68 at 5 bar 1 h. Temperature range –20 °C to +65 °C.
Table column D: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: sealing range including strain relief and twist protection to VDE 0619
