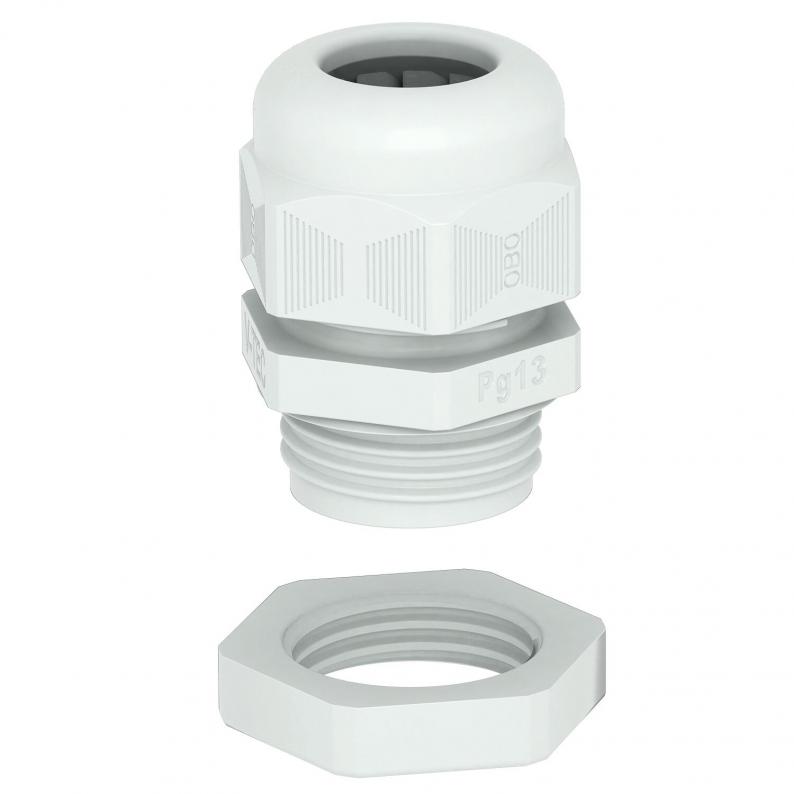

Cable gland, PG thread, set with locknut, light grey
Type V-TEC PG7+ LGR
|Item no. 2024655
|EAN 4012195861003
Item no. / Type
Vida dişi
Smallest selling unit: 50 piece
50piece
piece
Description
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
Table column D1: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: Sealing range including strain relief and twist protection to VDE 0619
Table column D1: sealing range to VDE 0619, in which no strain relief is required.
Table column D2: Sealing range including strain relief and twist protection to VDE 0619
Technical data
Technical data
| Darbeye dayanıklı | hayır |
|---|---|
| Halojen İçermez | evet |
| Cam elyafı takviyeli | hayır |
| Patlamaya karşı korumalı | hayır |
| Çekme yükü azaltma imkanı | evet |
| Koruma sınıfı | IP68 |
| Vida dişi | Pg 7 |
| For Ex zone | Yok |
| Thread type | PG |
| Bend protection | hayır |
| With locknut | evet |
| Sealing insert, multiple | hayır |
| Flat cable gland | hayır |
| Type of seal | Sealing ring |
| Splittable gland | hayır |
| For Ex zone gas | Yok |
| For Ex zone dust | Yok |
| Thread increase | 1,5 mm |
| Nominal thread size | 7 |
| Hexagonal corner dimension | 16,5 mm |
| Sızdırmazlık alanı D min. | 2,5 mm |
| Sızdırmazlık alanı D maks. | 6,5 mm |
| Ölçü E1 (mm) | 16,5 mm |
| Dimension E2 | 21 mm |
| Version for | Düz |
| Vida dişi uzunluğu | 8 mm |
| WAF 1 | 15 mm |
| WAF 2 | 19 mm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 65 °C |
| Boyut | PG7 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
Dimensions
| Dimension L min. | 18 mm |
|---|---|
| Dimension L max. | 23 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 5 mm |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,03 kg CO2e / 1 Adet |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Product images (2)
Tender specifications (1)
Variants
Type
Vida dişi
Sealing insert, multiple
Colour
Item no.
V-TEC PG7+ LGR
Pg 7
hayır
Light grey; RAL 7035
2024655
V-TEC PG9+ LGR
Pg 9
hayır
Light grey; RAL 7035
2024657
V-TEC PG11+ LGR
Pg 11
hayır
Light grey; RAL 7035
2024659
V-TEC PG13,5+LGR
Pg 13,5
hayır
Light grey; RAL 7035
2024661
V-TEC PG16+ LGR
Pg 16
hayır
Light grey; RAL 7035
2024663
V-TEC PG21+ LGR
Pg 21
hayır
Light grey; RAL 7035
2024665
V-TEC PG29+ LGR
Pg 29
hayır
Light grey; RAL 7035
2024667
V-TEC PG36+ LGR
Pg 36
hayır
Light grey; RAL 7035
2024669
V-TEC PG42+ LGR
Pg 42
hayır
Light grey; RAL 7035
2024671
V-TEC PG48+ LGR
Pg 48
hayır
Light grey; RAL 7035
2024673
