Cable gland, PG thread, silver grey
Type V-TEC PG7 SGR
|Item no. 2022605
|EAN 4012195160694
Item no. / Type
Vida dişi
Smallest selling unit: 50 piece
50piece
piece
Description
Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Technical data
Technical data
| Darbeye dayanıklı | hayır |
|---|---|
| Halojen İçermez | evet |
| Cam elyafı takviyeli | hayır |
| Patlamaya karşı korumalı | hayır |
| Çekme yükü azaltma imkanı | evet |
| Koruma sınıfı | IP68 |
| Vida dişi | Pg 7 |
| For Ex zone | Yok |
| Thread type | PG |
| Bend protection | hayır |
| With locknut | hayır |
| Sealing insert, multiple | hayır |
| Flat cable gland | hayır |
| Type of seal | Sealing ring |
| Splittable gland | hayır |
| For Ex zone gas | Yok |
| For Ex zone dust | Yok |
| Thread increase | 1,41 mm |
| Nominal thread size | 7 |
| Hexagonal corner dimension | 16,5 mm |
| Sızdırmazlık alanı D min. | 2,5 mm |
| Sızdırmazlık alanı D maks. | 6,5 mm |
| WAF | 15 |
| Version for | Düz |
| Vida dişi uzunluğu | 8 mm |
| Unstable torque | 1,67 Nm |
| Kullanılabilir sıcaklık aralığı min. | -20 °C |
| Kullanılabilir sıcaklık aralığı maks. | 65 °C |
| Boyut | PG7 |
| Material | Polyamide |
| Colour | Silver grey; RAL 7001 |

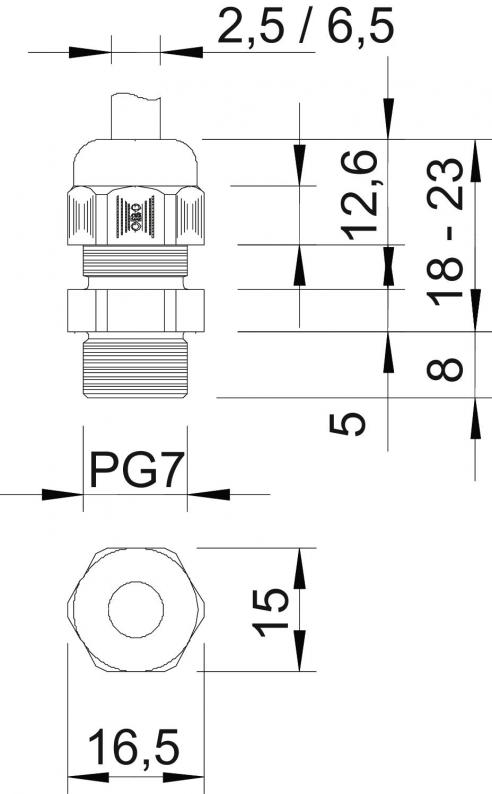

Dimensions
| Dimension L min. | 18 mm |
|---|---|
| Dimension L max. | 23 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 12,6 mm |
| Dimension E | 16,5 mm |
Environmental Data
| Packaging without plastic | evet |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 0,0225 kg CO2e / 1 Adet |
|---|
Accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Vida dişi
Sealing insert, multiple
Colour
Item no.
V-TEC PG7 SGR
Pg 7
hayır
Silver grey; RAL 7001
2022605
V-TEC PG9 SGR
Pg 9
hayır
Silver grey; RAL 7001
2022613
V-TEC PG11 SGR
Pg 11
hayır
Silver grey; RAL 7001
2022621
V-TEC PG13.5 SGR
Pg 13,5
hayır
Silver grey; RAL 7001
2022648
V-TEC PG16 SGR
Pg 16
hayır
Silver grey; RAL 7001
2022656
V-TEC PG21 SGR
Pg 21
hayır
Silver grey; RAL 7001
2022664
V-TEC PG29 SGR
Pg 29
hayır
Silver grey; RAL 7001
2022672
V-TEC PG36 SGR
Pg 36
hayır
Silver grey; RAL 7001
2022680
V-TEC PG42 SGR
Pg 42
hayır
Silver grey; RAL 7001
2022699
V-TEC PG48 SGR
Pg 48
hayır
Silver grey; RAL 7001
2022702
