Cable ladder LG 110, 3 m VS FT
Type LG 112 VS 3 FT
|Item no. 6216423
|EAN 4012195065210
Item no. / Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı
Smallest selling unit: 3 m
3m
m
Description

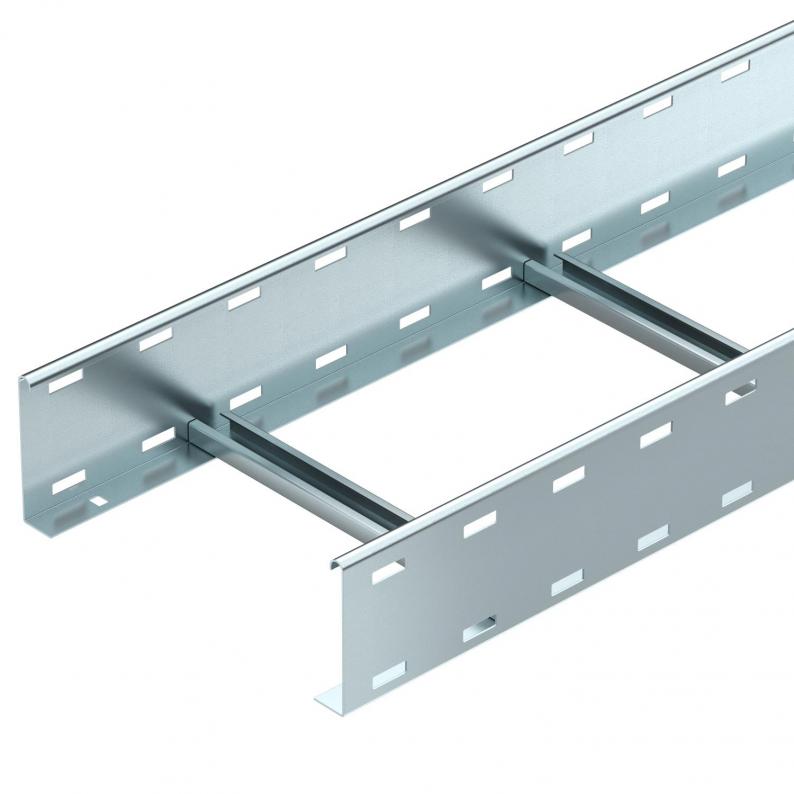

Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
The cable ladder is shipped folded up.
You can find the appropriate type 2056 clamp clip in the vertical ladder systems section.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 110 mm |
| Dimension B | 200 mm |
| Rung slot dimension | 16,50 |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Wide-span version | no |
| Usable cross-section | 188 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 18800 mm² |
| Çerçeve mesafesi | 300 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Blind riveted |
| Ölçü | 110x200x3000 |
| Yan parça kalınlığı | 1,5 mm |
| Boyut | 110x200x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Loads
| Destek aralığı 2,0m | 3,1 kN/m |
|---|---|
| Destek aralığı 2,5m | 2 kN/m |
| Destek aralığı 3,0m | 1,4 kN/m |
| Destek aralığı 3,5m | 0,9 kN/m |
| Destek aralığı 4,0m | 0,65 kN/m |
| Destek aralığı 4,5m | 0,55 kN/m |
| Destek aralığı 5,0m | 0,5 kN/m |
| Destek aralığı 6,0m | 0,15 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 8,764 kg CO2e / 1 Meter |
|---|
