Cable ladder LG 45, 3 m FS
Type LG 420 NS 3 FS
|Item no. 6200508
|EAN 4012195063483
Item no. / Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı
This item is a discontinued product!
Smallest selling unit: 3 m
3m
m
Description

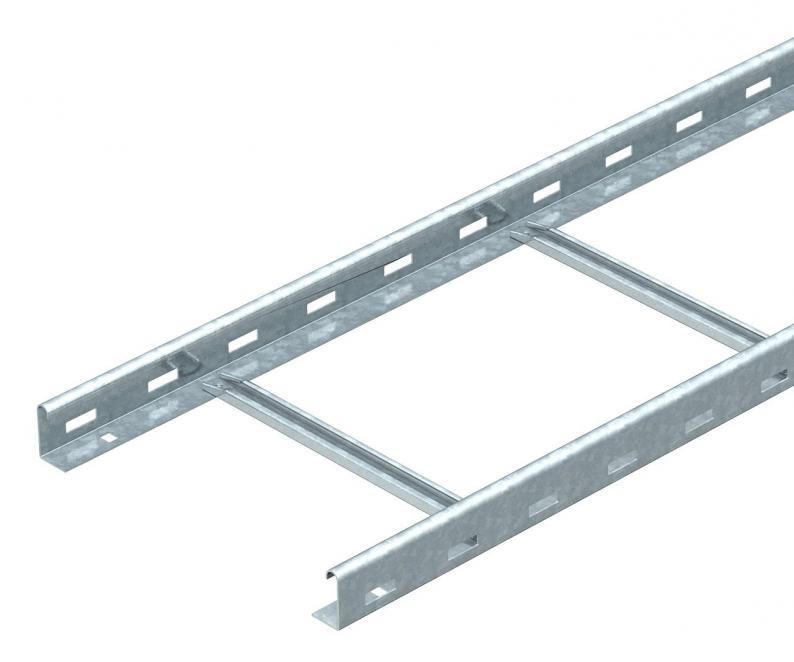

Cable ladder with perforated side rail of side height 45 mm with riveted C profile rungs, open in an upwards direction.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
The cable ladder is shipped folded up.
You can find the appropriate U clamp of type 2056/N in the vertical ladder systems chapter.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 45 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Wide-span version | no |
| Usable cross-section | 68 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 6800 mm² |
| Çerçeve mesafesi | 300 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Blind riveted |
| Duvar tipi | Profile (open) |
| Ölçü | 45x200x3000 |
| Yan parça kalınlığı | 1,25 mm |
| Boyut | 45x200x3000 |
| Surface | Strip galvanized |
| Material | Steel |
Loads
| Destek aralığı 1,5m | 1,8 kN/m |
|---|---|
| Destek aralığı 2,0m | 1,4 kN/m |
| Destek aralığı 2,5m | 1 kN/m |
| Destek aralığı 3,0m | 0,55 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| CO2 ayak izi (GWP) beşikten kapıya | 4,4372 kg CO₂e / 1 Meter |
|---|
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı
Surface
Material
Item no.
LG 420 NS 3 FS
3000
200
hayır
1,25
Strip galvanized
Steel
6200508
LG 430 NS 3 FS
3000
300
no
1,25
Strip galvanized
Steel
6200511
LG 440 NS 3 FS
3000
400
hayır
1,25
Strip galvanized
Steel
6200514
LG 450 NS 3 FS
3000
500
no
1,25
Strip galvanized
Steel
6200517
LG 460 NS 3 FS
3000
600
no
1,25
Strip galvanized
Steel
6200520
