Cable ladder LG 60, 6 m VS FT
Type LG 620 VS 6 FT
|Item no. 6208650
|EAN 4012195064329
Item no. / Type
Length
Width
Maintain electrical functions
Yan parça kalınlığı
Smallest selling unit: 6 m
6m
m
Description

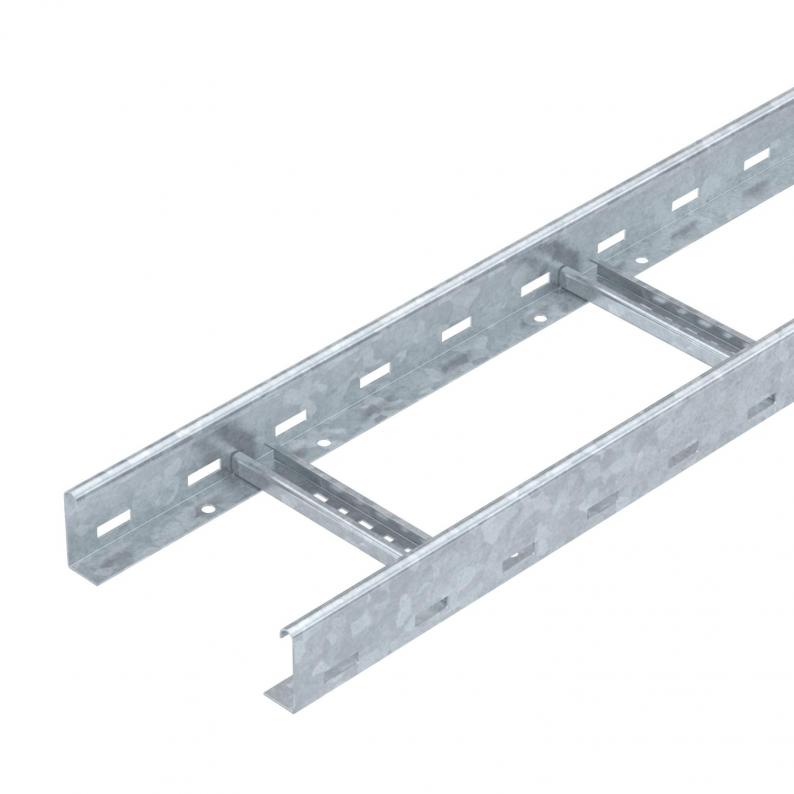

Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
The cable ladder is shipped folded up.
You can find the appropriate clamp clip of type 2056 in the Ladder systems section.
Technical data
Dimensions
| Length | 6000 mm |
|---|---|
| Width | 200 mm |
| Height | 60 mm |
| Dimension B | 200 mm |
| Rung slot dimension | 16,50 |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Yan delik | yes |
| Wide-span version | no |
| Usable cross-section | 98 cm² |
| Paslanmaz çelik, mordanlı | no |
| Usable cross-section | 9800 mm² |
| Çerçeve mesafesi | 300 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Blind riveted |
| Ölçü | 60x200x6000 |
| Yan parça kalınlığı | 1,5 mm |
| Boyut | 60x200x6000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Fire protection | Maintenance of electrical function of standard support structure |
Loads
| Destek aralığı 1,5m | 3,1 kN/m |
|---|---|
| Destek aralığı 2,0m | 2,25 kN/m |
| Destek aralığı 2,5m | 1,5 kN/m |
| Destek aralığı 3,0m | 1,1 kN/m |
| Destek aralığı 3,5m | 0,75 kN/m |
| Destek aralığı 4,0m | 0,45 kN/m |
| Destek aralığı 4,5m | 0,3 kN/m |
| Destek aralığı 5,0m | 0,15 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Test yönteminde yük şeması
mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi
Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 6,1866 kg CO2e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (5)
Certificates (5)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
