Cable ladder with trapezoidal rungs, light duty ALU
Type SL 42 100 ALU
|Item no. 7099724
|EAN 4012196509881
Item no. / Type
Length
Width
Rail thickness
This item is a discontinued product!
Smallest selling unit: 2 m
2m
m
Description

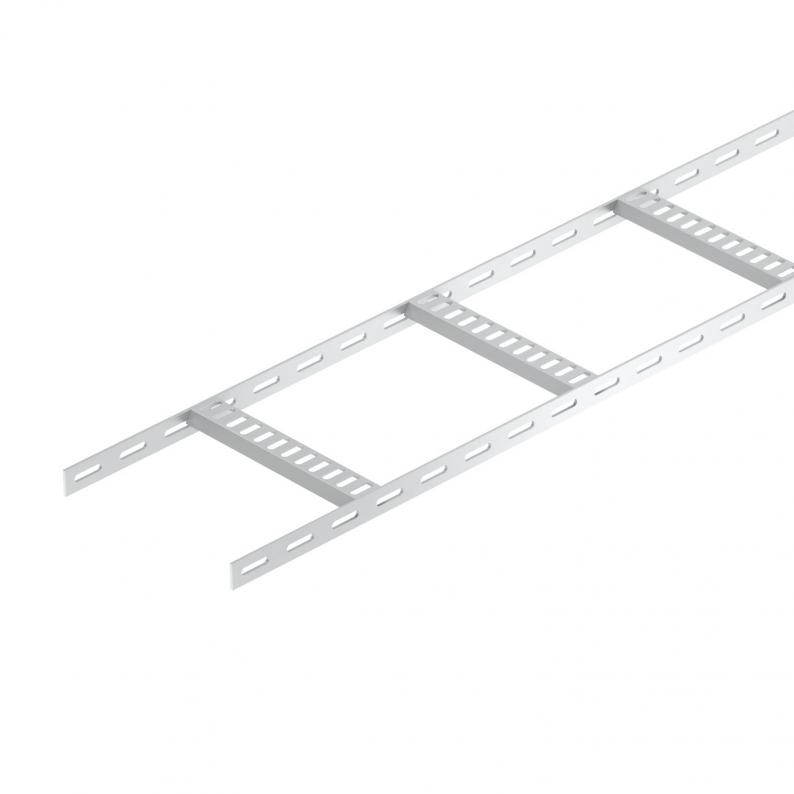

Shipbuilding cable ladder with perforated side rail of side height 25 mm with welded, perforated trapezoidal rungs which open in a downwards direction.
The shipbuilding cable ladder is also available in unpainted steel on request.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 100 mm |
| Height | 25 mm |
| Dimension B | 106 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Rung distance | 250 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Welded |
| Rail thickness | 3 mm |
| Dimension | 25x106x2000 |
| Surface | Pickled |
| Material | Aluminium |
| Colour | aluminium |
Loads
| Support spacing 1.0 m | 0,75 kN/m |
|---|---|
| Support spacing 1.5 m | 0,2 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Load scheme during testing
Environmental Data
7,2475 kg CO₂e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 7,2475 kg CO₂e / 1 Meter |
|---|
