Cable tray DKS 85 FT
Type DKS 830 FT
|Item no. 6086519
|EAN 4012196071296
Item no. / Type
Length
Width
Maintain electrical functions
Plate thickness
This item is a discontinued product!
Smallest selling unit: 3 m
3m
m
Description

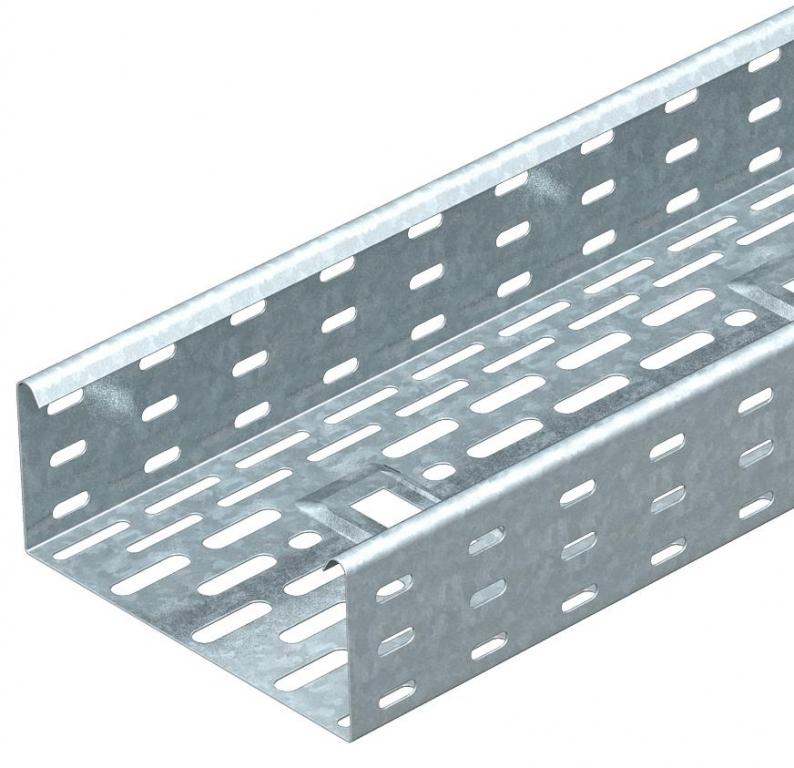

DKS 85 = perforated cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Permeable cable tray system to VdS guideline 2092 with 30% hole surface for use under sprinkler systems.
Bottom penetration from width 200 mm.
Connecting parts should be ordered in the appropriate quantity.
Technical data

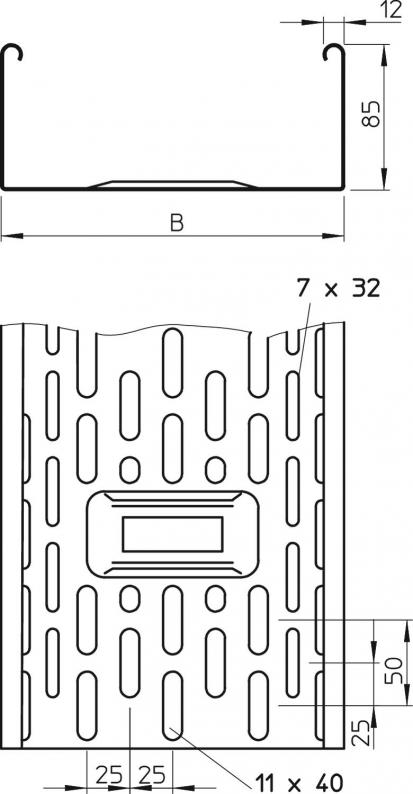

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 300 mm |
| Height | 85 mm |
| Dimension B | 300 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Yan delik | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 253 cm² |
| Paslanmaz çelik, mordanlı | no |
| Plate thickness | 1 mm |
| Tabanda montaj deliği | yes |
| NATO hole pattern | no |
| Usable cross-section | 25300 mm² |
| Üst parçalı | no |
| Ölçü | 85 x 300 |
| Boyut | 85x300x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Sprinkler system use | yes |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Destek aralığı 1,5m | 2 kN/m |
|---|---|
| Destek aralığı 1,75m | 1,5 kN/m |
| Destek aralığı 2,0m | 1,1 kN/m |
| Destek aralığı 2,5m | 0,65 kN/m |
| Destek aralığı 3,0m | 0,5 kN/m |
Destekler arası mesafe, m
Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak
Permitted cable tray/ladder load in kN/m without man load
Environmental Data
| EPD-verified | yes |
|---|---|
| Expiry date EPD | 10.07.2029 |
| Declaration number EPD | EPD-KTO-17.0 |
| Unit base EPD | 1 running metre + mounting system |
| EPD GWP (outside of the system limits) | 18.83 kg CO₂e |
| EPD GWP (disposal phase) | 1.97 kg CO₂e |
| EPD GWP (manufacturing phase) | 81.32 kg CO₂e |
| EPD standard / LCA standard (norms) | DIN EN ISO 14025,EN 15804 + A2 |
| CO2 ayak izi (GWP) beşikten kapıya | 8,897 kg CO₂e / 1 Meter |
|---|
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6067816
Straight and angle connector FTType
RLVL 85 FT
Smallest selling unit: 10 piece
10piece
piece
Downloads
0 selected
Data sheet (1)
Declarations (3)
Certificates (1)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
DKS 810 FT
3000
100
hayır
1
Hot-dip galvanised
Steel
6086470
DKS 830 FT
3000
300
hayır
1
Hot-dip galvanised
Steel
6086519
DKS 840 FT
3000
400
hayır
1,5
Hot-dip galvanised
Steel
6086659
DKS 850 FT
3000
500
hayır
1,5
Hot-dip galvanised
Steel
6086675
DKS 860 FT
3000
600
hayır
1,5
Hot-dip galvanised
Steel
6086691
Width
Plate thickness
DKS 810 FT
Item no.
6086470
Length
3000
Width
100
Maintain electrical functions
hayır
Plate thickness
1
Surface
Hot-dip galvanised
Material
Steel
DKS 830 FT
Item no.
6086519
Length
3000
Width
300
Maintain electrical functions
hayır
Plate thickness
1
Surface
Hot-dip galvanised
Material
Steel
DKS 840 FT
Item no.
6086659
Length
3000
Width
400
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
DKS 850 FT
Item no.
6086675
Length
3000
Width
500
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
DKS 860 FT
Item no.
6086691
Length
3000
Width
600
Maintain electrical functions
hayır
Plate thickness
1,5
Surface
Hot-dip galvanised
Material
Steel
