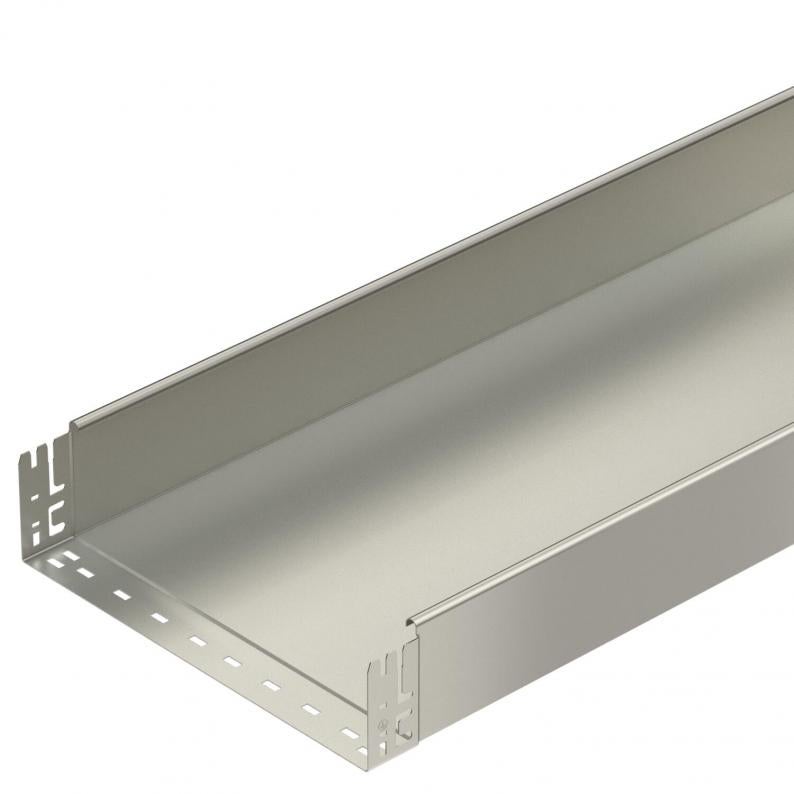

Cable tray MKS-Magic® 110, unperforated A2

Cable tray MKS-Magic® 110, unperforated A2

Type MKSMU 140 A2
|
Item no. 6059424
|
EAN 4012195832317
Show all variants
Item no. / Type
Length
Width
Height
Plate thickness

Smallest selling unit: 3 m

m

Description

Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

The continuous equipotential bonding is guaranteed without additional components.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3050 mm
Width400 mm
Height110 mm
Dimension B400 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Usable cross-section438 cm²
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Usable cross-section43800 mm²
With coverno
Dimension110x400x3050
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Load test type according to IEC 61537Type II
Usable length3000 mm
Type of connector, cable support systemClick fastening

Loads

Support spacing 1.5 m1,85 kN/m
Support spacing 2.0 m1,3 kN/m
Support spacing 2.5 m0,75 kN/m
Support spacing 3.0 m0,6 kN/m
Load diagram, cable tray, type MKSMU 110

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Environmental Data

28,8355 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 Footprint (GWP) Cradle-to-Gate28,8355 kg CO2e / 1 Meter
