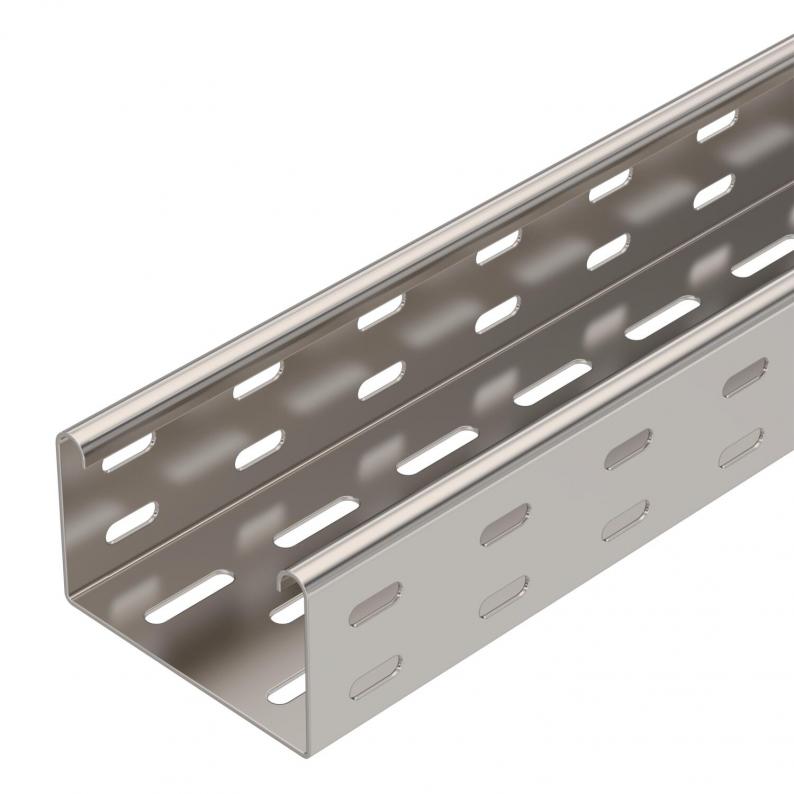

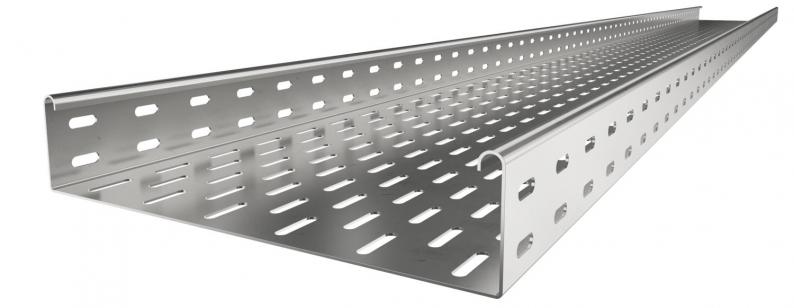

Cable tray SKS 60 A4

Cable tray SKS 60 A4

Type SKS 610 A4
|
Item no. 6056750
|
EAN 4012196050048
Show all variants
Item no. / Type
Length
Width
Maintain electrical functions
Plate thickness

Smallest selling unit: 3 m

m

Description

SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

The cable tray, type SKS, should also be used for maintenance of electrical function. For additional data, please refer to BSS fire protection systems. The cable tray is fastened to the bracket with bolts, type FRS M6 x 12.

  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

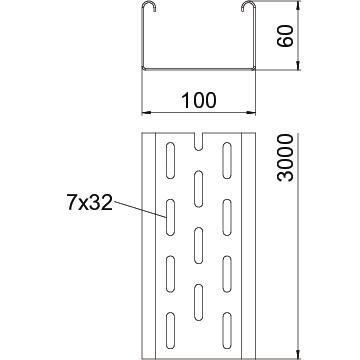

Dimensions

Length3000 mm
Width100 mm
Height60 mm
Dimension B100 mm
Dimension W100 mm

Technical data

Maintain electrical functionsyes
Yan delikyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section58 cm²
Paslanmaz çelik, mordanlıno
Plate thickness1,5 mm
Tabanda montaj deliğiyes
NATO hole patternno
Usable cross-section5800 mm²
Üst parçalıno
Boyut60x100x3000
SurfaceBright, treated
MaterialStainless steel 1.4571
Colourstainless steel
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed

Loads

Destek aralığı 1,5m2,65 kN/m
Destek aralığı 2,0m1,8 kN/m
Destek aralığı 2,5m1,15 kN/m
Destek aralığı 3,0m0,5 kN/m
Load diagram, cable tray, type SKS 60 VA

Permitted cable tray/ladder load in kN/m without man load

Destekler arası mesafe, m

Müsaade edilen kN/m'de yan taşıyıcı profilde oluşan eğilme miktarı mm olarak

Test yönteminde yük şeması

mm olarak kablo kanalı/merdiveni genişliği ile yük eğrisi

Destek aralığına bağlı olarak yan taşıyıcı profilin eğilme miktarı eğrisi

Environmental Data

EPD-verifiedyes
Expiry date EPD10.07.2029
Declaration number EPD EPD-KTO-17.0
Unit base EPD1 running metre + mounting system
EPD GWP (outside of the system limits)18.83 kg CO₂e
EPD GWP (disposal phase)1.97 kg CO₂e
EPD GWP (manufacturing phase)81.32 kg CO₂e
EPD standard / LCA standard (norms)DIN EN ISO 14025,EN 15804 + A2
CO2 ayak izi (GWP) beşikten kapıya13,8216 kg CO2e / 1 Meter

Accessories

System accessories

Item no. 6067675

Straight connector A4
Type
RLVK 60 A4

Smallest selling unit: 10 piece

piece

Item no. 7070390

Joint plate A4
Type
SSLB 100 A4

Smallest selling unit: 20 piece

piece

Item no. 6036650

90° bend 60 A4
Type
RB 90 610 A4

Smallest selling unit: 1 piece

piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (5)
Certificates (1)
Instructions and Aid (3)
Product images (3)
3D data downloads (2)
Tender specifications (1)

Variants

Width
Maintain electrical functions
SKS 610 A4
Item no.
6056750
Length
3000
Width
100
Maintain electrical functions
evet
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 620 A4
Item no.
6056755
Length
3000
Width
200
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 630 A4
Item no.
6056757
Length
3000
Width
300
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 640 A4
Item no.
6056759
Length
3000
Width
400
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 650 A4
Item no.
6056761
Length
3000
Width
500
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
SKS 660 A4
Item no.
6056763
Length
3000
Width
600
Maintain electrical functions
yes
Plate thickness
1,5
Surface
Bright, treated
Material
Stainless steel 1.4571
