Ceiling fastening for service poles
Type ISS160160DB WA
|Item no. 6290436
|EAN 4012196191529
Item no. / Type
6290436 / ISS160160DB WA
Length
403 mm
Smallest selling unit: 1 piece
1piece
piece
Description

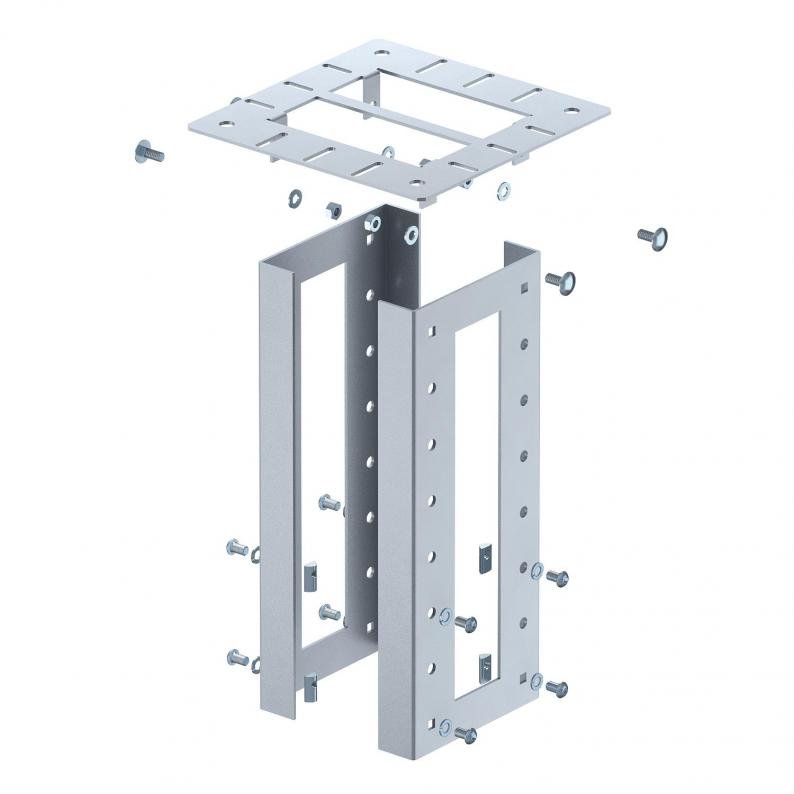

Ceiling fastening for fixing the ISS service pole to the ceiling. The scope of delivery comprises of two U-shaped profiles made from 3 mm sheet steel, the fastening plate for the ceiling and the required installation accessories, including the groove rail. The ceiling fastening can be height-adjusted on the pole profile.
Technical data

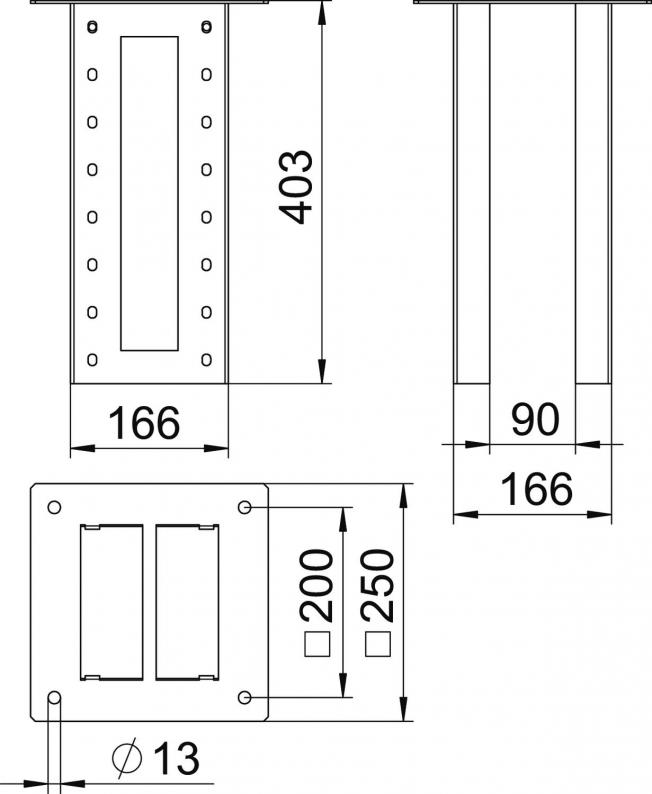

Dimensions
| Length | 403 mm |
|---|---|
| Width | 250 mm |
| Height | 250 mm |
Technical data
| Halojen İçermez | yes |
|---|---|
| Koruma sınıfı | IP30 |
| Protection rating IK code | IK10 |
| Fastening type | Bolts |
| Kullanılabilir sıcaklık aralığı min. | -25 °C |
| Kullanılabilir sıcaklık aralığı maks. | 60 °C |
| Boyut | 403x250x250 |
| Material | Steel |
| Colour | White aluminium; RAL 9006 |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 ayak izi (GWP) beşikten kapıya | 19,3012 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
