Centre suspension mesh cable tray FS

Centre suspension mesh cable tray FS

Type GMA M6 FS
|
Item no. 6015220
|
EAN 4012196421695
Show all variants
Item no. / Type
Length
Width
Hole diameter
Colour

Smallest selling unit: 25 piece

piece

Description

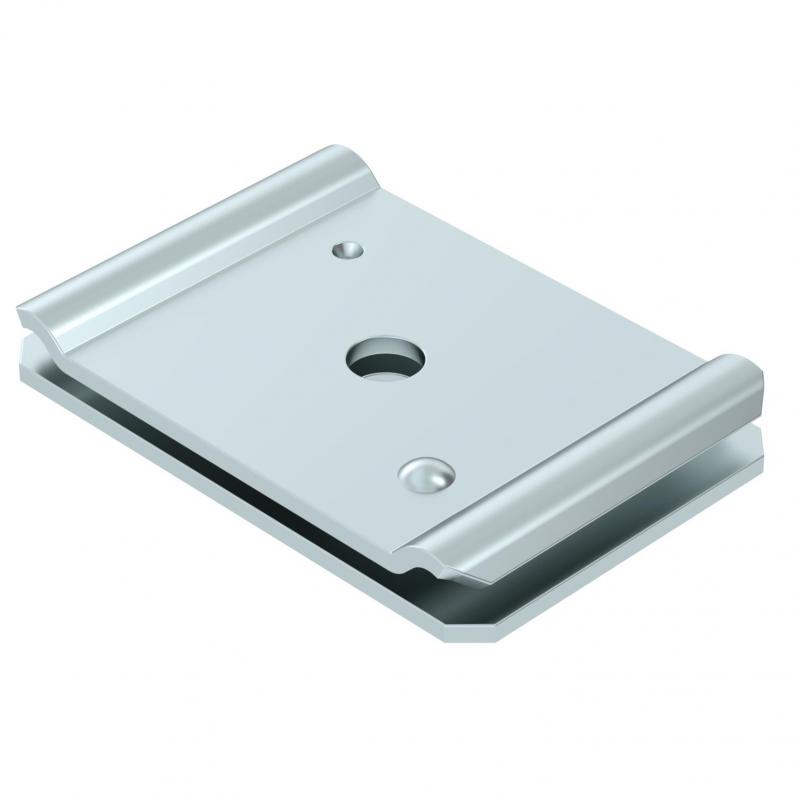

Two-part centre suspension of mesh cable trays.

When filling with cables, please ensure an even distribution. The maximum recommended mesh cable tray width is 200 mm.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • UKCA declaration of conformity
  • Kablo kanallarına ait orta askı braketi
  • Kafes kablo kanalı, kenar yüksekliği 55 mm
  • Kafes kablo kanalı, kenar yüksekliği 105 mm
  • Kafes kablo kanalı, kenar yüksekliği 35 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length65 mm
Width40 mm
Height10,1 mm

Technical data

Maintain electrical functionsno
Ayarlanabilirno
Hole diameter7 mm
Version forSuspended
Boyut60x40
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,2202 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Hole diameter
Colour
GMA M6 FS
Item no.
6015220
Length
65
Width
40
Hole diameter
7
Colour
Çinko grisi
GMA M8 FS
Item no.
6015239
Length
65
Width
40
Hole diameter
9
Colour
zinc
GMA M10 FS
Item no.
6015247
Length
65
Width
40
Hole diameter
11
Colour
zinc
