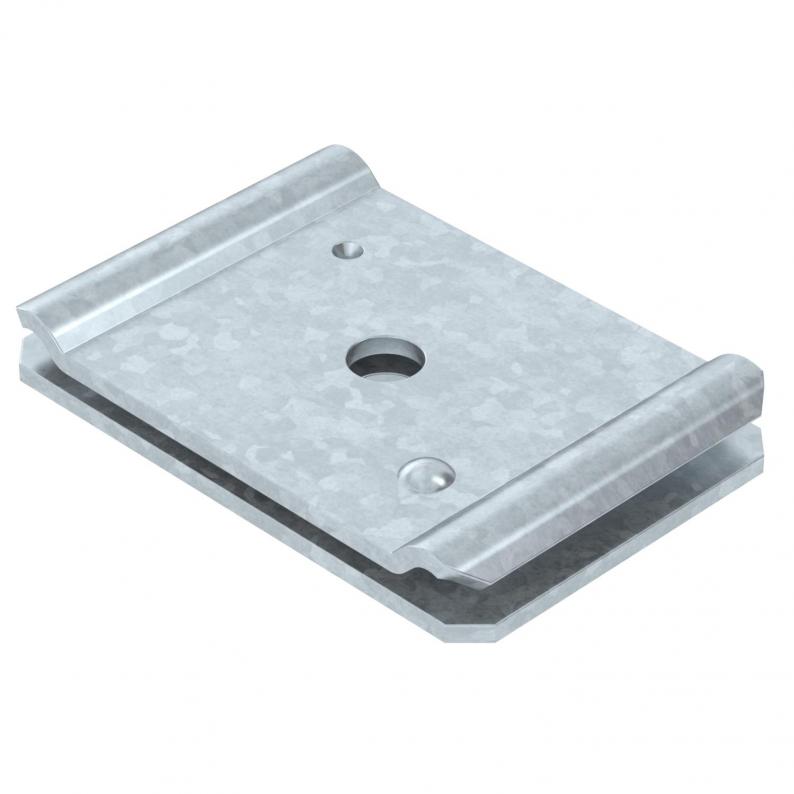

Centre suspension mesh cable tray FT

Centre suspension mesh cable tray FT

Type GMA M6 FT
|
Item no. 6015224
|
EAN 4012195649786
Show all variants
Item no. / Type
Length
Width
Hole diameter
Colour

Smallest selling unit: 25 piece

piece

Description

Two-part centre suspension of mesh cable trays.

When filling with cables, please ensure an even distribution. The maximum recommended mesh cable tray width is 200 mm.

  • Communautés Européennes, AB Yönetmelikleri uyarınca AB Uygunluk Beyanı
  • Kablo kanallarına ait orta askı braketi
  • Kafes kablo kanalı, kenar yüksekliği 55 mm
  • Kafes kablo kanalı, kenar yüksekliği 105 mm
  • Kafes kablo kanalı, kenar yüksekliği 35 mm
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

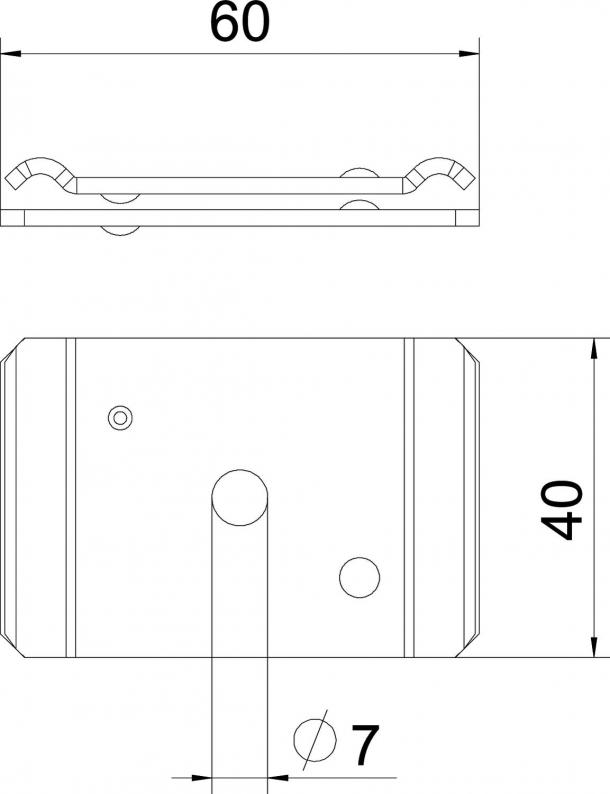

Dimensions

Length65 mm
Width40 mm
Height6,5 mm

Technical data

Maintain electrical functionsno
Ayarlanabilirno
Hole diameter7 mm
Version forSuspended
Boyut60x40
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 ayak izi (GWP) beşikten kapıya0,197 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

Hole diameter
GMA M6 FT
Item no.
6015224
Length
65
Width
40
Hole diameter
7
Colour
Çinko grisi
GMA M8 FT
Item no.
6015243
Length
65
Width
40
Hole diameter
9
Colour
Çinko grisi
GMA M10 FT
Item no.
6015255
Length
65
Width
40
Hole diameter
11
Colour
Çinko grisi
